Transformadores de corriente de núcleo partido

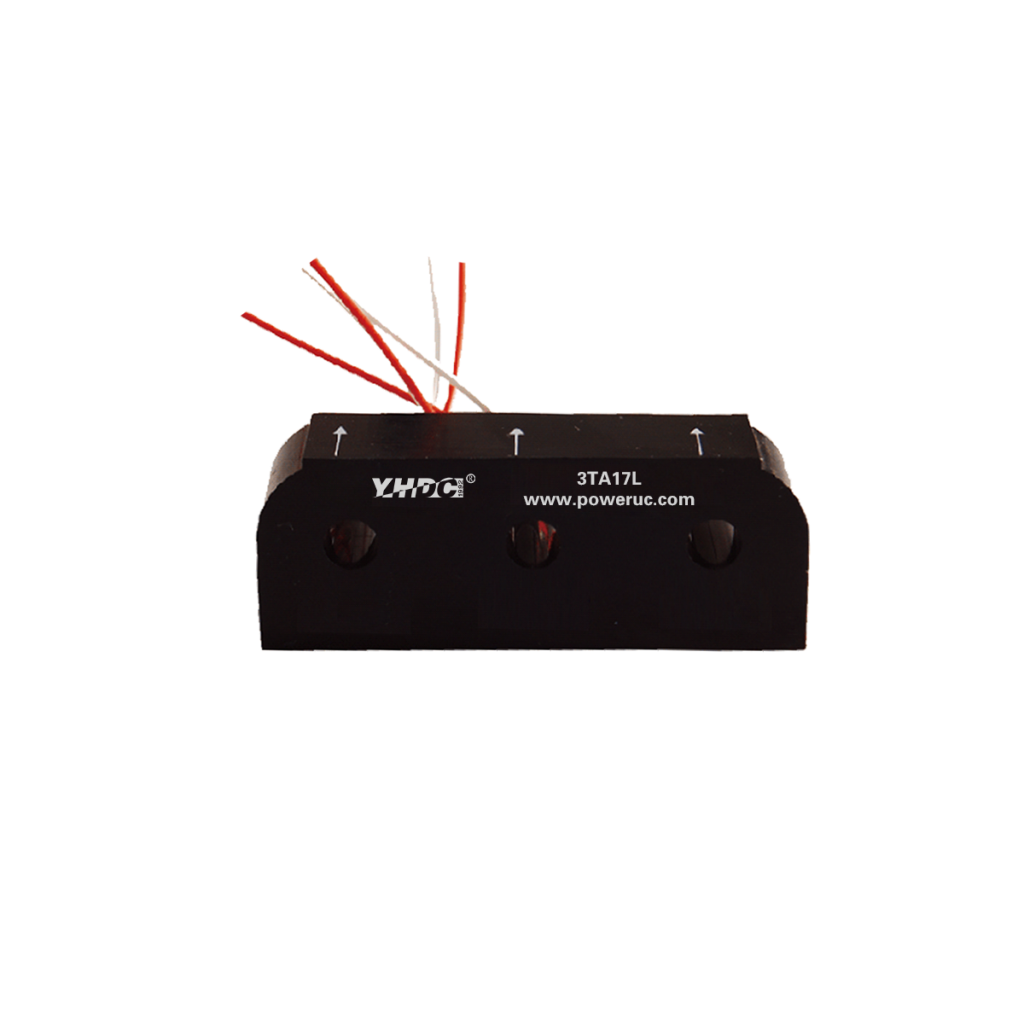

The 3TA17L series three-phase current transformers are specially designed for measuring three-phase currents, suitable for conductor diameters from 6.5mm to 40mm, and have internal space to accommodate circuit boards.
| Tipo de núcleo | Núcleo sólido |
| Core material | Nanocrystalline |
| Tipo de montaje | Colgado (en línea) |
| Size of the opening | 3×Φ6.5mm |
| Entrada nominal | 10A-40A |
| Tipo de salida | CA |
| Salida nominal | 10 mA |
| Dielectric Strength | AC 3.5KV/1min 50Hz (housing to output) |
| Frequency Range | 20Hz - 20KHz |
| Tipo de conexión | Cable, PCB |
