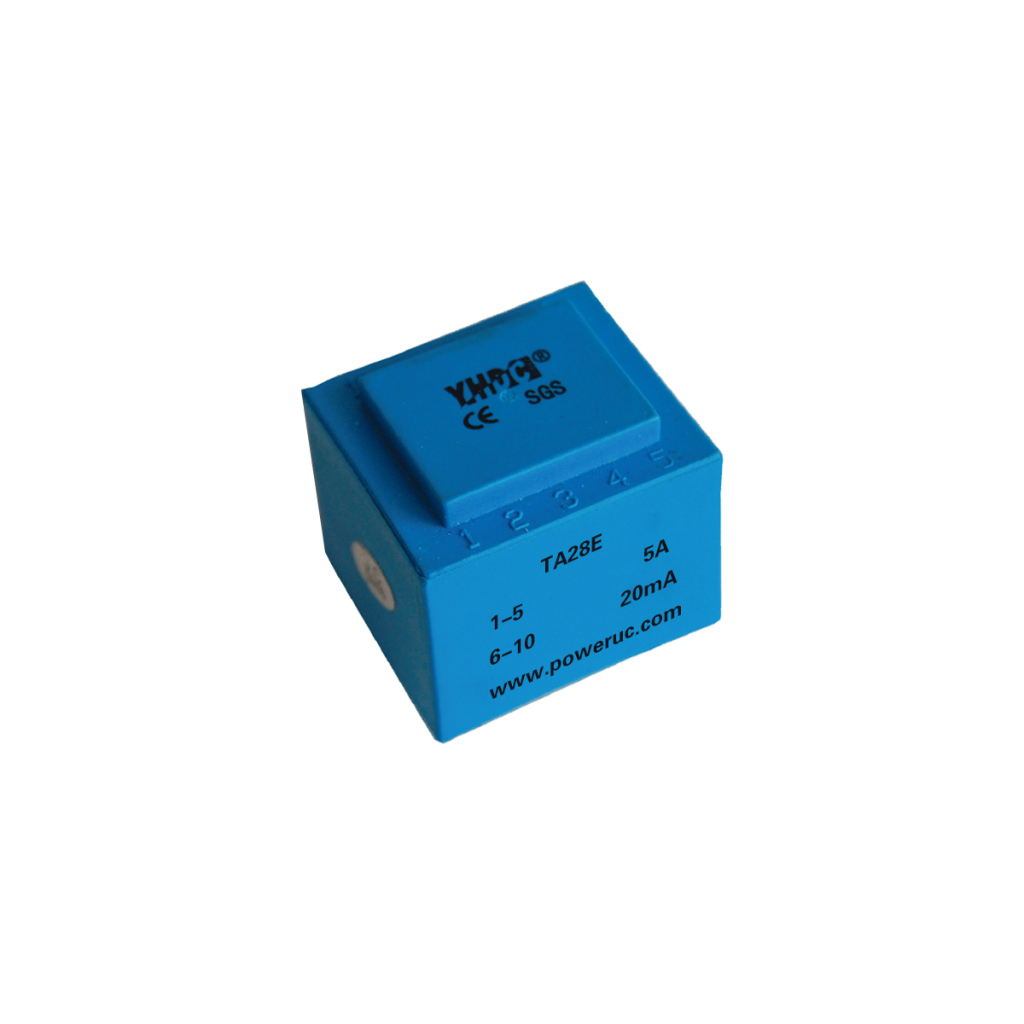

TA28E

Características:

Epoxy resin encapsulated, nanocrystalline core, small outline size, fully enclosed, electrical load remote monitoring, as the input signal of electric control system, lack of phase indicating, electrical energy measuring, motor monitoring.

Índice técnico:

Mounting type：PCB

Material of the core：Silicon steel sheet

Flame resistance：UL94-V0

Execution standard：GB20840-2014

Operating temperature：-20℃～+70℃

Storage temperature：-30℃～+80℃

Frequency range：50Hz-60Hz

Dielectric strength：3KV 50Hz 1min
