Transformadores de corriente de núcleo partido

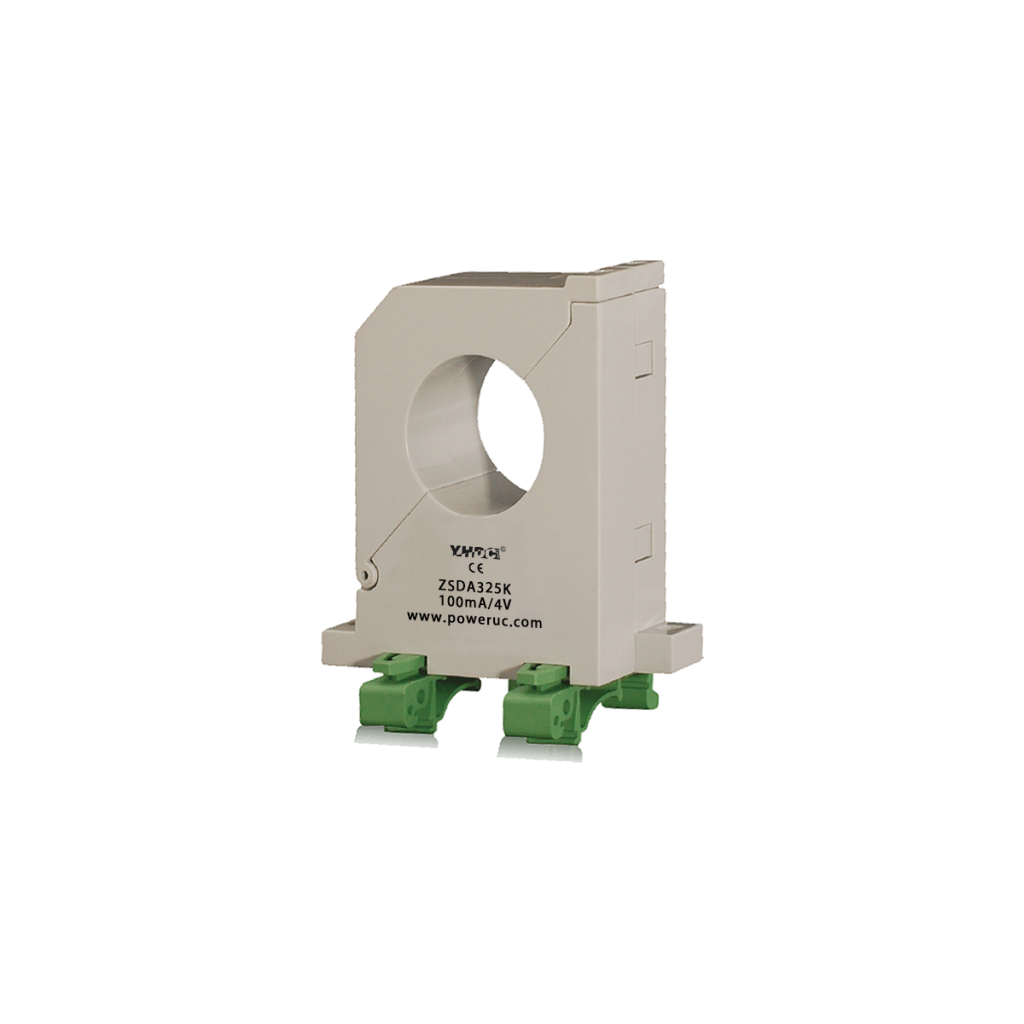

ZDA325K current sensor is based on magnetic modulation and compensation principle, and can be used for measurement of small DC current and leakage current, current difference between two or more conductors.
High accuracy
Easy installation
Wide current measuring range
Optimized response time
Low power consumption
High immunity to external interference
⌀32 mm sensing aperture for non-contact measurement
Din-rail installation
Isolation Monitoring of DC power systems and cable selection systems
Measurements of small DC currents and leakage currents etc.
| Tipo de núcleo | Núcleo partido |
| Tipo de entrada | DC |
| Tipo de salida | RMS |
| Entrada nominal | 10mA-2A |
| Salida nominal | ±4V |
| Tensión de alimentación | ±15V |
| Tipo de conexión | Terminal de tornillo |
| Precisión | 1% |
| Tipo de montaje | PCB |
| Diámetro de la ventana | Φ32.5mm |
