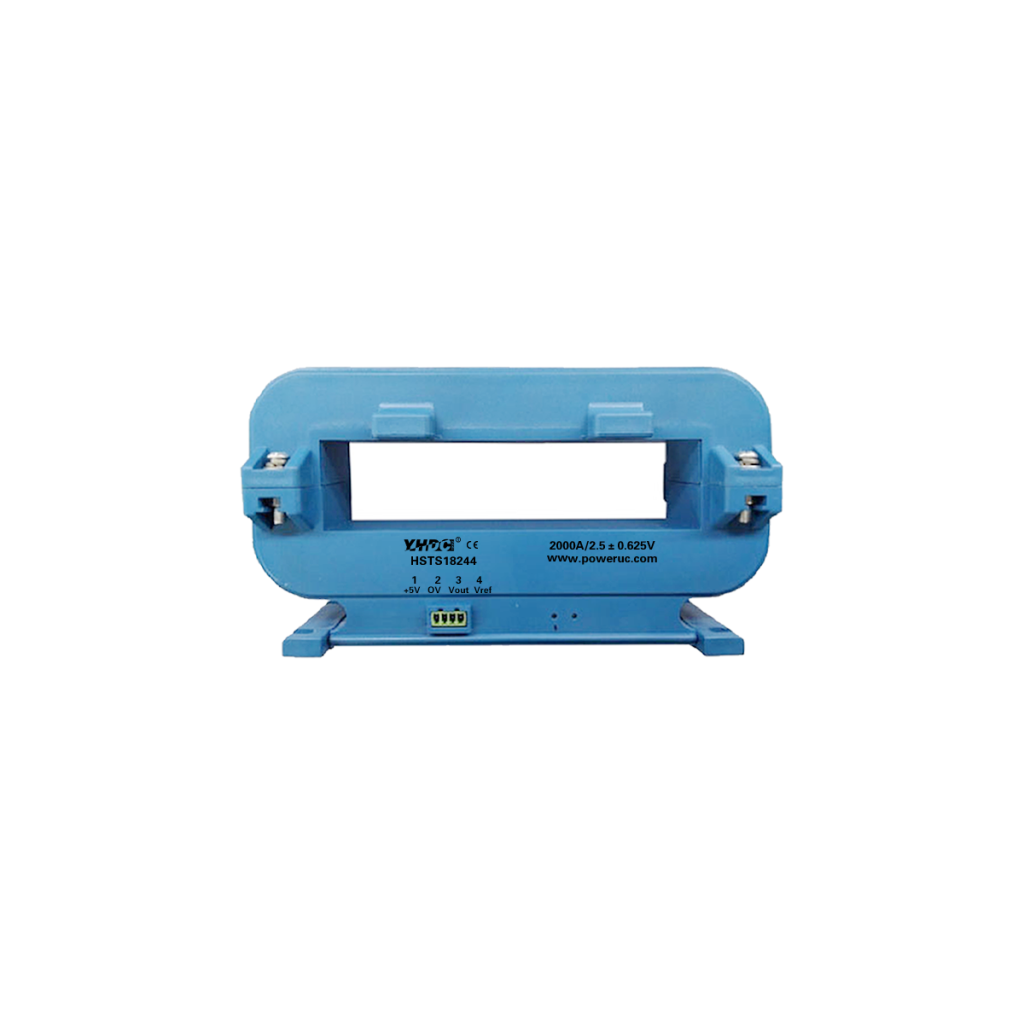

HSTS18244 DC/AC Split-core current sensor, applying with accurate laminating split-core technology and Open-Loop technology, has a strong durability and a good stability of error in low current and external vibration or shock.
It offers an instantaneous voltage output of ±4V and 2.5V±2V and 2.5±0.625V, with a bipolar power supply of ±15V and a single +5V supply.
One touch split core structure
Isolation measurement CATIII
Insulating plastic case recognized under UL94-V0
Complied with CE and RoHSIII
Low power consumption with high accuracy
Easy mounting by Split-core structure
No insertion losses
DC Immunity
Uninterruptible Power Supplies (UPS)
Monitoring and measuring Power supplies for Telecom
Switched Mode Power Supplies (SMPS)
Battery supplied applications
Chopper / Inverter monitoring
DC Power Meter
| Core Type | Split-Core |
| Input Type | AC, DC |
| Output Type | Instantaneous |
| Rated Input Current (RMS) | 2000A-5000A |
| Rated Output | 2.5±0.625V, 2.5±2V |
| Accuracy | 1% |
| Power Supply Voltage | 5V |
| Connection Type | Quick plug |
| Mounting Type | Plate |
Split‑core Hall effect sensor for AC and DC current measurement from 20A to 200A with ratiometric voltage output. Suitable for embedded and monitoring systems.
