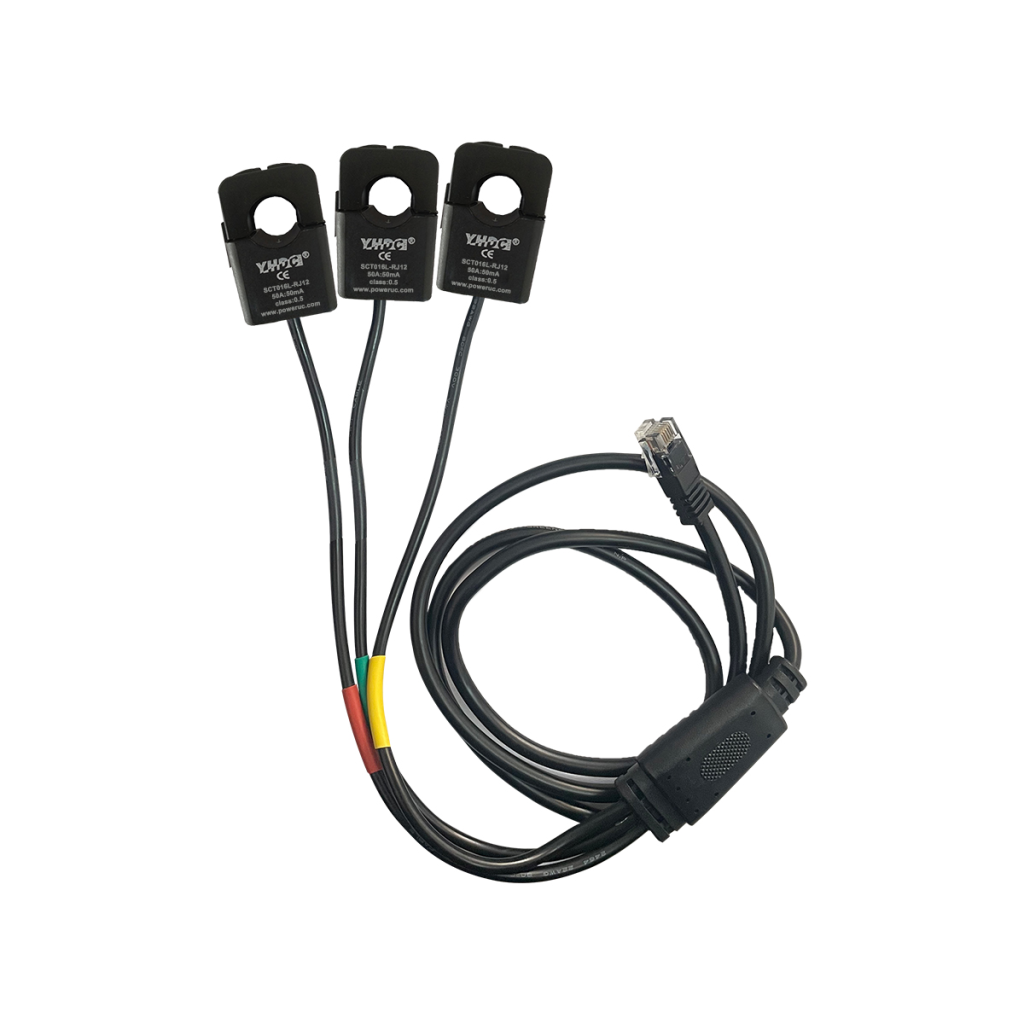

YHDC’s SCT016 series split core current transformers are compact, easy to open, and offer an accuracy of up to 0.5%. The clamp-on current transformers offer a variety of output options, such as RJ11, RJ45, and 3.5mm audio plugs. The advantage of a clamp-on current transformer is that it can be easily moved into place without disturbing or disconnecting the main cable it monitors.
Current measurement, monitoring and protection for electrical wiring and equipment,IoT energy monitoring systems.
Current and power measurement for electric motors,lighting,air compressor,heating and ventilation system,air-condition equipment and automation-control system.
| Core Type | Split-Core |
| Core material | Ferrite |
| Mounting Type | Free Hanging(In-Line) |
| Window Diameter | Φ16mm |
| Rated Input | 10A, 50A, 100A, 120A |
| Output Type | AC |
| Rated Output | 10mA-0.1A |
| Accuracy | 0.2%, 0.5% |
| Dielectric Strength | AC 3.5KV/1min 50Hz (housing to output) |
| Frequency Range | 50Hz - 1KHz |
| Connection Type | RJ12 |
