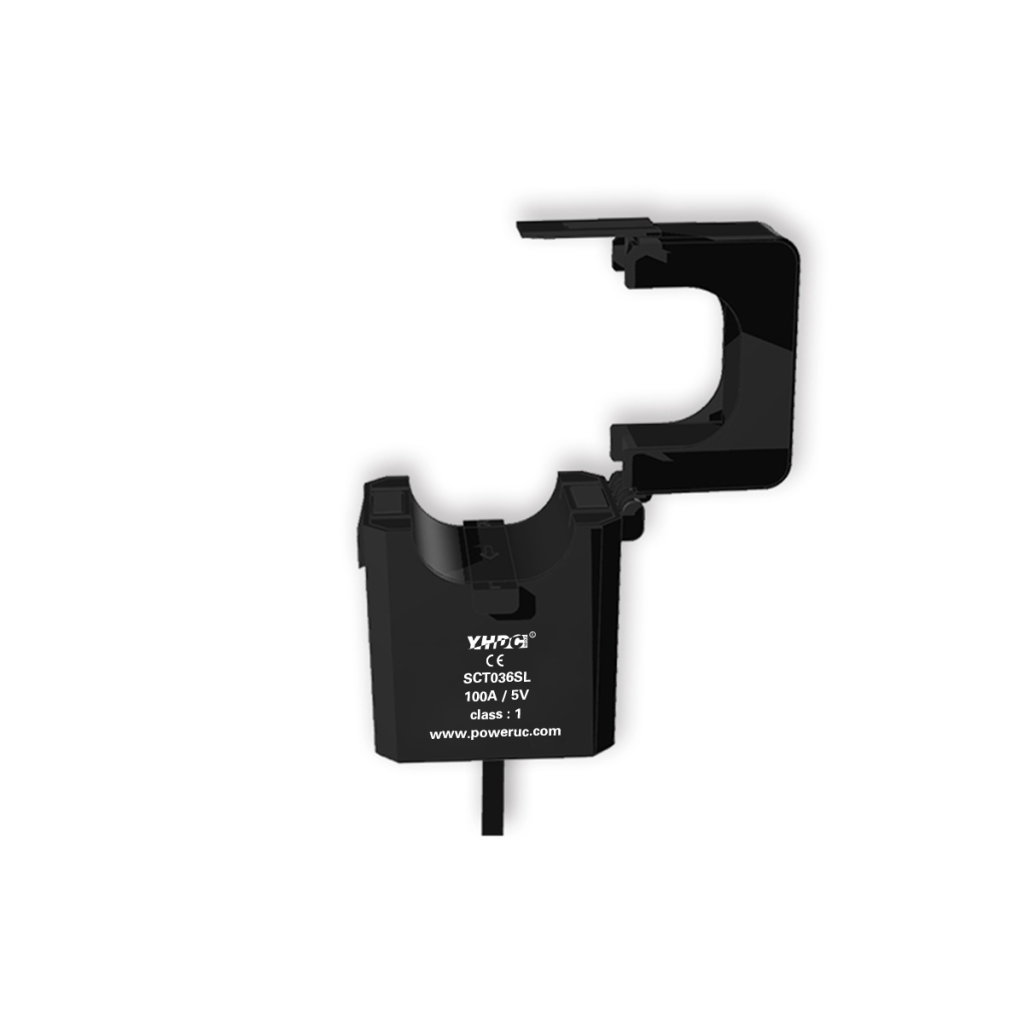

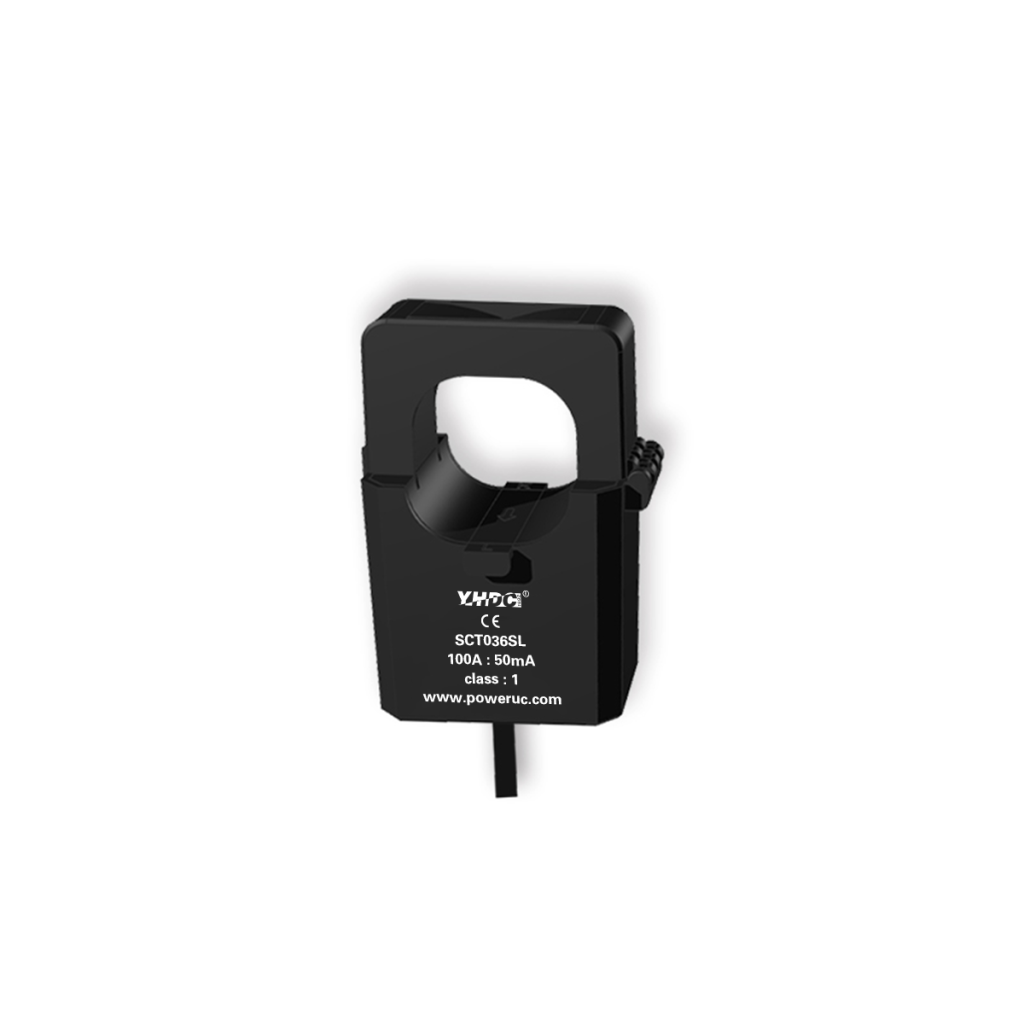

SCT036SL 600A split core current transformers

Introduce:

YHDC’s SCT036 series split core current transformers feature a patented design, are compact and easy to open, and can achieve up to 0.2% accuracy. The clamp-on current transformers offer a variety of output options, such as RJ11, RJ45, and 3.5mm audio plugs. The advantage of a clamp-on current transformer is that it can be easily moved into place without disturbing or disconnecting the main cable it monitors.

Characteristic:

• Safety lock buckle
• Easy installation
• Cable output
• ⌀36 mm sensing aperture for non-contact measurement

Technical index:

• Mounting type: Free hanging (In-Line)
• Material of core: Laminated silicon steel
• Applicable standards: IEC 61869-2
• Operating temperature: -25℃ ~ +60℃
• Storage temperature: -30℃ ~ +90℃
• Frequency range: 50Hz-60Hz
• Dielectric strength: Input (bare conductor)/Output AC 800V/1min 50HzOutput/Housing AC 3.5KV/1min 50Hz

Applications:

Current measurement, monitoring and protection for electrical wiring and equipment,IoT energy monitoring systems.
Current and power measurement for electric motors,lighting,air compressor,heating and ventilation system,air-condition equipment and automation-control system.
