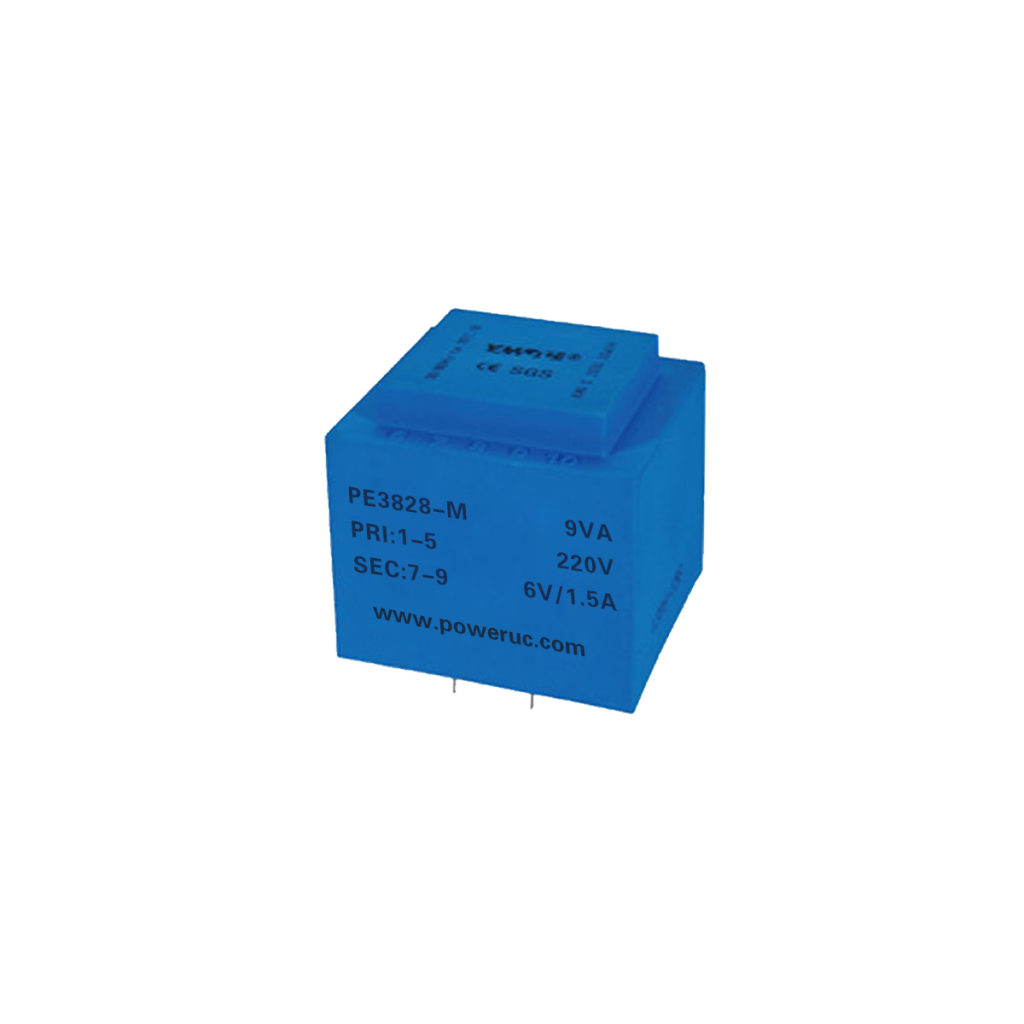

PE3828-M

VISIÓN GENERAL

Los transformadores PCB se moldean al vacío y, por tanto, tienen una tensión de prueba muy alta.

Used on the PCB, they provide electrical isolation as a power transformer or safe electrical isolation of the input and output sides as an isolating or safety transformer.

YHDC’s wide range of standard solutions provides the ideal supply for your circuit, from PCB transformers with absolute or limited short-circuit protection or those that are not short-circuit proof.

Minimal design size with high power output Double input and output voltage for series or parallel connectionsPower output 0.35 VA to 60 VA

Características:

1.High-temperature epoxy resin encapsulation is used under vacuum state, with high voltage resistance and service life of up to 20 years.
2. High-quality H18 silicon steel sheet, low temperature rise and high efficiency.
3. PBT engineering plastic, no deformation at 120 degrees, flame retardant and environmentally friendly.
4.Easy installation, low noise, strong shock resistance, waterproof and moisture-proof.
5. Conductor material: copper
6. Comply with CE, ROHS, REACH certification
