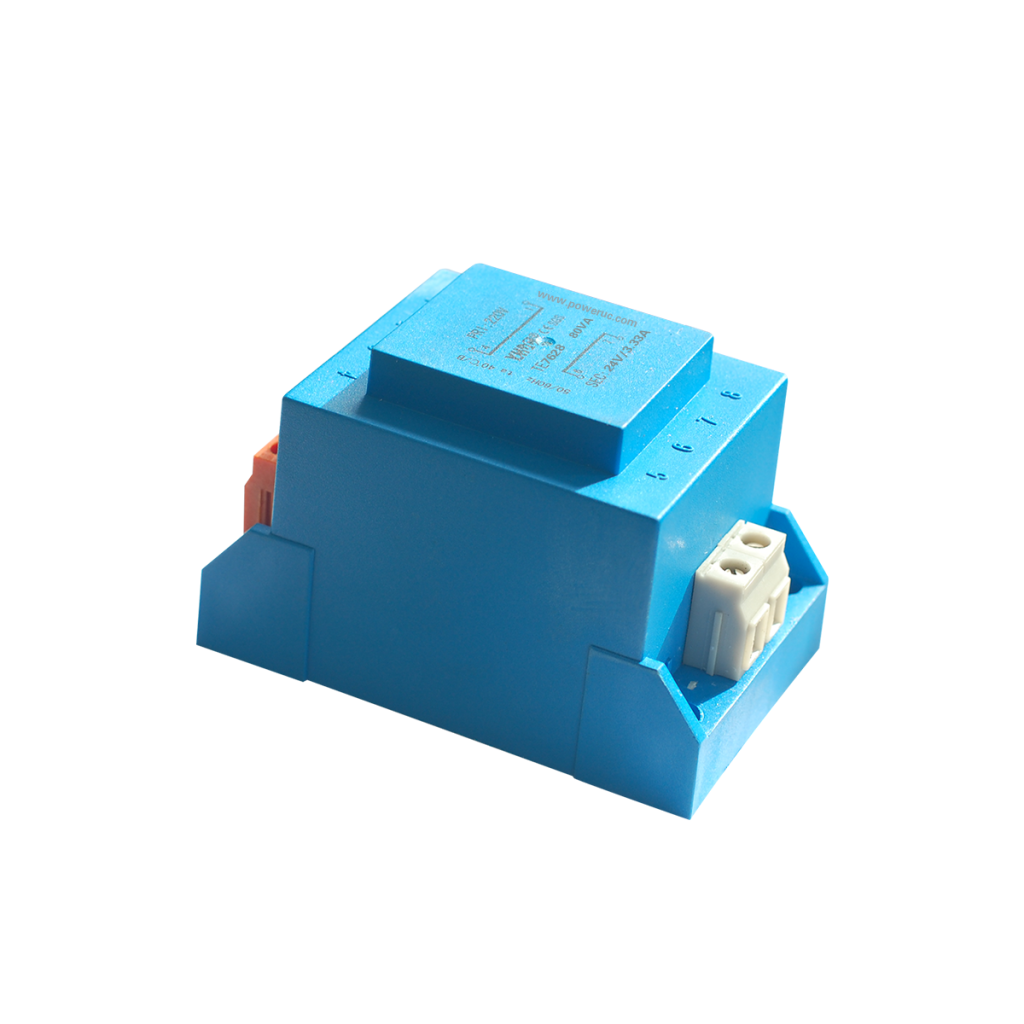

TE7628

VISIÓN GENERAL

TE series transformers are vacuum-molded, providing exceptionally high proof voltage. The use of terminals for connections enhances installation flexibility and convenience.

These transformers offer electrical isolation as a power transformer, or they can provide safe electrical separation between the input and output sides, functioning as isolating or safety transformers.

YHDC’s extensive range of standard solutions ensures you have the perfect supply for your circuit, including PCB transformers with either absolute or limited short-circuit protection or those that do not offer short-circuit protection.

Minimal design size with high power output Double input and output voltage for series or parallel connections Power output 0.35 VA to 120 VA

Características:

1. Vacuum epoxy potting，100℃/6 h high temperature aging, with high voltage resistance and service life of up to 20 years.

2. Chapa de acero al silicio H18 de alta calidad, bajo aumento de temperatura y alta eficiencia.

3. Plástico de ingeniería PBT, sin deformación a 120 grados, ignífugo y respetuoso con el medio ambiente.

4. Fácil instalación, bajo nivel de ruido, fuerte resistencia a los golpes, impermeable y a prueba de humedad.

5. Material del conductor: cobre

6. Cumple con la certificación CE, ROHS, REACH
