Split Core Current Transformers

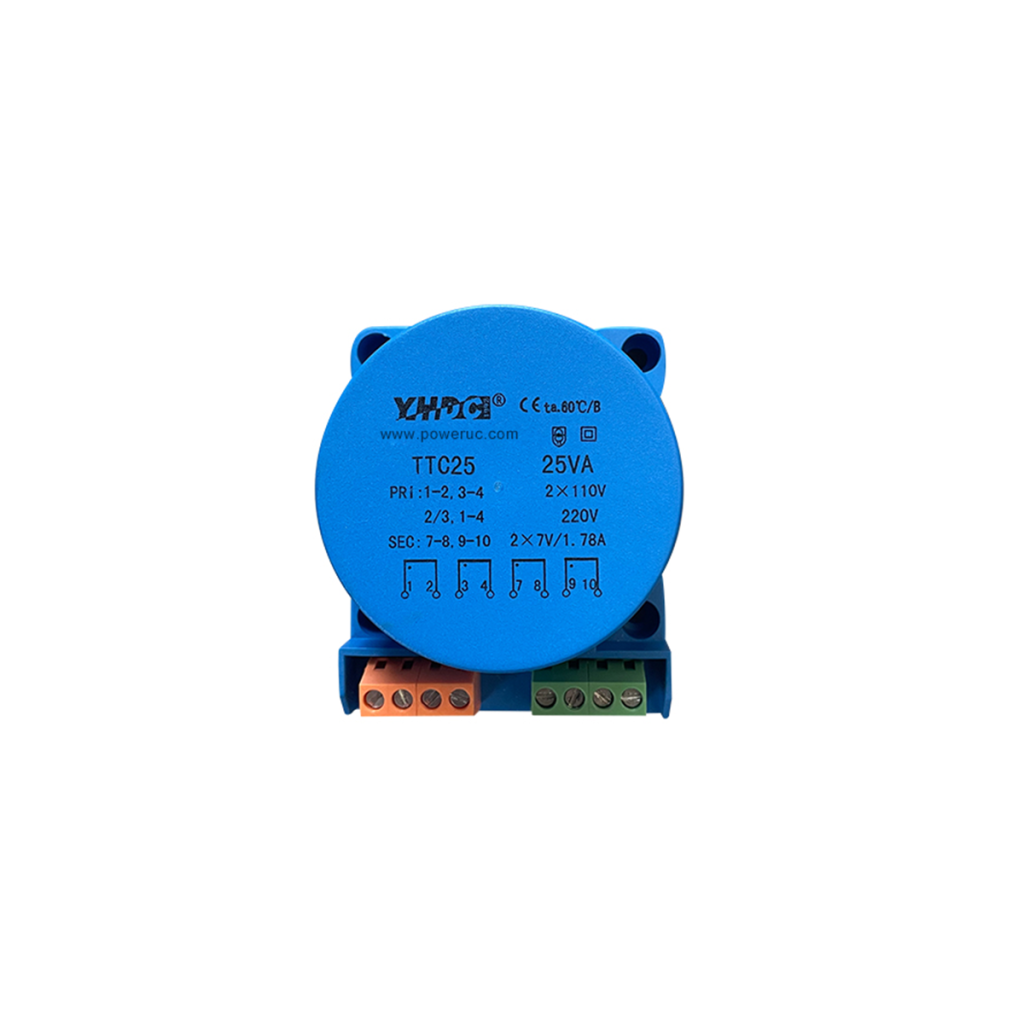

The TTC Series toroidal transformers use terminals and are designed to produce minimal leakage fields. This means that surrounding components remain free of interference. The transformers have a very low profile, which is an important advantage when used as a power, safety or isolating transformer in difficult installation conditions.
As safety or isolating transformer
Very low design height
Space-saving usage
Power output:15 VA to 500 VA
| Power | 25VA |
| Rated Input | 110V×2, 115V×2, 120V×2 |
| Voltage Regulation | ≤17% |
| Operation temperature | -30℃～+60℃ |
| Rated Output | 7V×2-22V×2 |
| Features | Toroidal |
| Core Type | Toroidal |
| Connection Type | Screw Terminal |
| Dielectric strength | Pri./Sec. 4KV 50Hz 1min |
| Mounting Type | Plate |
| Temperature rise | ≤35℃ |
| No-load Loss | ≤0.5W |
