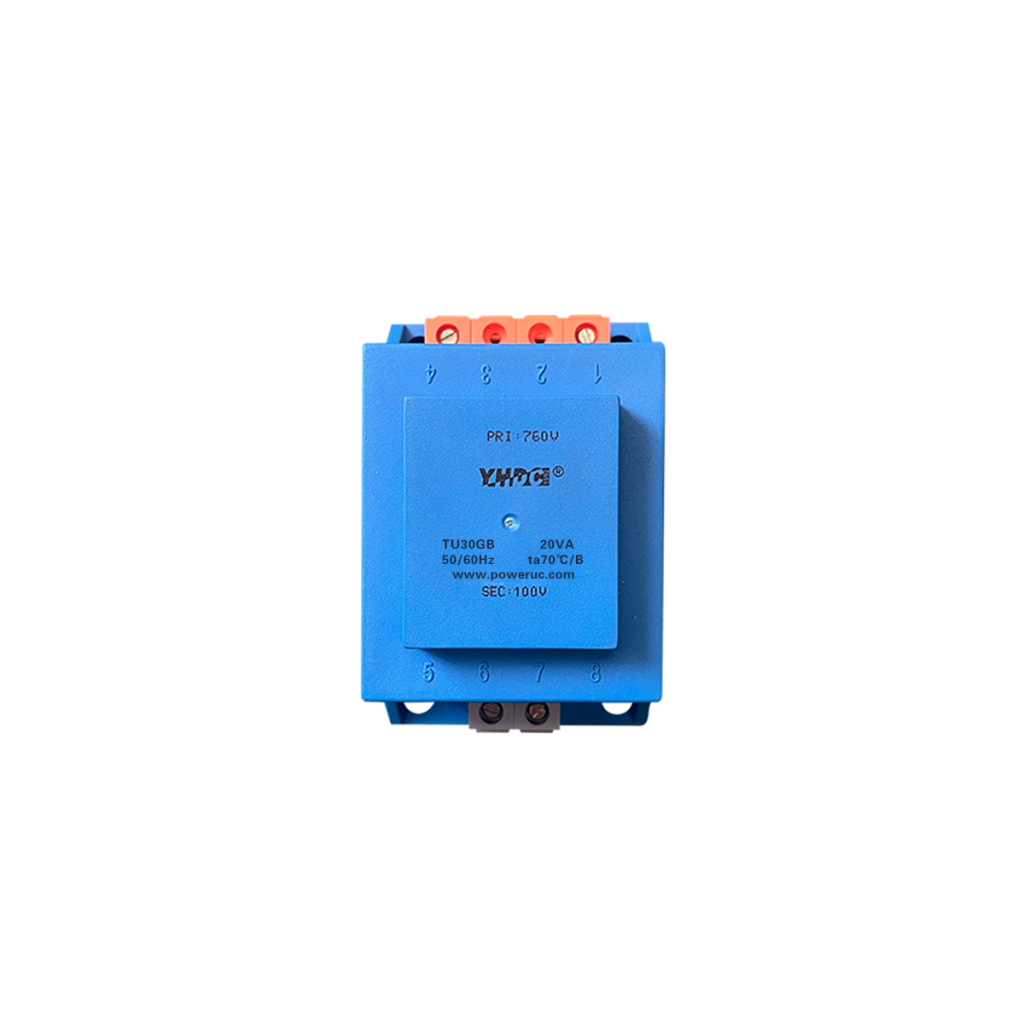

TU30GB

Transformadores de potencia

Plate mounting，High voltage input.

Aplicación del producto

• Power Industry
• Oil industry
• Military engineering
• Chemical Industry
• Wind power generation

Ventajas del producto

• Good stability
• Low noise
• Power foot
• High withstand voltage
• Small no-load current

Características del producto

• single crystal copper enameled wire
• High quality iron core-H18/0.35(annealing)
• PBT engineering plastics，Environmental protection，Flame retardant，120 degrees without deformation
• Vacuum potting，100 ° C / 6 hours high temperature aging，20 years of life，High electric strength
• Reasonable structure，Easy to install，Low noise，Strong earthquake resistance，Sealed moisture

Typical technical index:

• Material of core——Silicon steel sheet
• Insulation grade： B grade（130℃）
• Operation temperature——-30℃～+40℃
• Frequency range——50Hz～60Hz
• Resistencia justa： con UL94-V0
• Form test：Pri./Sec.15KV max AC/1min 20mA 500V AC/1min 5mA(The samples for it is destructive experiment of samples, not recommended for normal use)
• Factory test：Pri./Sec.15KV AC/1s 20mA，500V AC/1s 5mA
