TRS02

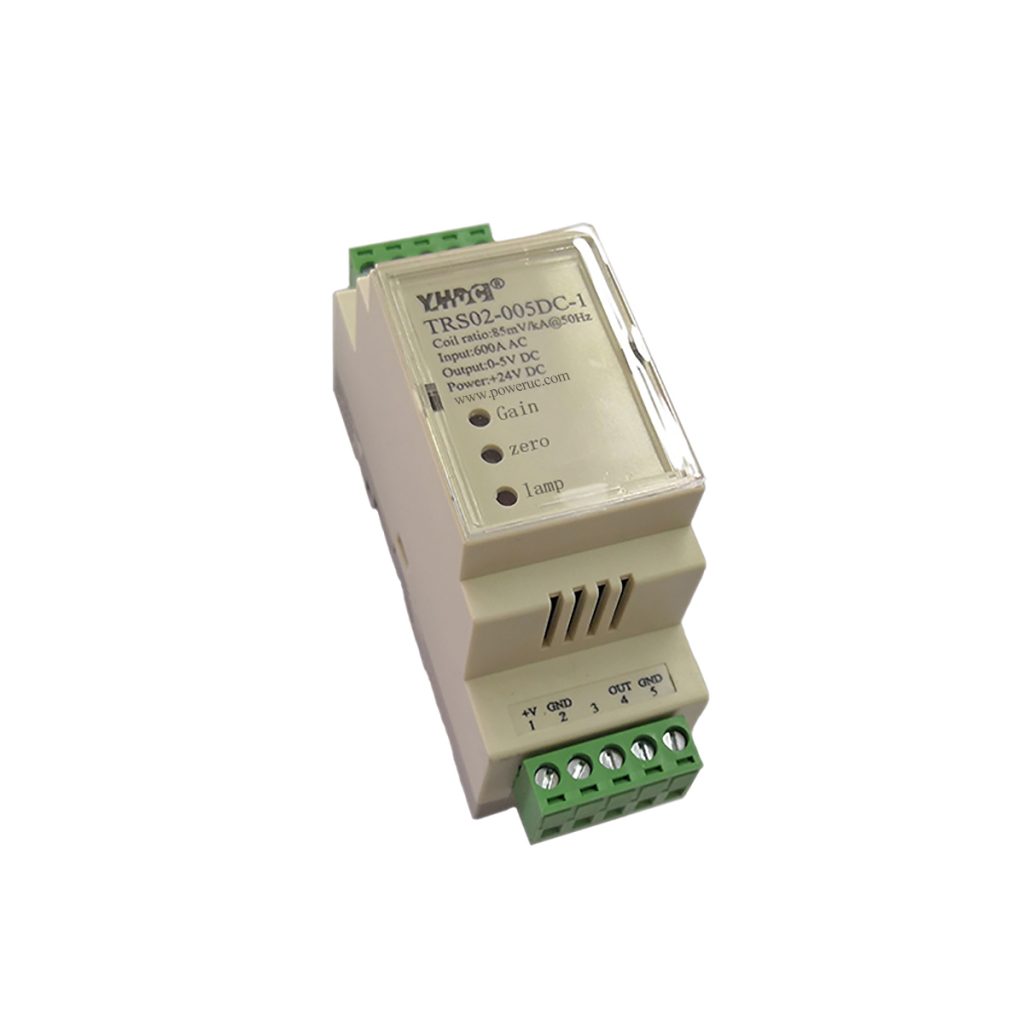

TRS02 true rms output Rogowski coil current sensor

The combination of the rogowski coil and integrator can achieve 90° phase shift compensation and frequency equalization, so that the Rogowski coil output is in phase with the primary current and is frequency independent to adapt to more application scenarios. TRS02 series  integrator can output industry standard true rms 4-20mA, 0-20mA, 0-5V, 0-10V, ideal for process control, status alarm or system monitoring. Commonly used with SCADA systems, PLCS, data loggers and protection devices.

Features include:

• Fully isolated measurement
• 4-20mA True RMS output
• Insulated plastic housing, UL94-V0
• Certified CE and RoHSIII compliant
• DIN rail mounting
• Small size

Aplicaciones:

• SCADA systems
• PLC
• Data loggers
• Protection devices

Benefits of Rogowski Coils

Rogowski Coil Current Transformers are designed for precision AC current measurement in power metering or general energy monitoring applications. The flexible Rogowski Coil provides a versatile solution for crowded electrical panels where rigid current transformers simply cannot fit. Much like split core current transformers, the user-friendly locking connector opens for easy integration into existing panels without disconnecting wires. Available in a variety of sizes to fit any application.
