Transformadores de corriente de núcleo partido

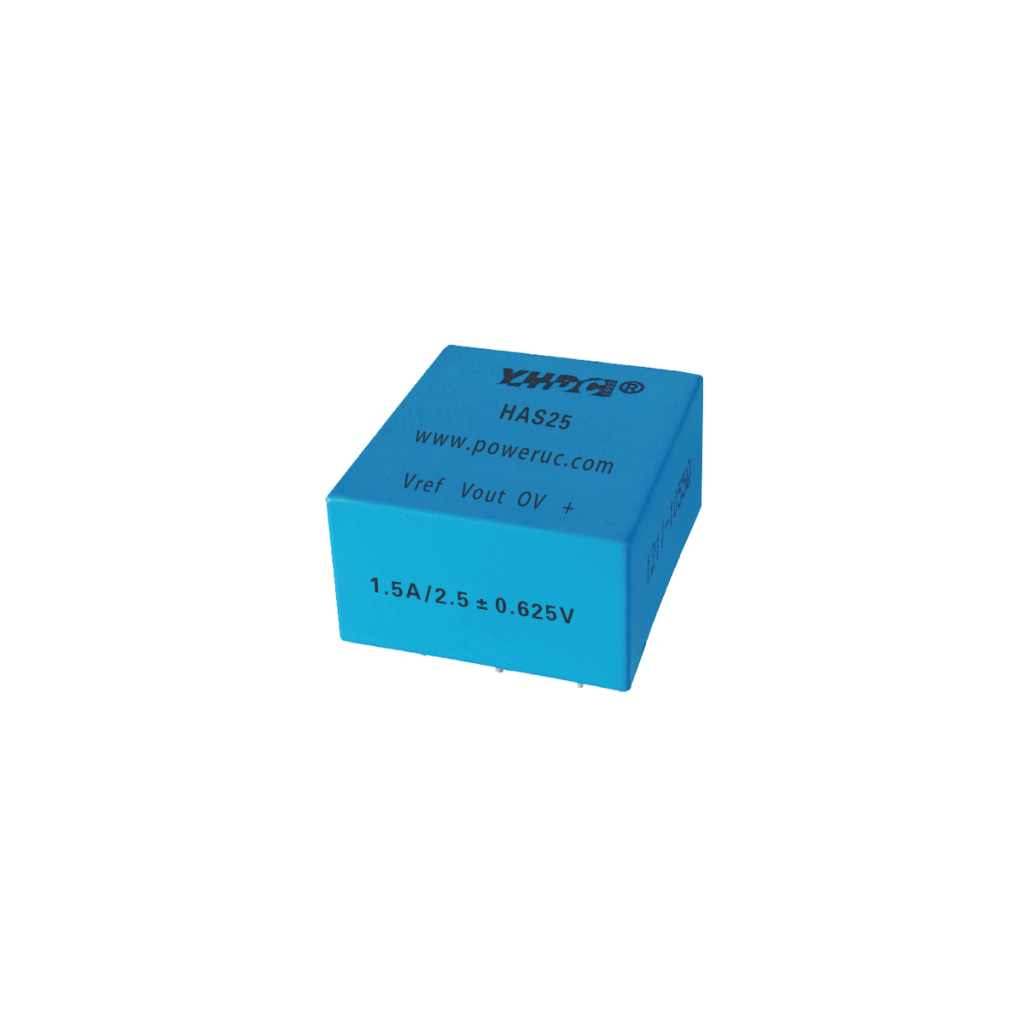

HAS25 Closed loop (compensated) current transducer using the Hall effect，For the electronic measurement of currents: DC, AC, pulsed, mixed with galvanic isolation between the primary circuit (high power) and the secondary circuit (electronic circuit).
Closed loop (compensated) current transducer using the Hall effect
Insulating plastic case recognized according to UL 94-V0
Compact design for PCB mounting
Incorporated measuring busbar
Excellent accuracy
Very good linearity
Low temperature drift
Optimized response time
Wide frequency bandwidth
No insertion losses
High immunity to external interference
Current overload capability.
AC variable speed drives and servo motor drives
Static converters for DC motor drives
Battery supplied applications
Uninterruptible Power Supplies (UPS)
Switched Mode Power Supplies (SMPS)
Power supplies for welding applications
| Tipo de núcleo | Núcleo sólido |
| Tipo de entrada | CA, CC |
| Tipo de salida | Instantáneo |
| Corriente nominal de entrada (RMS) | 0,25A-5A |
| Salida nominal | 2,5±0,625V, 1,65V±0,625V |
| Precisión | 1% |
| Tensión de alimentación | +5 V, +3,3 V |
| Tipo de conexión | Alfileres |
| Tipo de montaje | PCB |
