SCR Trigger Transformer

Product	Name
	KMB472
	KMB-05
	KMB-02
	KMB-01
	KMB-00
	KMB255
	KMB321
	KMB239
	KMB418
	KMB518

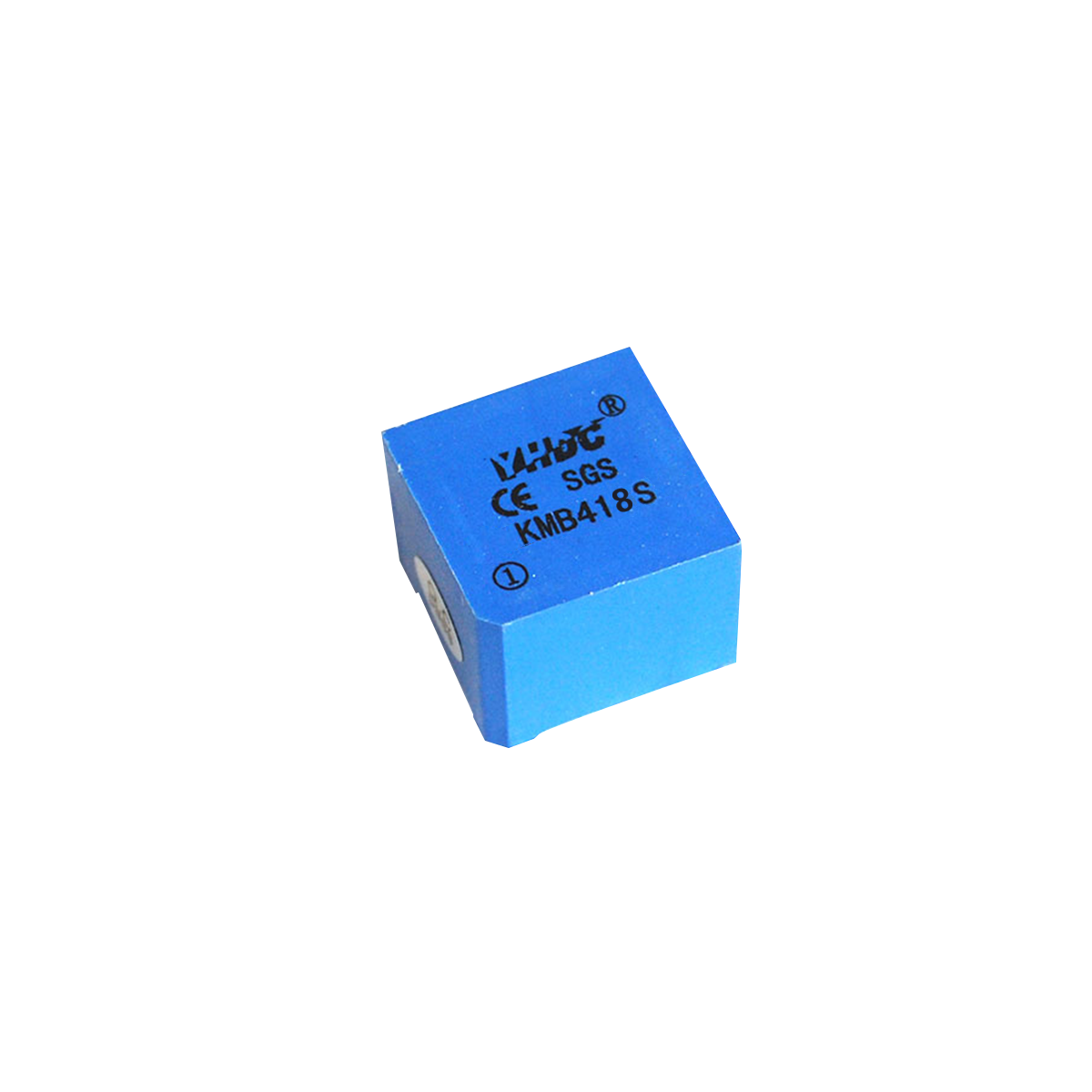

	KMB418S
	KMB529
	KMB519
	KMB419S
	KMB471
	KMB229
	KMB3081
	KSR89
	KMG96-26
	KMG4950
	KMG89
	KMG191

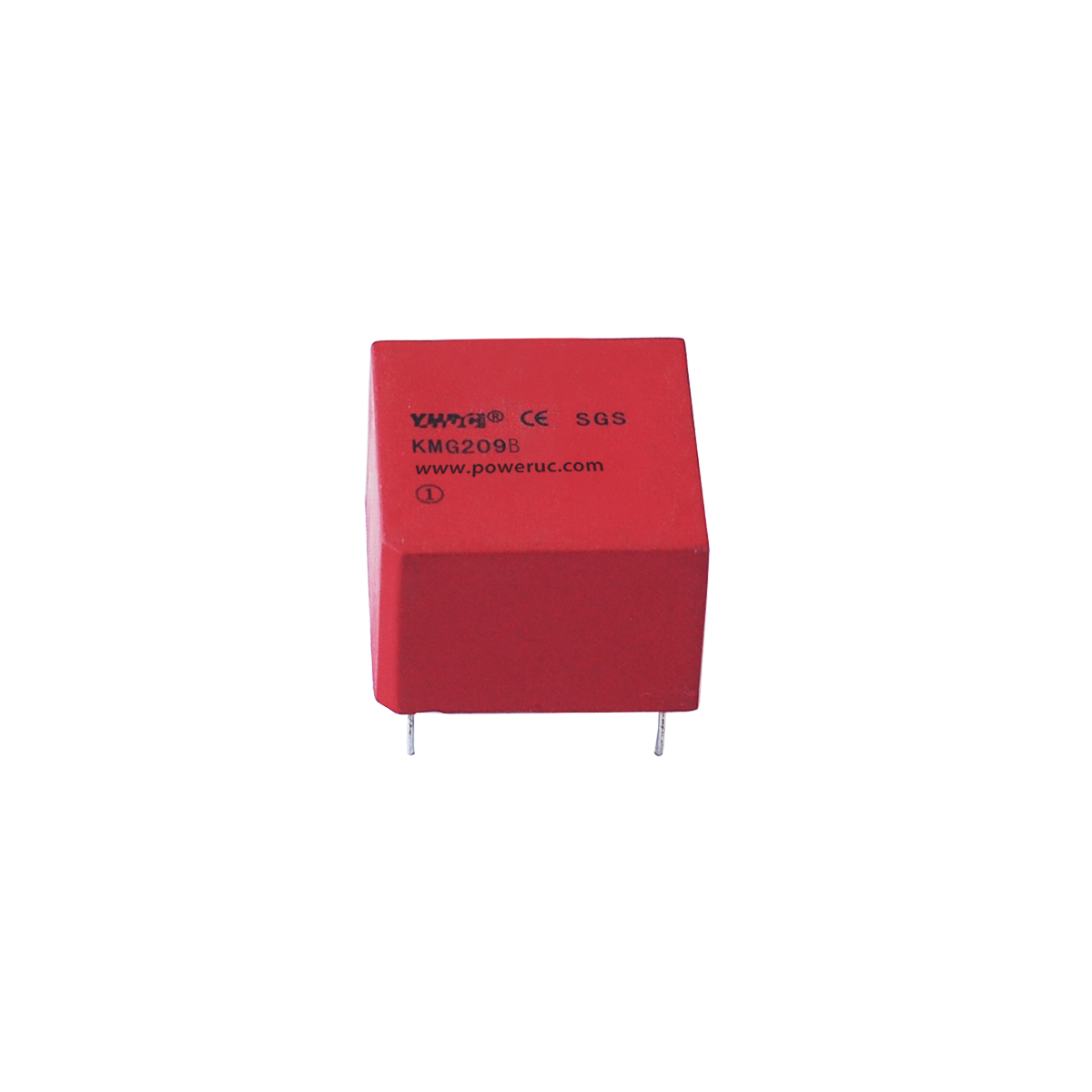

	KMG209
	KMG288B
	KMG288D

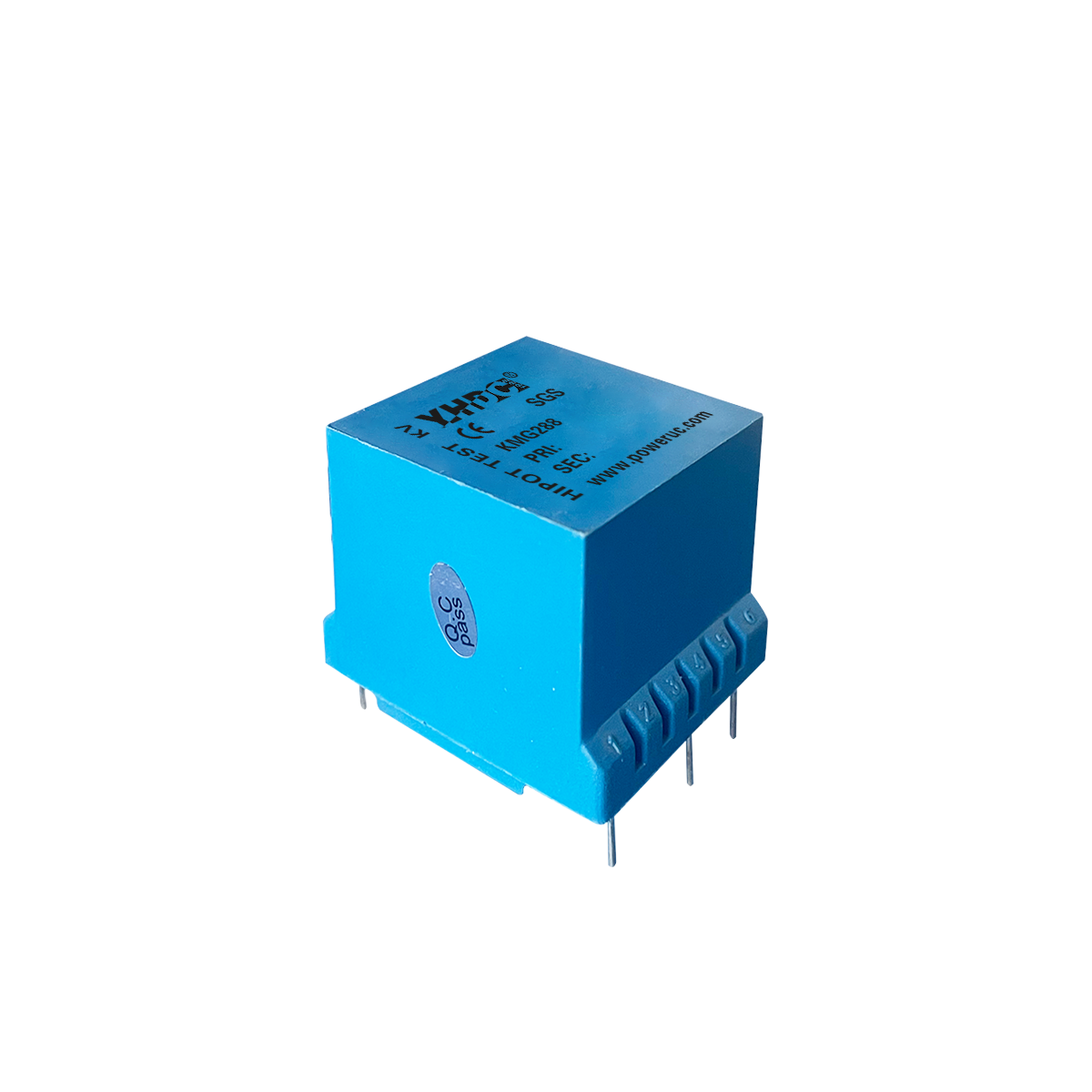

	KMG288
	KMG308
	KMG208
	KMG35

Turns Ratio	Dielectric Strength	Inupt voltage(V)	Output voltage(V)	Primary Resistance	Secondary Resistance	Primary Inductance	Secondary Inductance	Work Frequency	Load Impedance
1:1, 2:1, 3:1, 1:1:1, 2:1:1, 3:1:1, 2.3:1	3.5KV 50Hz 1min	8V, 12V, 15V, 24V	≥4.5V, ≥5.5V, ≥11V, ≥10.4V, ≥5Vx2					1KHz～10KHz	20Ω, 100Ω, 1000Ω
1:1, 2:1, 3:1, 1:1:1, 2:1:1, 3:1:1,	5KV 50Hz 1min	8V, 15V, 24V	≥6.5V, ≥5.5V					50Hz～1000Hz	7Ω
1:1, 2:1, 3:1, 1:1:1, 2:1:1, 3:1:1,	3KV 50Hz 1min	8V, 15V, 24V	≥6.4V, ≥6V					50Hz～1000Hz	20Ω
1:1, 2:1, 3:1, 1:1:1, 2:1:1, 3:1:1,	3KV 50Hz 1min	8V, 15V, 24V	≥6V, ≥5.5V					50Hz～1000Hz	20Ω
1:1, 2:1, 3:1, 1:1:1, 2:1:1, 3:1:1,	3KV 50Hz 1min	8V, 15V, 24V	≥6V, ≥5V					50Hz～1000Hz	20Ω
1:1, 2:1, 3:1, 1:1:1, 2:1:1, 3:1:1,	4KV 50Hz 1min	8V, 15V, 24V	≥6V, ≥5V, ≥5.5Vx2, ≥5Vx2					1KHz～20KHz	20Ω
1:1	1.5KV 50Hz 1min	8V	≥7V					10KHz～200KHz	100Ω
1:1	1.5KV 50Hz 1min	8V	≥6.5V					10KHz～200KHz	100Ω
1:1, 2:1, 3:1, 1:1:1, 2:1:1, 3:1:1,	5KV 50Hz 1min	8V, 15V, 24V	≥5V, ≥5.8V, ≥6.4V, ≥6.2Vx2, ≥5.6Vx2, ≥6Vx2					1KHz～50KHz	7Ω
1:1, 2:1, 3:1, 1:1:1, 2:1:1, 3:1:1,	5KV 50Hz 1min	8V, 15V, 24V	≥5.1V, ≥5.8V, ≥6.9V, ≥6Vx2, ≥6.2Vx2					1KHz～50KHz	7Ω
1:1, 2:1, 3:1, 1:1:1, 2:1:1, 3:1:1,	5KV 50Hz 1min	8V, 15V, 24V	≥4.6V, ≥5.8V, ≥6.4V, ≥4.6Vx2, ≥5.6Vx2, ≥6Vx2					1KHz～50KHz	7Ω
1:1, 2:1, 3:1, 1:1:1, 2:1:1, 3:1:1,	5KV 50Hz 1min	8V, 15V, 24V	≥5.5V, ≥6V, ≥7V, ≥4.5Vx2, ≥6Vx2, ≥6.5Vx2					1KHz～50KHz	7Ω
1:1, 2:1, 3:1, 1:1:1, 2:1:1, 3:1:1,	5KV 50Hz 1min	8V, 15V, 24V	≥6V, ≥5.5V, ≥5Vx2					1KHz～50KHz	7Ω
1:1, 2:1, 3:1, 1:1:1, 2:1:1, 3:1:1,	5KV 50Hz 1min	8V, 15V, 24V	≥5V, ≥5Vx2					1KHz～50KHz	7Ω
1:1, 2:1, 3:1	2.5KV 50Hz 1min	8V, 15V, 24V	≥5.7V, ≥5.5V					100Hz～1KHz	100Ω
1:1, 2:1, 3:1, 1:1:1, 2:1:1, 3:1:1	5KV 50Hz 1min	8V, 15V, 24V	≥5V, ≥5.8V, ≥6.8V, ≥5.2Vx2, ≥5.7Vx2, ≥6.3Vx2					1KHz～10KHz	7Ω
1:1, 2:1, 3:1	3KV 50Hz 1min	8V, 15V, 24V	≥6V					1KHz～10KHz	6Ω
3:1	15KV 50Hz 1min	24-48V	≥4-8V					20Hz～1KHz
54:443	15KV 50Hz 1min	220V	1.8KV	0.6Ω	9.9Ω	6.2H	360H	50Hz～60Hz
1:1, 2:1, 3:1	30KV 50Hz 1min	10V, 15V, 24V	≥8V, ≥7V, ≥7.4V					1KHz～20KHz	7Ω
3:1	15KV 50Hz 1min	24V	≥7.8V					20Hz～1KHz
1:1, 2:1, 3:1	10KV 50Hz 1min	8V, 15V, 24V	≥6V, ≥7.2V, ≥7.5V					50Hz～1000Hz	100Ω
1:1, 2:1, 3:1	10KV 50Hz 1min	8V, 15V, 24V	≥3.3V, ≥3V, ≥4.1V					1KHz～6KHz	7Ω
1:1, 2:1, 3:1	15KV 50Hz 1min	8V, 15V, 24V	≥6.2V, ≥6V, ≥6.8V					1KHz～10KHz	7Ω
1:1, 2:1, 3:1	15KV 50Hz 1min	8V, 15V, 24V	≥6.2V, ≥6V, ≥6.8V					1KHz～10KHz	7Ω
1:1, 2:1, 3:1	15KV 50Hz 1min	8V, 15V, 24V	≥6.2V, ≥6V, ≥6.8V					1KHz～10KHz	7Ω
1:1, 2:1, 3:1	15KV 50Hz 1min	8V, 16V, 24V	≥6.6V, ≥6.5V, ≥6.3V					1KHz～10KHz	7Ω
1:1, 2:1, 3:1	15KV 50Hz 1min	8V, 16V, 24V	≥5V, ≥5.5V, ≥6.2V					20Hz～1KHz	7Ω
1:1, 2:1, 3:1	20KV 50Hz 1min	8V, 15V, 24V	≥6V, ≥6.8V, ≥7.2V					1KHz～20KHz	7Ω
