SMD5046 - Turns Ratio
- 1:1, 2:1, 3:1, 1:1:1, 2:1:1, 3:1:1,
- Dielectric Strength
- 3.5KV 50Hz 1min
- Inupt voltage(V)
- 6V, 12V, 18V
- Output voltage(V)
- ≥ 5, ≥5 *2
- Work Frequency
- 30KHz～200KHz
| Turns Ratio | Primary Min.Volt-time Product,Et(V us) | Dielectric Strength | Inupt voltage(V) | Output voltage(V) | Primary Resistance | Secondary Resistance | Primary Inductance | Secondary Inductance | Work Frequency | Load Impedance |
|---|---|---|---|---|---|---|---|---|---|---|
| 1:1, 2:1, 3:1, 1:1:1, 2:1:1, 3:1:1, | - | 3.5KV 50Hz 1min | 6V, 12V, 18V | ≥ 5, ≥5 *2 | 30KHz～200KHz | |||||
| 1:1, 2:1, 3:1, 1:1:1, 2:1:1, 3:1:1, 2.3:1 | 3.5KV 50Hz 1min | 8V, 12V, 15V, 24V | ≥4.5V, ≥5.5V, ≥11V, ≥10.4V, ≥5Vx2 | 1KHz～10KHz | 20Ω, 100Ω, 1000Ω | |||||
| 1:1, 2:1, 3:1, 1:1:1, 2:1:1, 3:1:1, | 5KV 50Hz 1min | 8V, 15V, 24V | ≥6.5V, ≥5.5V | 50Hz～1000Hz | 7Ω | |||||
| 1:1, 2:1, 3:1, 1:1:1, 2:1:1, 3:1:1, | 3KV 50Hz 1min | 8V, 15V, 24V | ≥6.4V, ≥6V | 50Hz～1000Hz | 20Ω | |||||
| 1:1, 2:1, 3:1, 1:1:1, 2:1:1, 3:1:1, | 3KV 50Hz 1min | 8V, 15V, 24V | ≥6V, ≥5.5V | 50Hz～1000Hz | 20Ω | |||||
| 1:1, 2:1, 3:1, 1:1:1, 2:1:1, 3:1:1, | 3KV 50Hz 1min | 8V, 15V, 24V | ≥6V, ≥5V | 50Hz～1000Hz | 20Ω | |||||
| 1:1, 2:1, 3:1, 1:1:1, 2:1:1, 3:1:1, | 4KV 50Hz 1min | 8V, 15V, 24V | ≥6V, ≥5V, ≥5.5Vx2, ≥5Vx2 | 1KHz～20KHz | 20Ω | |||||
| 1:1 | 1.5KV 50Hz 1min | 8V | ≥7V | 10KHz～200KHz | 100Ω | |||||
| 1:1 | 1.5KV 50Hz 1min | 8V | ≥6.5V | 10KHz～200KHz | 100Ω | |||||
| 1:1, 2:1, 3:1, 1:1:1, 2:1:1, 3:1:1, | 5KV 50Hz 1min | 8V, 15V, 24V | ≥5V, ≥5.8V, ≥6.4V, ≥6.2Vx2, ≥5.6Vx2, ≥6Vx2 | 1KHz～50KHz | 7Ω | |||||
| 1:1, 2:1, 3:1, 1:1:1, 2:1:1, 3:1:1, | 5KV 50Hz 1min | 8V, 15V, 24V | ≥5.1V, ≥5.8V, ≥6.9V, ≥6Vx2, ≥6.2Vx2 | 1KHz～50KHz | 7Ω | |||||
| 1:1, 2:1, 3:1, 1:1:1, 2:1:1, 3:1:1, | 5KV 50Hz 1min | 8V, 15V, 24V | ≥4.6V, ≥5.8V, ≥6.4V, ≥4.6Vx2, ≥5.6Vx2, ≥6Vx2 | 1KHz～50KHz | 7Ω | |||||
| 1:1, 2:1, 3:1, 1:1:1, 2:1:1, 3:1:1, | 5KV 50Hz 1min | 8V, 15V, 24V | ≥5.5V, ≥6V, ≥7V, ≥4.5Vx2, ≥6Vx2, ≥6.5Vx2 | 1KHz～50KHz | 7Ω | |||||
| 1:1, 2:1, 3:1, 1:1:1, 2:1:1, 3:1:1, | 5KV 50Hz 1min | 8V, 15V, 24V | ≥6V, ≥5.5V, ≥5Vx2 | 1KHz～50KHz | 7Ω | |||||
| 1:1, 2:1, 3:1, 1:1:1, 2:1:1, 3:1:1, | 5KV 50Hz 1min | 8V, 15V, 24V | ≥5V, ≥5Vx2 | 1KHz～50KHz | 7Ω | |||||
| 1:1, 2:1, 3:1 | 2.5KV 50Hz 1min | 8V, 15V, 24V | ≥5.7V, ≥5.5V | 100Hz～1KHz | 100Ω | |||||
| 1:1, 2:1, 3:1, 1:1:1, 2:1:1, 3:1:1 | 5KV 50Hz 1min | 8V, 15V, 24V | ≥5V, ≥5.8V, ≥6.8V, ≥5.2Vx2, ≥5.7Vx2, ≥6.3Vx2 | 1KHz～10KHz | 7Ω | |||||
| 1:1, 2:1, 3:1 | 3KV 50Hz 1min | 8V, 15V, 24V | ≥6V | 1KHz～10KHz | 6Ω | |||||
| 3:1 | 15KV 50Hz 1min | 24-48V | ≥4-8V | 20Hz～1KHz | ||||||
| 1:1, 2:1, 3:1 | 30KV 50Hz 1min | 10V, 15V, 24V | ≥8V, ≥7V, ≥7.4V | 1KHz～20KHz | 7Ω | |||||
| 3:1 | 15KV 50Hz 1min | 24V | ≥7.8V | 20Hz～1KHz | ||||||
| 1:1, 2:1, 3:1 | 10KV 50Hz 1min | 8V, 15V, 24V | ≥6V, ≥7.2V, ≥7.5V | 50Hz～1000Hz | 100Ω | |||||
| 1:1, 2:1, 3:1 | 10KV 50Hz 1min | 8V, 15V, 24V | ≥3.3V, ≥3V, ≥4.1V | 1KHz～6KHz | 7Ω | |||||
| 1:1, 2:1, 3:1 | 15KV 50Hz 1min | 8V, 15V, 24V | ≥6.2V, ≥6V, ≥6.8V | 1KHz～10KHz | 7Ω | |||||
| 1:1, 2:1, 3:1 | 15KV 50Hz 1min | 8V, 15V, 24V | ≥6.2V, ≥6V, ≥6.8V | 1KHz～10KHz | 7Ω | |||||
| 1:1, 2:1, 3:1 | 15KV 50Hz 1min | 8V, 15V, 24V | ≥6.2V, ≥6V, ≥6.8V | 1KHz～10KHz | 7Ω | |||||
| 1:1, 2:1, 3:1 | 15KV 50Hz 1min | 8V, 16V, 24V | ≥6.6V, ≥6.5V, ≥6.3V | 1KHz～10KHz | 7Ω | |||||
| 1:1, 2:1, 3:1 | 15KV 50Hz 1min | 8V, 16V, 24V | ≥5V, ≥5.5V, ≥6.2V | 20Hz～1KHz | 7Ω | |||||
| 1:1, 2:1, 3:1 | 20KV 50Hz 1min | 8V, 15V, 24V | ≥6V, ≥6.8V, ≥7.2V | 1KHz～20KHz | 7Ω | |||||
| 1:1, 1:1:1:1, 1:1:1:0.94 | - | 5KV 50Hz 1min | 12V, 12Vx2 | ≥10V, ≥11V/11.8V | 10KHz～100KHz | 100Ω | ||||
| 1:1, 2:1, 3:1, 1:1:1, 2:1:1, 3:1:1 | - | 4.5KV 50Hz 1min | 15V, 20V, 30V | ≥12V, ≥8V, ≥12Vx2, ≥8Vx2 | 10KHz～100KHz | 20Ω | ||||
| 1:1, 2:1, 3:1, 1:1:1, 2:1:1, 3:1:1 | - | 4.5KV 50Hz 1min | 15V, 20V, 30V | ≥12V, ≥8V, ≥12Vx2, ≥8Vx2 | 10KHz～100KHz | 20Ω | ||||
| 1:1, 2:1, 3:1, 1:1:1, 2:1:1, 3:1:1 | - | 4.5KV 50Hz 1min | 15V, 20V, 30V | ≥13V, ≥8V, ≥13Vx2, ≥8Vx2 | 10KHz～100KHz | 10Ω | ||||
| 1:1, 2:1, 3:1, 1:1:1, 2:1:1, 3:1:1 | - | 4.5KV 50Hz 1min | 15V, 20V, 30V | ≥12V, ≥8V, ≥12Vx2, ≥8Vx2 | 10KHz～100KHz | 20Ω | ||||
| 1:1, 2:1, 3:1, 1:1:1, 2:1:1, 3:1:1 | - | 3KV 50Hz 1min | 15V, 20V, 30V | ≥13.4V, ≥8V, ≥13.4Vx2, ≥8Vx2 | 15KHz～200KHz | 20Ω | ||||
| 1:1, 2:1, 3:1, 1:1:1, 2:1:1, 3:1:1 | - | 4.5KV 50Hz 1min | 15V, 20V, 30V | ≥13V, ≥8V | 10KHz～100KHz | 100Ω | ||||
| 1:1, 2:1, 3:1, 1:1:1, 2:1:1, 3:1:1 | - | 5KV 50Hz 1min | 15V, 20V, 30V | ≥14.3V, ≥9.8V, ≥14.3Vx2, ≥9.8Vx2 | 15KHz～200KHz | 100Ω | ||||
| 1:1, 2:1, 3:1, 1:1:1, 2:1:1, 3:1:1 | - | 3.1KV 50Hz 1min | 15V, 20V, 30V | ≥13V, ≥8.8V | 30KHz～200KHz | 100Ω | ||||
| 1:1, 2:1, 3:1, 1:1:1, 2:1:1, 3:1:1 | - | 4KV 50Hz 1min | 15V, 20V, 30V | ≥14.4V, ≥9.5V, ≥10V, ≥14.2Vx2, ≥9.5Vx2, ≥10Vx2 | 30KHz～200KHz | 100Ω | ||||
| 1:1, 2:1, 3:1, 1:1:1, 2:1:1, 3:1:1 | - | 1.5KV 50Hz 1min | 15V, 20V, 30V | ≥14.6V, ≥9.6V, ≥9V, ≥14.6Vx2, ≥9.6Vx2, ≥9Vx2 | 50KHz～200KHz | 100Ω | ||||
| 1:1, 2:1, 3:1, 1:1:1, 2:1:1, 3:1:1 | - | 3KV 50Hz 1min | 6V, 12V, 18V | ≥ 5, ≥5 *2 | 30KHz～200KHz | |||||
| 54:443 | - | 15KV 50Hz 1min | 220V | 1.8KV | 0.6Ω | 9.9Ω | 6.2H | 360H | 50Hz～60Hz | |
| 1:200 | - | 10-200V | >22KV | 26mΩ | 520Ω | 6μH | 240mH | 60Hz～5KHz | ||
| 1:150 | - | 10-200V | >23KV | 59mΩ | 590Ω | 12μH | 233mH | 60Hz～5KHz | ||
| 1:175 | - | 10-200V | >23KV | 59mΩ | 822Ω | 12μH | 340mH | 60Hz～5KHz | ||
| 1:256 | - | 10-200V | >20KV | 26mΩ | 786Ω | 6μH | 375mH | 60Hz～5KHz | ||
| 1:200 | - | 10-200V | >22KV | 26mΩ | 520Ω | 6μH | 240mH | 60Hz～5KHz | ||
| 1:1, 2:1, 3:1, 1:1:1, 2:1:1, 3:1:1 | 5KV 50Hz 1min | 8V, 15V, 24V | ≥5V, ≥5.8Vx2 | 1KHz～50KHz |
SMD5046
KMB472
KMB-05
KMB-02
KMB-01 KMB-00
KMB255
KMB321
KMB239
KMB418
KMB518
KMB418S
KMB529
KMB519
KMB419S
KMB471
KMB229
KMB3081
KSR89
KMG4950
KMG89
KMG191
KMG209
KMG288B
KMG288D
KMG288
KMG308
KMG208
KMG35
DX091
D4282V
D4282
D4225
D4185
D4615
D4215
D5191
D4099
D4097
D432
SMD5032
KMG96-26

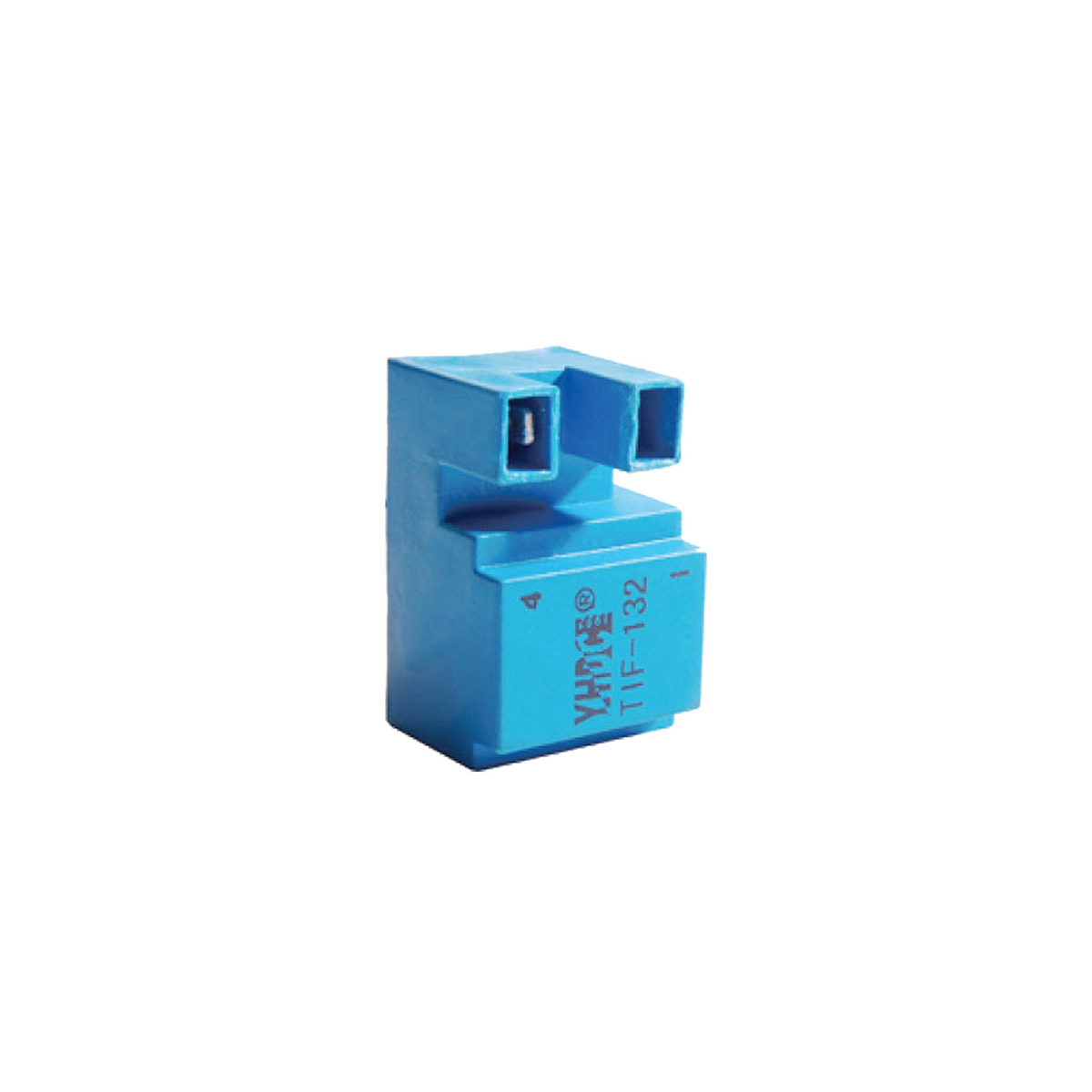

TIF-132

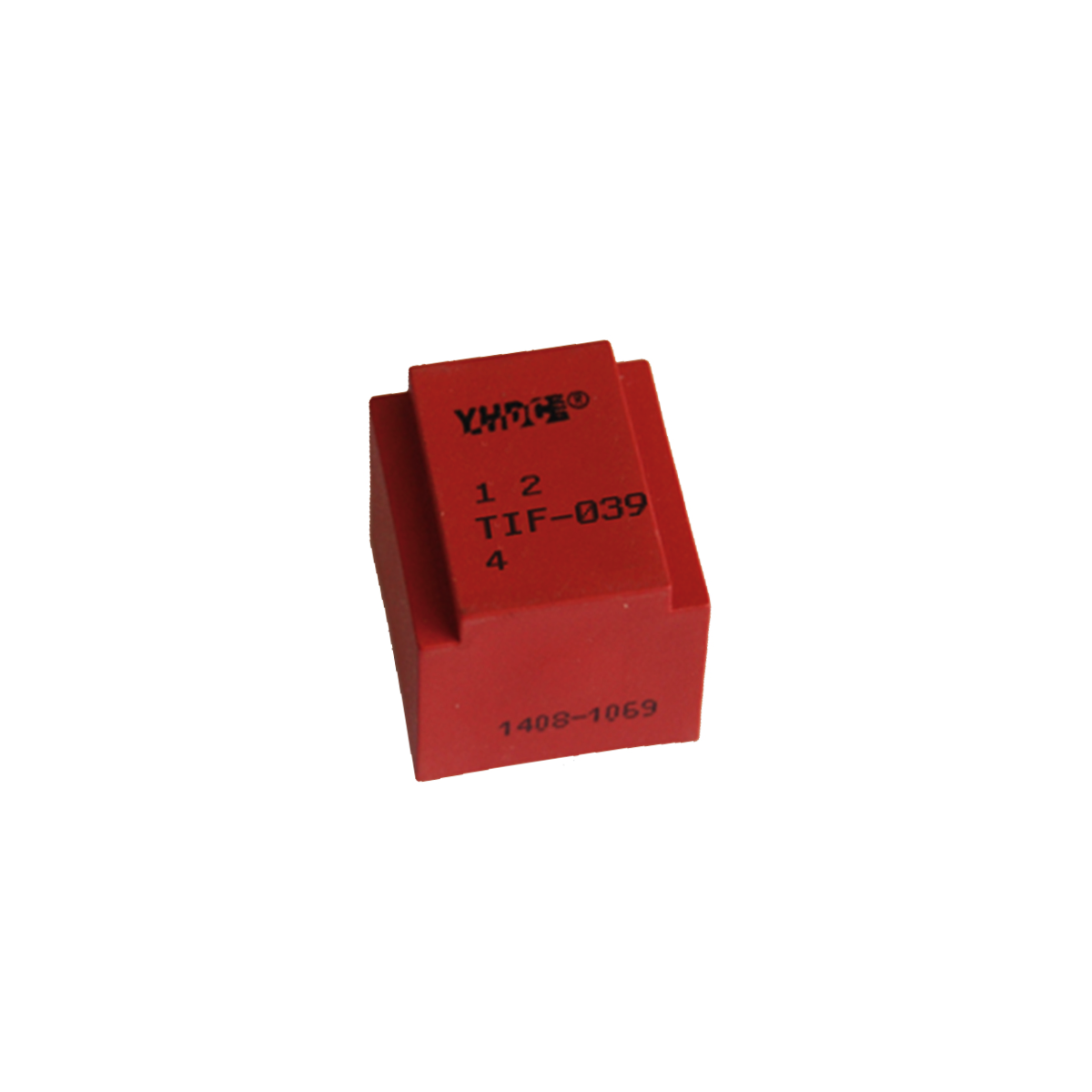

TIF-039

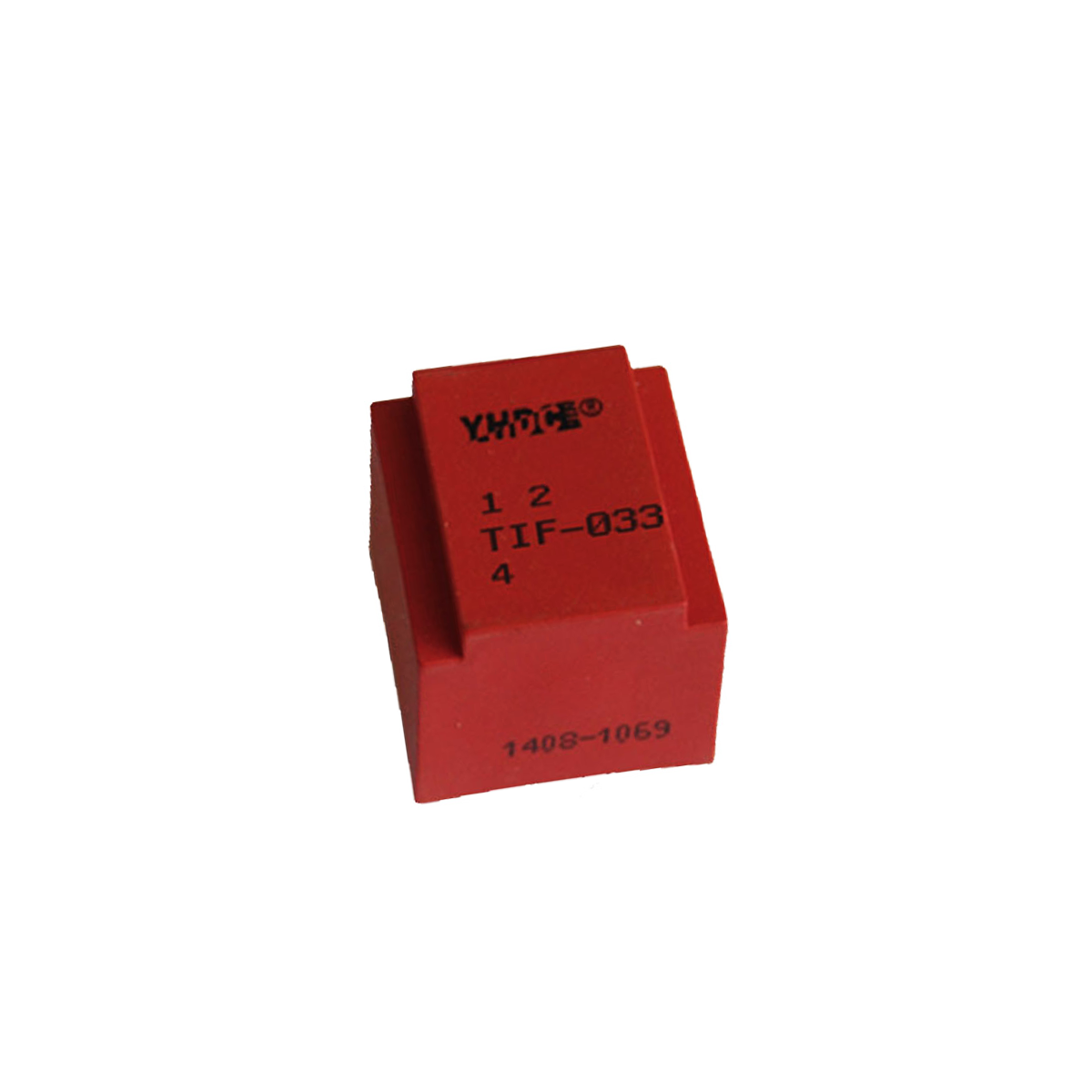

TIF-033

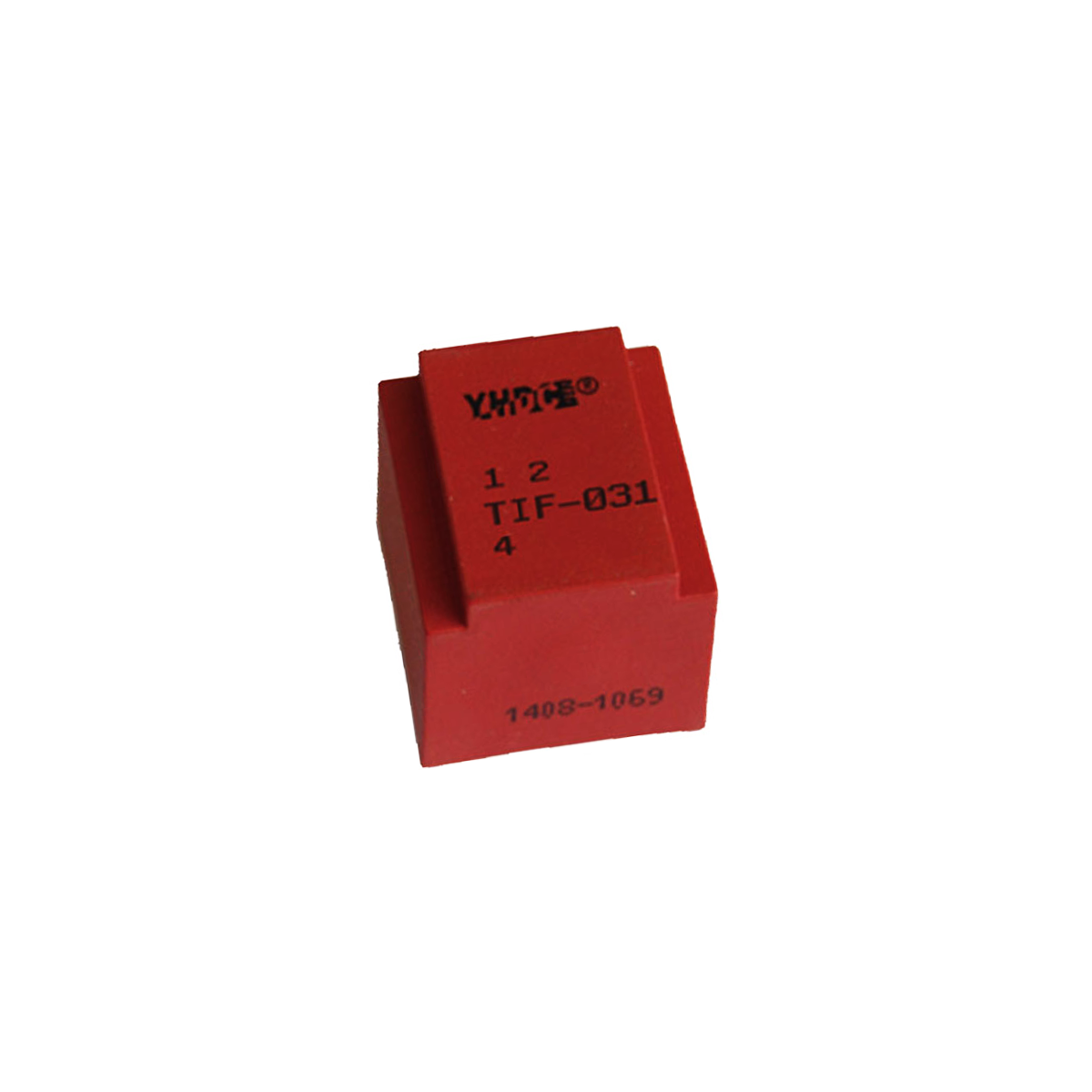

TIF-031

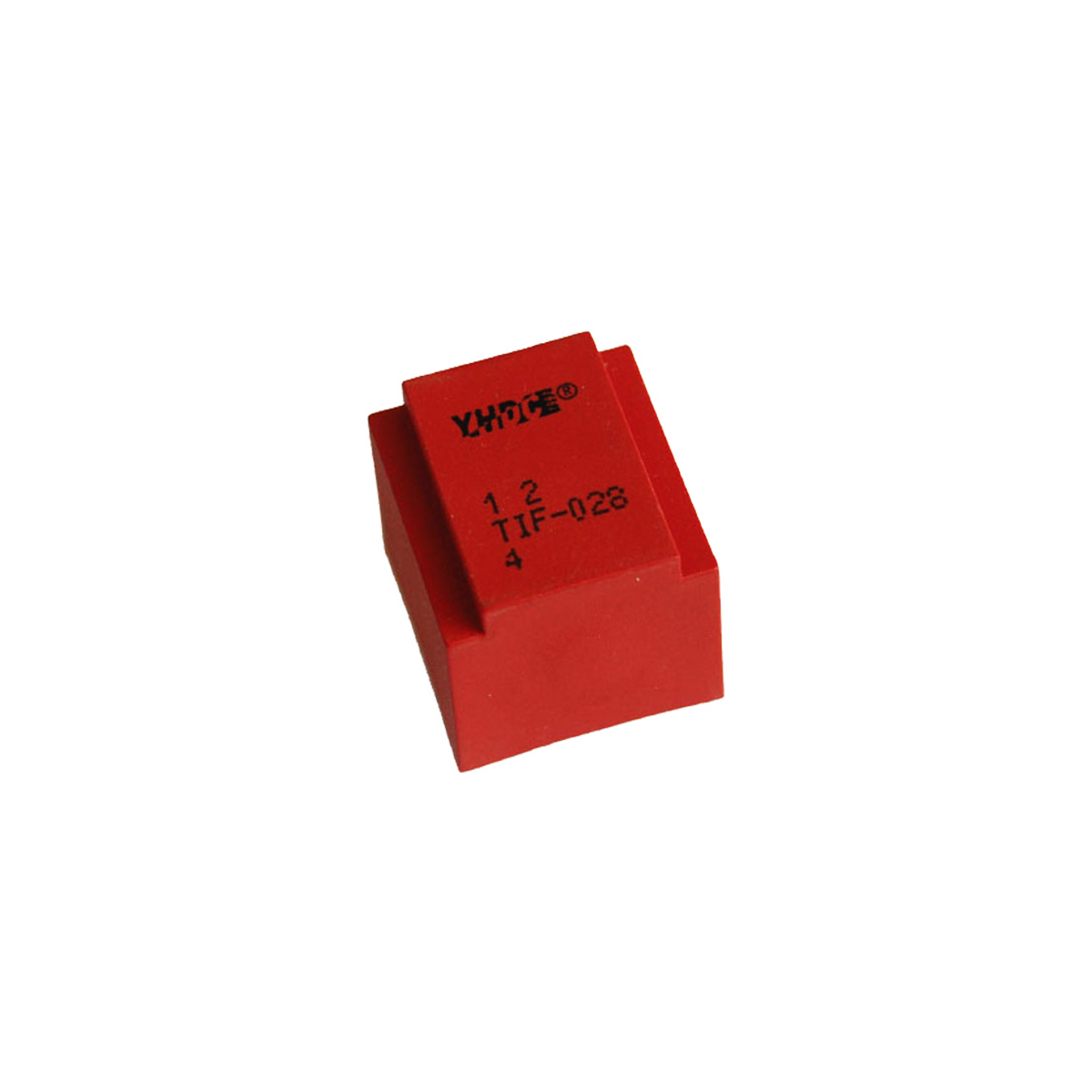

TIF-028
KMB418B
