TST013-RJ45-RMS

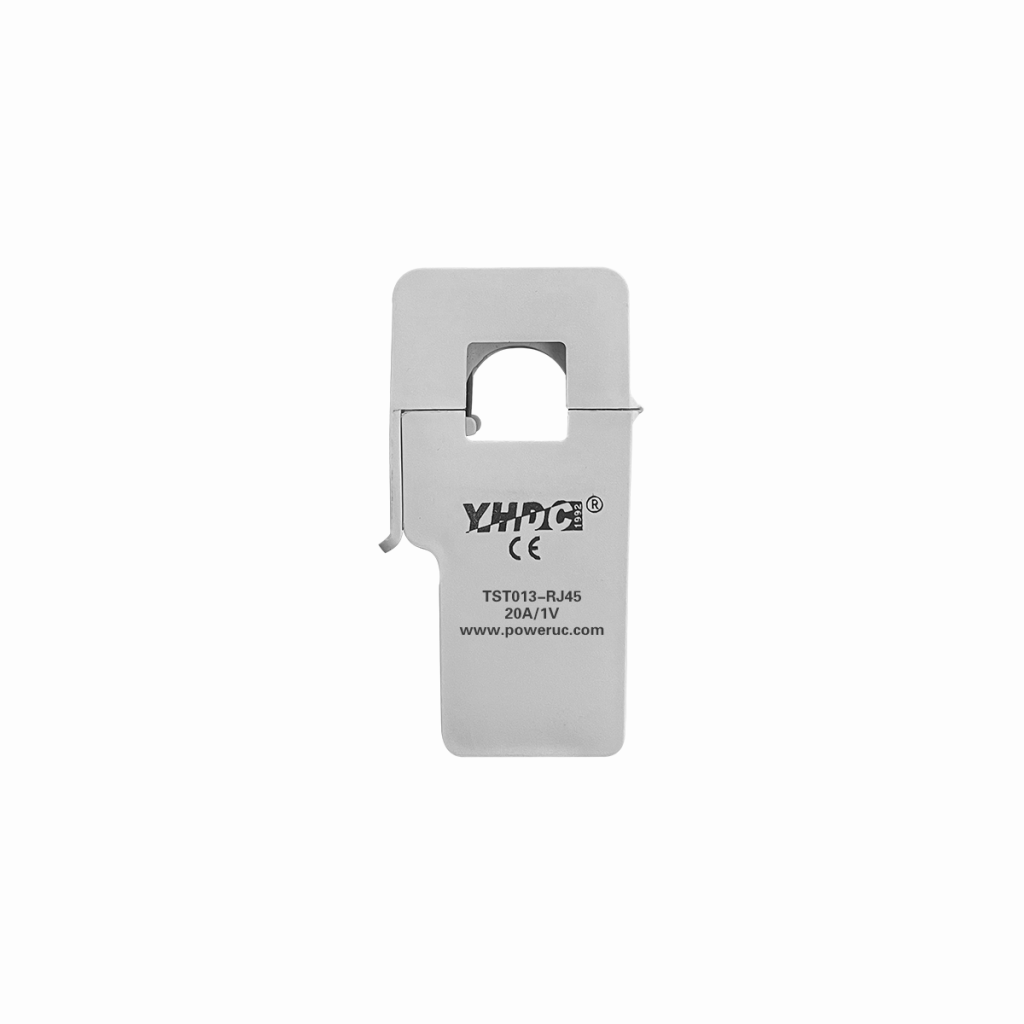

TST013-RJ45

Split core current transmitter

Characteristics:

This transmitter utilizes a dedicated chip to directly measure the mean square value of arbitrary waveforms (such as square waves, triangular waves, distorted waves, etc.). It then calculates the true RMS value through an algorithm, ensuring accuracy unaffected by waveform variations. It features a clamp-on structure and outputs via an RJ45 interface.

Product application:

• Industrial automation equipment(such as thyristor rectifier devices)
• Harmonics in power systems(non-sinusoidal waveforms like square waves, triangular waves, and their distortion components)
• New energy inverter testing (waveforms output by solar/wind energy inverters)
• Power electronics device development (capturing transient currents in power devices like IGBTs and MOSFETs)

Technical index:

Operation temperature：-10℃～+70℃

Storage temperature: -25℃ ~ +70℃

Dielectric strength：2.5KV 50Hz 1min
