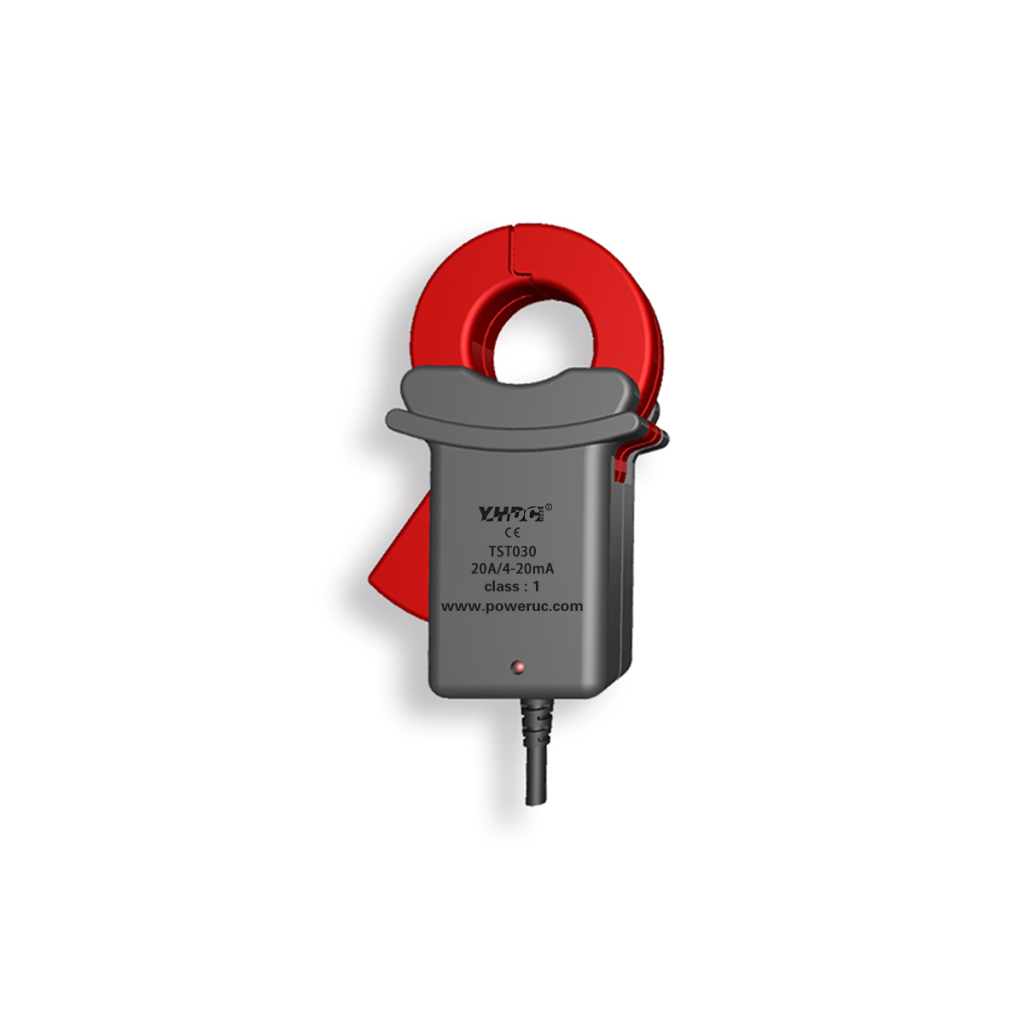

Split core handheldćoutput with cable.Detect AC current. High insulation between primary and secondary circuits.
Fair resistanceļ¼ with UL94-V0
Operating temperatureļ¼-10āļ½+70ā
Storage temperatureļ¼-25āļ½+70ā
Delectric strengthļ¼2.5KV 50Hz 1min
| Core Type | Split-Core |
| Input Type | AC |
| Output Type | RMS |
| Rated Input Current (RMS) | 20A, 50A |
| Rated Output | 0-20mA, 4-20mA, 0-5V, 1-5V |
| Accuracy | 1% |
| Power Supply Voltage | +12V, +24V |
| Connection Type | Cable |
| Mounting Type | Hand-held |
