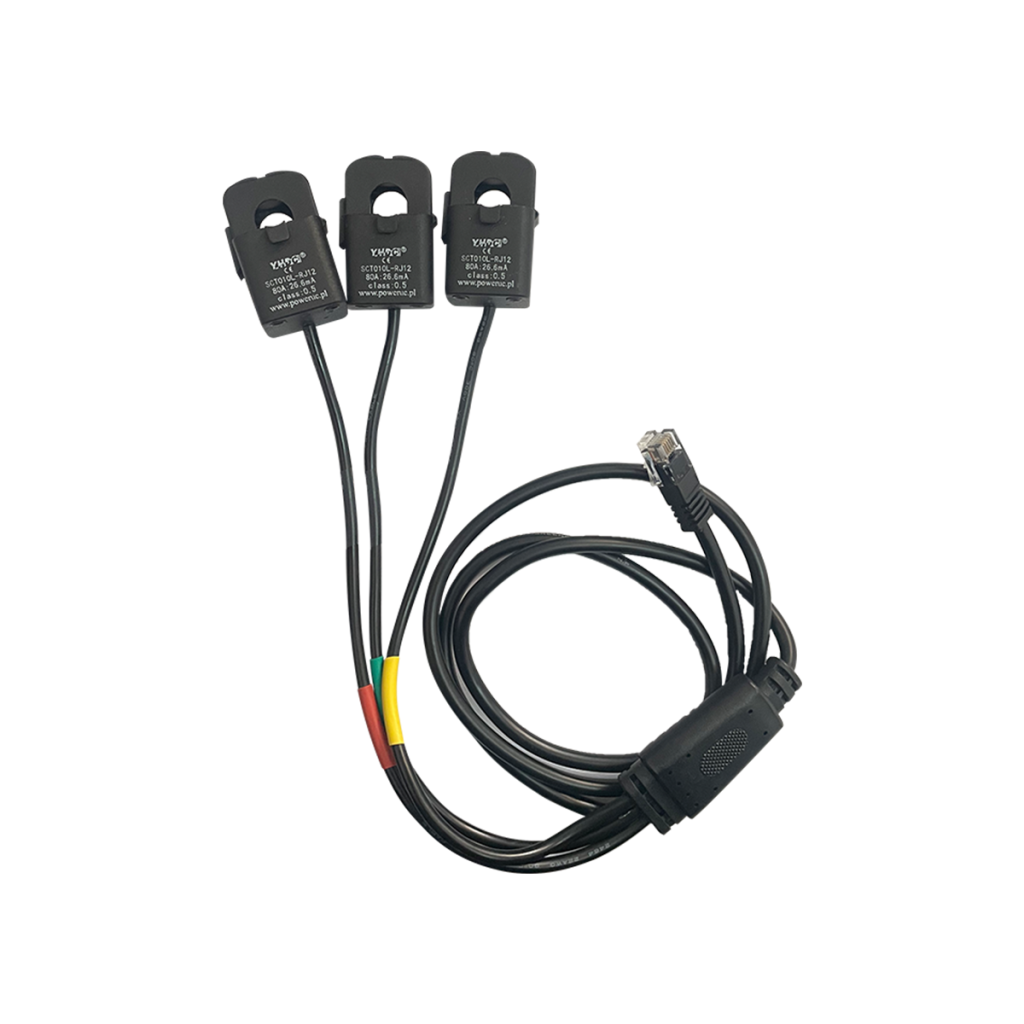

3-SCT010L-RJ12

VAT excl.
Shipping calculated at checkout.

This product is currently out of stock and unavailable.

Overview

Introduce:

YHDC’s SCT010 series clamp-on current transformers feature a patented design, are compact and easy to open, and can achieve up to 0.2% accuracy. The clamp-on current transformers offer a variety of output options, such as RJ11, RJ45, and 3.5mm audio plugs. The advantage of a clamp-on current transformer is that it can be easily moved into place without disturbing or disconnecting the main cable it monitors.



Characteristic:

  • Safety lock buckle
  • Easy installation
  • RJ12 interface output
  • Three-phase integrated split core current transformer



Technical index:

  • Mounting type: Free hanging (In-Line)
  • Material of core: Ferrite
  • Applicable standards: GB20840-2014
  • Operating temperature: -25℃ ~ +70℃
  • Storage temperature: -30℃ ~ +90℃
  • Frequency range: 50Hz-1KHz
  • Waterproof grade: IP00
  • Dielectric strength: Input (bare conductor)/Output AC 800V/1min 50Hz Output/Housing AC 3.5KV/1min 50Hz



Applications:

Current measurement, monitoring and protection for electrical wiring and equipment,IoT energy monitoring systems.
Current and power measurement for electric motors,lighting,air compressor,heating and ventilation system,air-condition equipment and automation-control system.

Product Details

Technical index
Core TypeSplit-Core
Core materialFerrite
Mounting TypeFree Hanging(In-Line)
Size of the openingΦ10mm
Rated Input20A-80A
Output TypeAC
Rated Output10mA-80mA
Accuracy0.2%, 0.5%, 1%
Dielectric StrengthAC 3.5KV/1min 50Hz (housing to output)
Frequency Range50Hz - 1KHz
Connection TypeRJ12
