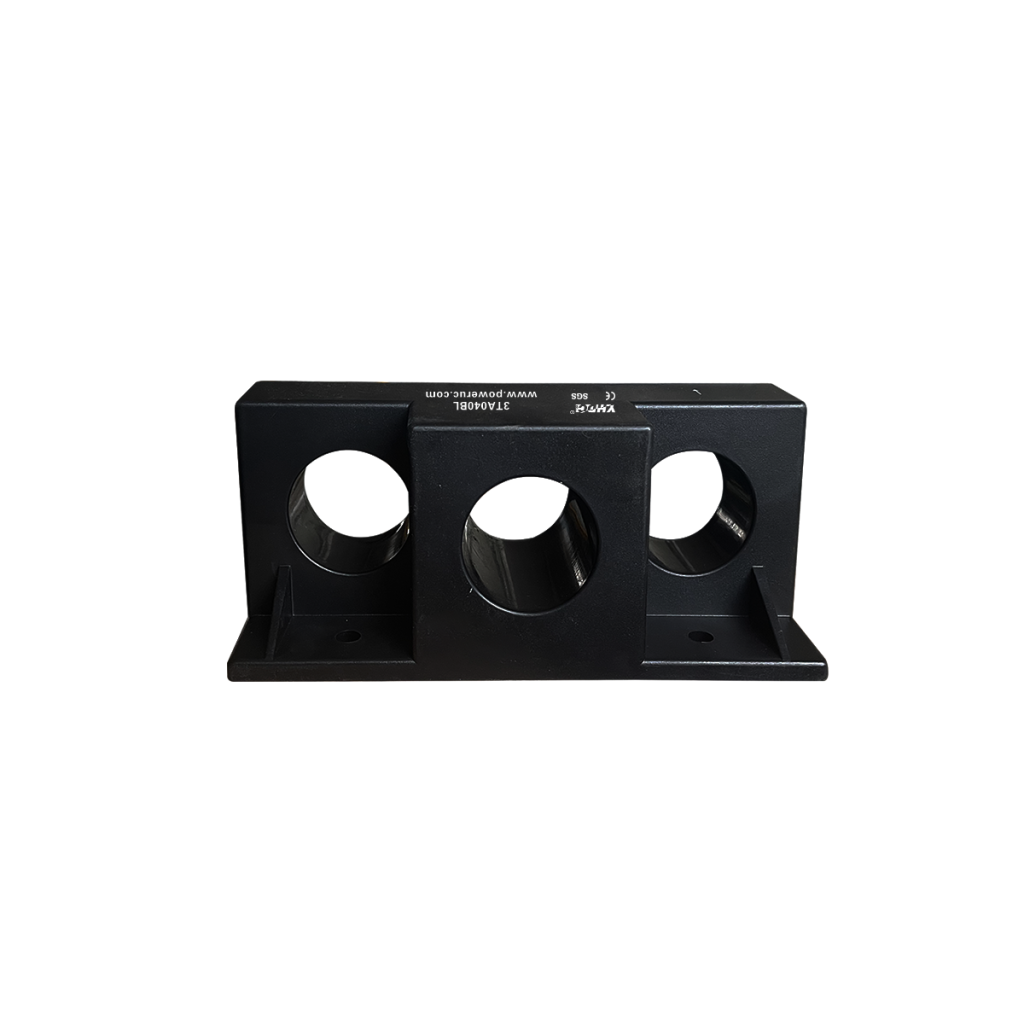

The 3TA040BL series three-phase current transformers are specially designed for measuring three-phase currents, suitable for conductor diameters from 6.5mm to 40mm, and have internal space to accommodate circuit boards.
| Core Type | Solid-Core |
| Core material | Silicon steel sheet |
| Mounting Type | Plate |
| Size of the opening | 3×Φ40mm |
| Rated Input | 150A-400A |
| Output Type | AC |
| Rated Output | 0.1A, 1A, 5A |
| Dielectric Strength | AC 3.5KV/1min 50Hz (housing to output) |
| Frequency Range | 50Hz - 60Hz |
| Connection Type | Cable |
