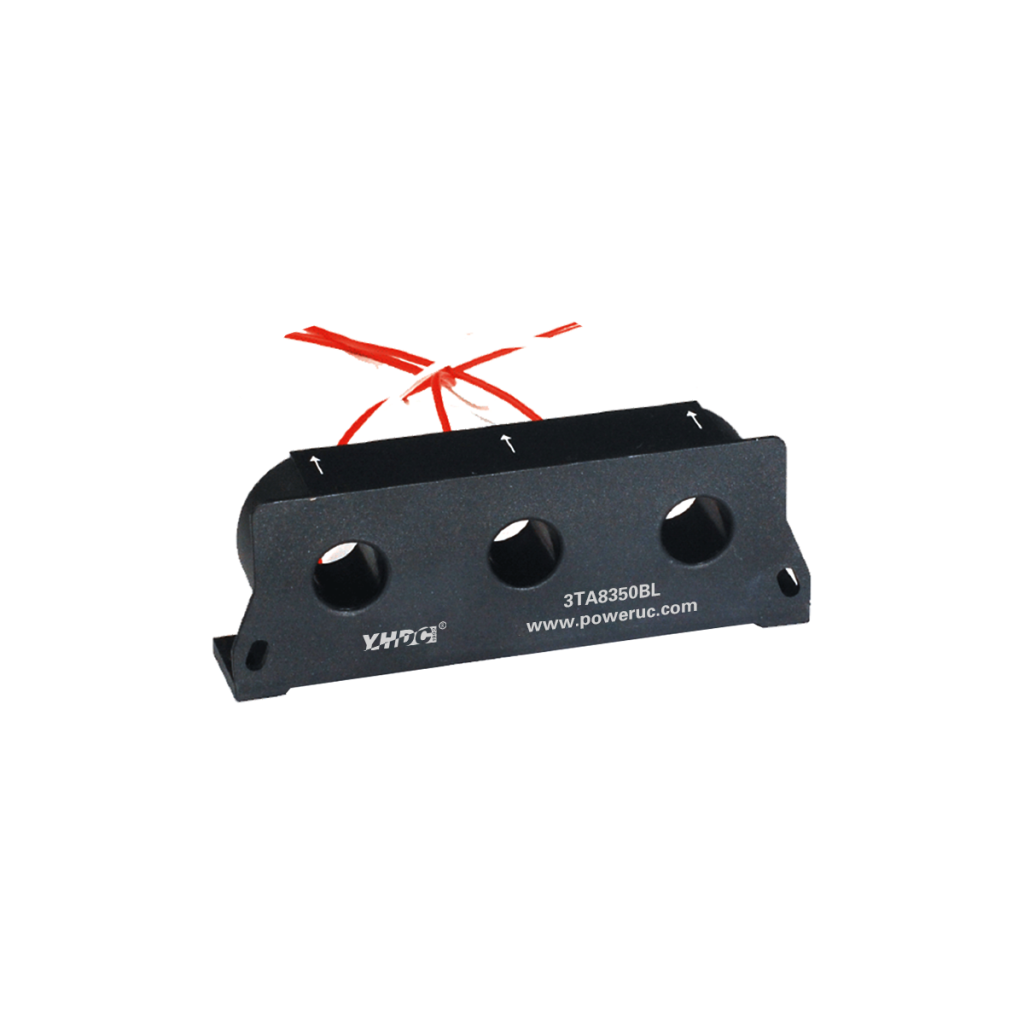

The 3TA8350BL series three-phase current transformers are specially designed for measuring three-phase currents, suitable for conductor diameters from 6.5mm to 40mm, and have internal space to accommodate circuit boards.
| Core Type | Solid-Core |
| Core material | Nanocrystalline |
| Mounting Type | Free Hanging(In-Line) |
| Window Diameter | 3×Φ13mm |
| Rated Input | 25A-100A |
| Output Type | AC |
| Rated Output | 25mA |
| Dielectric Strength | AC 3.5KV/1min 50Hz (housing to output) |
| Frequency Range | 20Hz - 20KHz |
| Connection Type | Cable |
