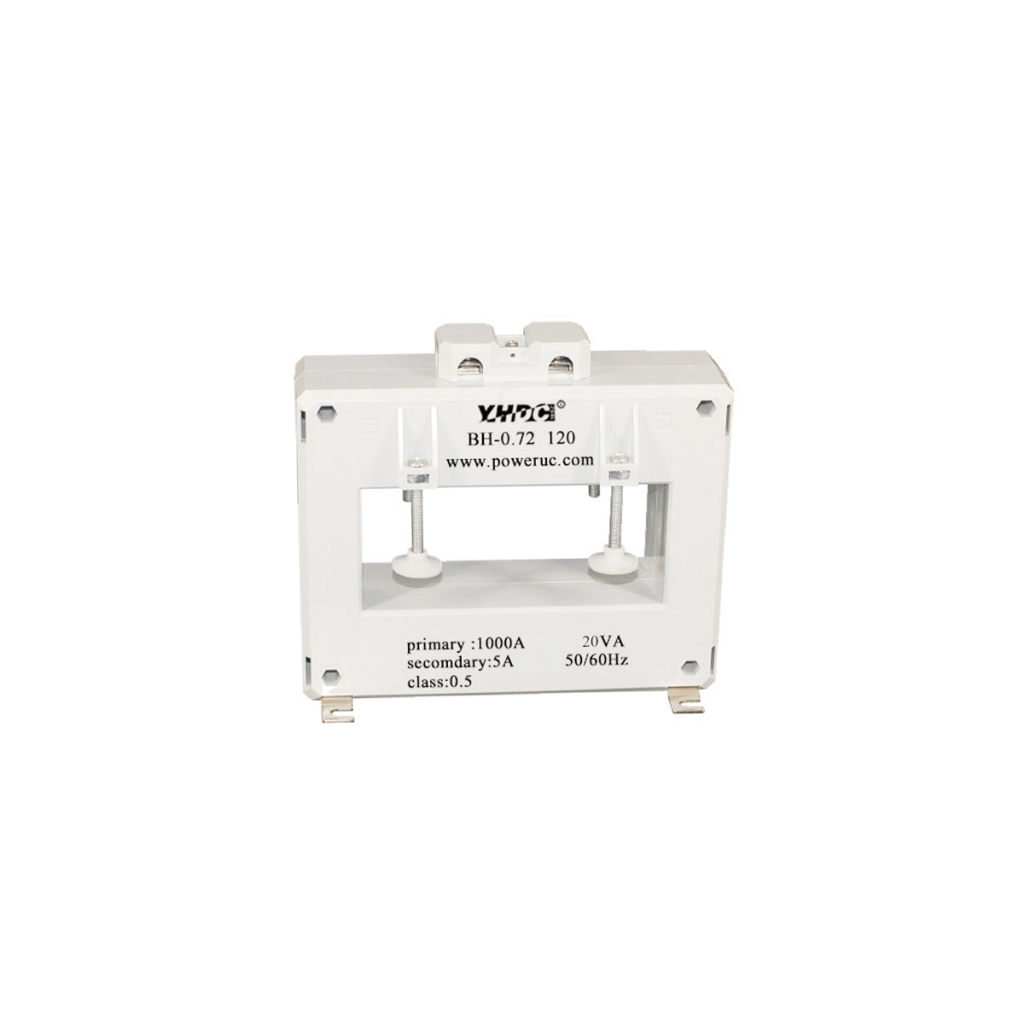

BH-0.72-120
BH-0.72-120

BH-0.72-120

62,84 VAT excl.
Shipping calculated at checkout.

Overview

Introduce:

BH-0.72-120 series current transformers are designed for current and electrical energy measurement or relay protection in AC systems with a rated frequency of 50Hz/60Hz and a rated voltage of 0.72kV and below.
The product is a current transformer with a plastic housing, which is widely used in complete cabinets. The installation method can adopt the busbar fixing and baseplate fixing installation methods. The product can be installed in any direction, and the primary wire can be busbar or cable.

Applications:

general metering
switchgear

Product Details

Technical index
Core TypeSolid-Core
Core materialSilicon steel sheet
Mounting TypePlate, Platen
Size of the opening122*52mm
Rated Input1000A-4000A
Output TypeAC
Rated Output0.1A, 1A, 5A
Accuracy0.2S, 0.2, 0.5S, 0.5, 1
Dielectric StrengthAC 6KV/1min 50Hz (housing to output)
Frequency Range50Hz - 60Hz
Connection TypeScrew Terminal
