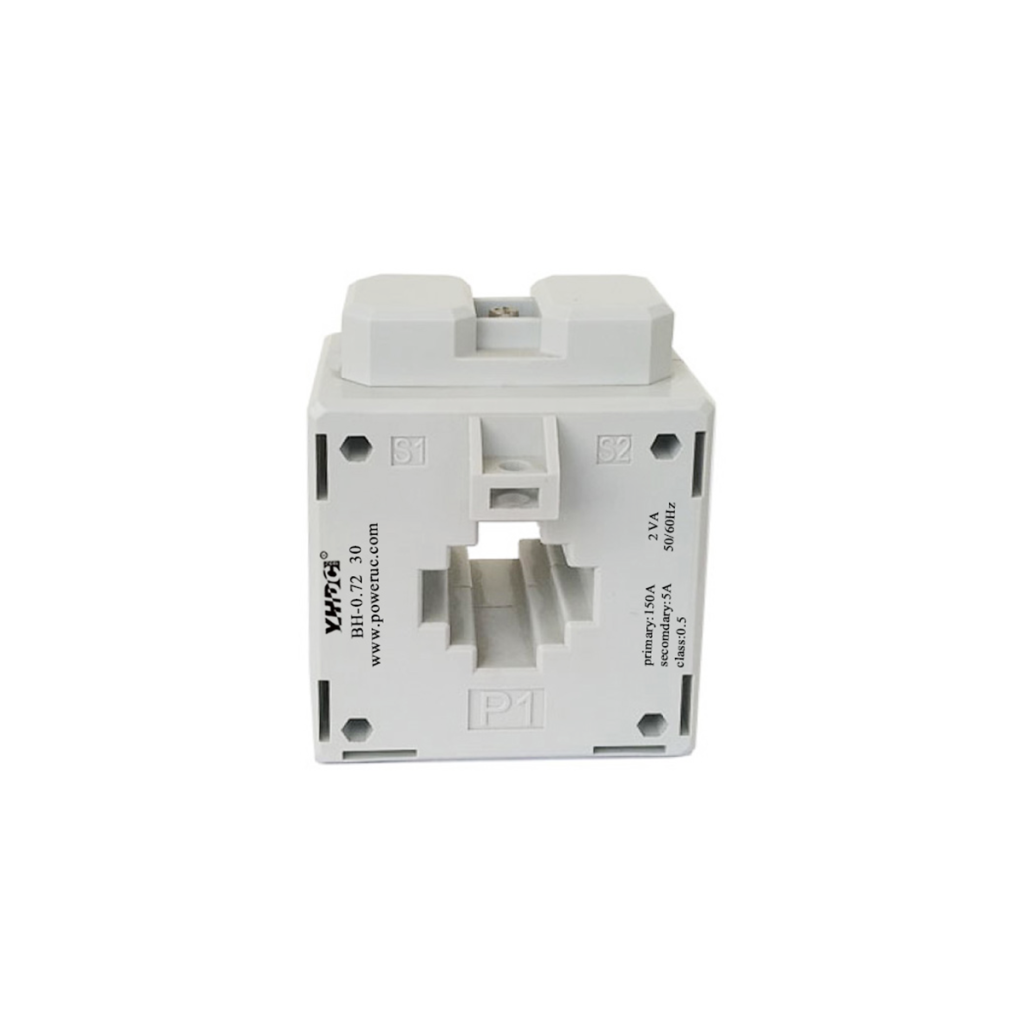

BH-0.72-30 series current transformers are designed for current and electrical energy measurement or relay protection in AC systems with a rated frequency of 50Hz/60Hz and a rated voltage of 0.72kV and below.
The product is a current transformer with a plastic housing, which is widely used in complete cabinets. The installation method can adopt the busbar fixing and baseplate fixing installation methods. The product can be installed in any direction, and the primary wire can be busbar or cable.
general metering
switchgear
| Core Type | Solid-Core |
| Core material | Silicon steel sheet |
| Mounting Type | Plate, Platen |
| Size of the opening | 31*11mm |
| Rated Input | 150A-600A |
| Output Type | AC |
| Rated Output | 0.1A, 1A, 5A |
| Accuracy | 0.2S, 0.2, 0.5S, 0.5, 1 |
| Dielectric Strength | AC 6KV/1min 50Hz (housing to output) |
| Frequency Range | 50Hz - 60Hz |
| Connection Type | Screw Terminal |
