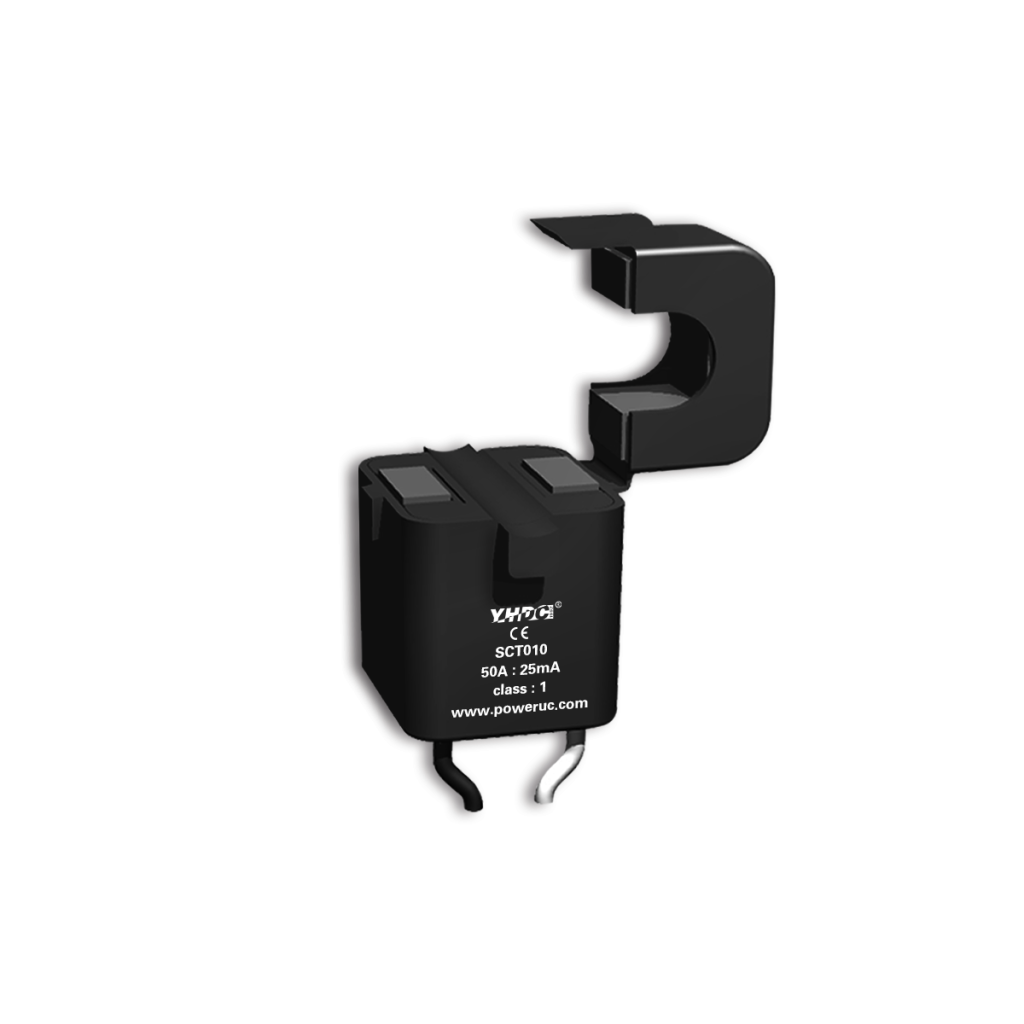

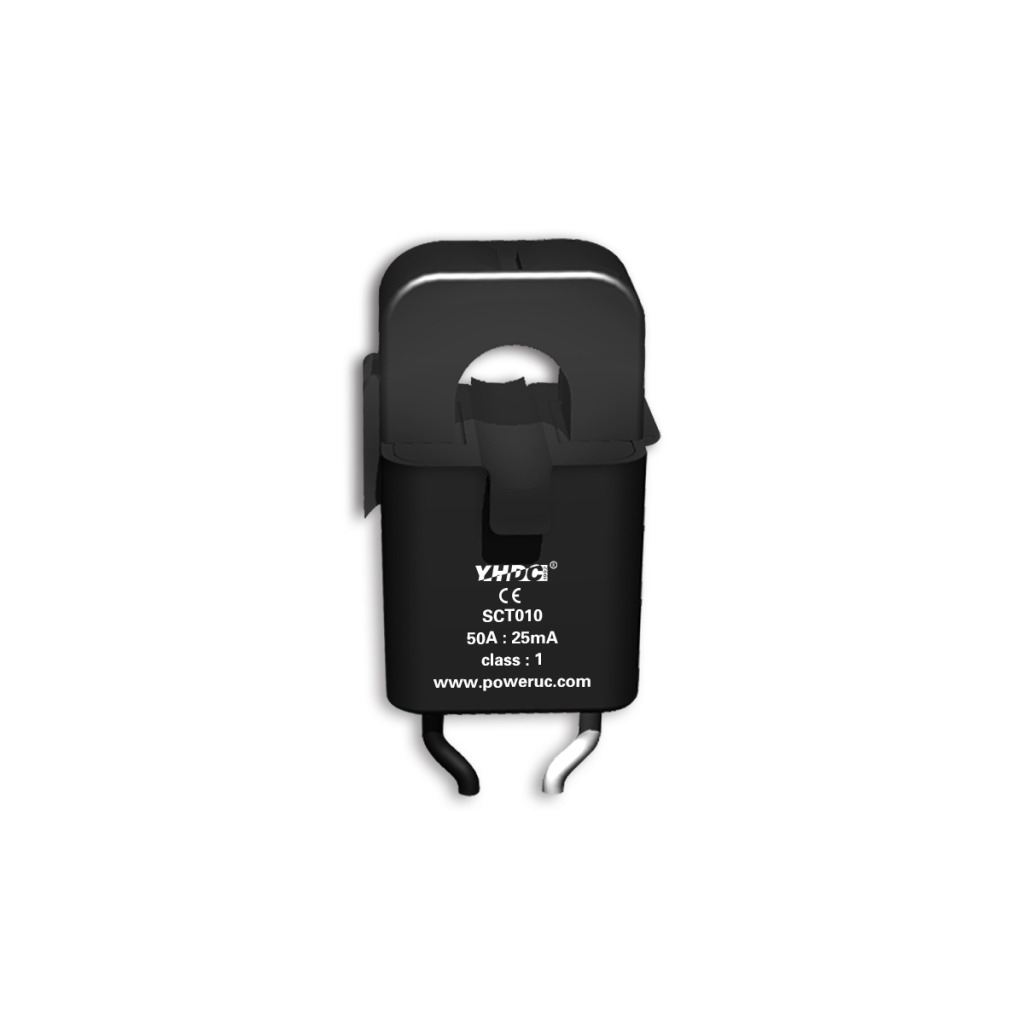

The SCT series split core current transformers are equipped with built-in transient voltage suppressors, used for current measurement, monitoring, and protection of AC motors, lighting equipment, air compressors, and more.
Safety lock buckle
easy installation
cable output
Mounting type:Free hanging (In-Line)
Material of core：Ferrite
Applicable standards：GB20840-2014
Operating temperature：-25℃～+60℃
Storage temperature：-30℃～+90℃
Frequency range：50Hz-1KHz
Waterproof grade: IP00
Dielectric strength:Input (bare conductor)/Output AC 800V/1min 50Hz Output/housing AC 3.5KV/1min 50Hz
| Core Type | Split-Core |
| Core material | Ferrite |
| Mounting Type | Free Hanging(In-Line) |
| Size of the opening | Φ10 mm |
| Rated Input | 20A-80A |
| Output Type | AC |
| Rated Output | 10mA-80mA, 0.33V,1V,3V,5V |
| Accuracy | 1% |
| Dielectric Strength | Input (bare conductor)/Output AC 800V/1min 50Hz |
| Frequency Range | 50Hz - 1KHz |
| Connection Type | Cable |
