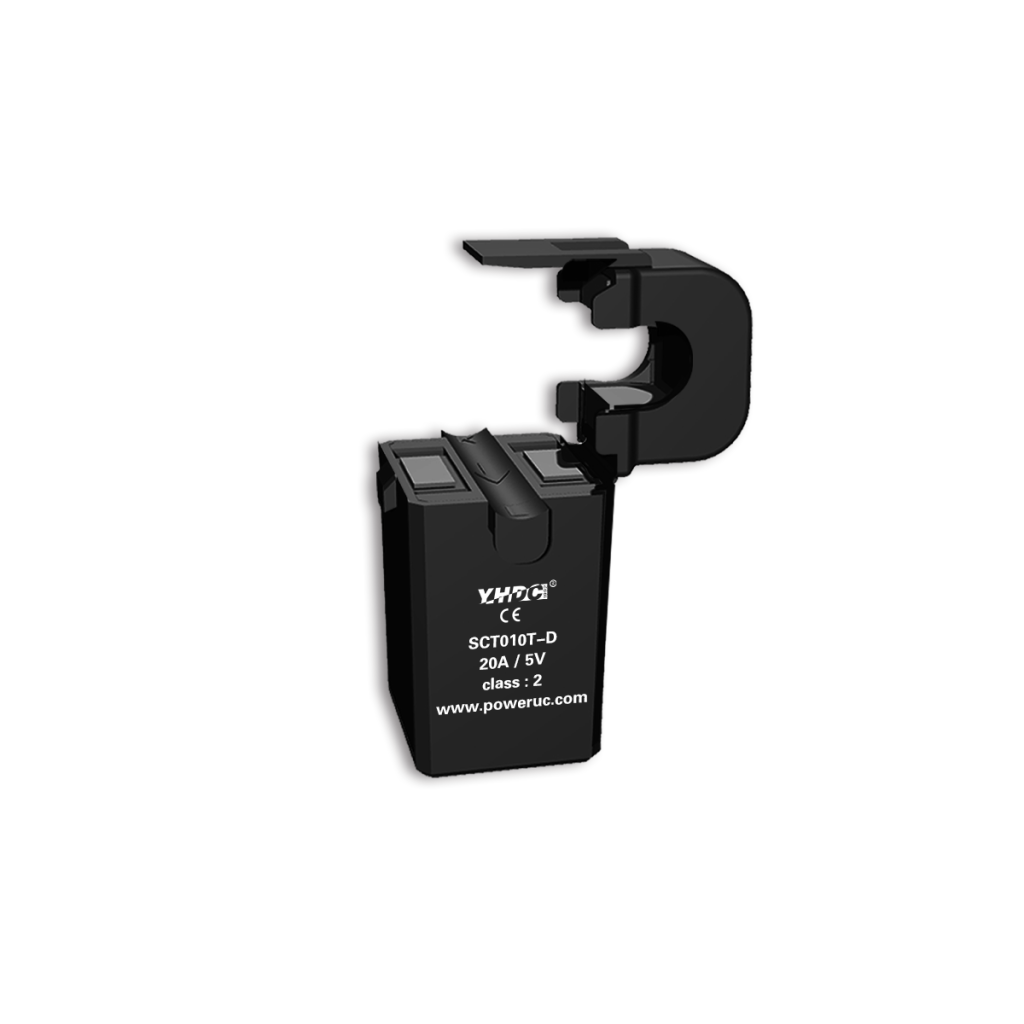

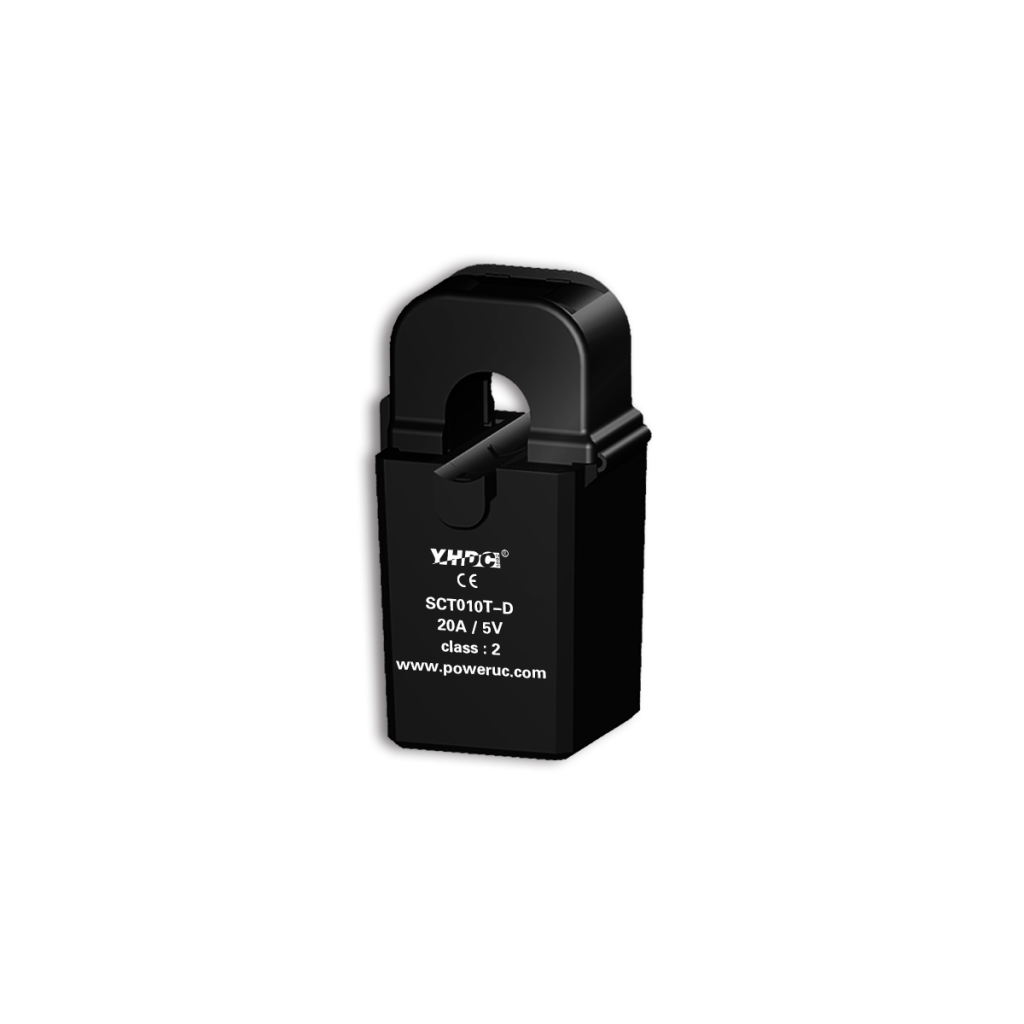

The SCT series split core current transformers are equipped with built-in transient voltage suppressors, used for current measurement, monitoring, and protection of AC motors, lighting equipment, air compressors, and more.
Safety lock buckle
easy installation
Built-in rectifier
screw terminal output.
Mounting type: Free hanging (In-Line)
Material of core: Ferrite
Applicable standards: GB20840-2014
Operating temperature: -25℃ ~ +60℃
Storage temperature: -30℃ ~ +90℃
Frequency range: 50Hz-1KHz
Waterproof grade: IP00
Dielectric strength: Input (bare conductor)/Output AC 800V/1min 50Hz
Output/housing AC 3.5KV/1min 50Hz
| Core Type | Split-Core |
| Core material | Ferrite |
| Mounting Type | Free Hanging(In-Line) |
| Size of the opening | Φ10 mm |
| Rated Input | 5A-50A |
| Output Type | DC |
| Rated Output | 1V, 3V, 5V |
| Accuracy | 2% |
| Dielectric Strength | Input (bare conductor)/Output AC 800V/1min 50Hz |
| Frequency Range | 50Hz - 1KHz |
| Connection Type | Screw Terminal |
