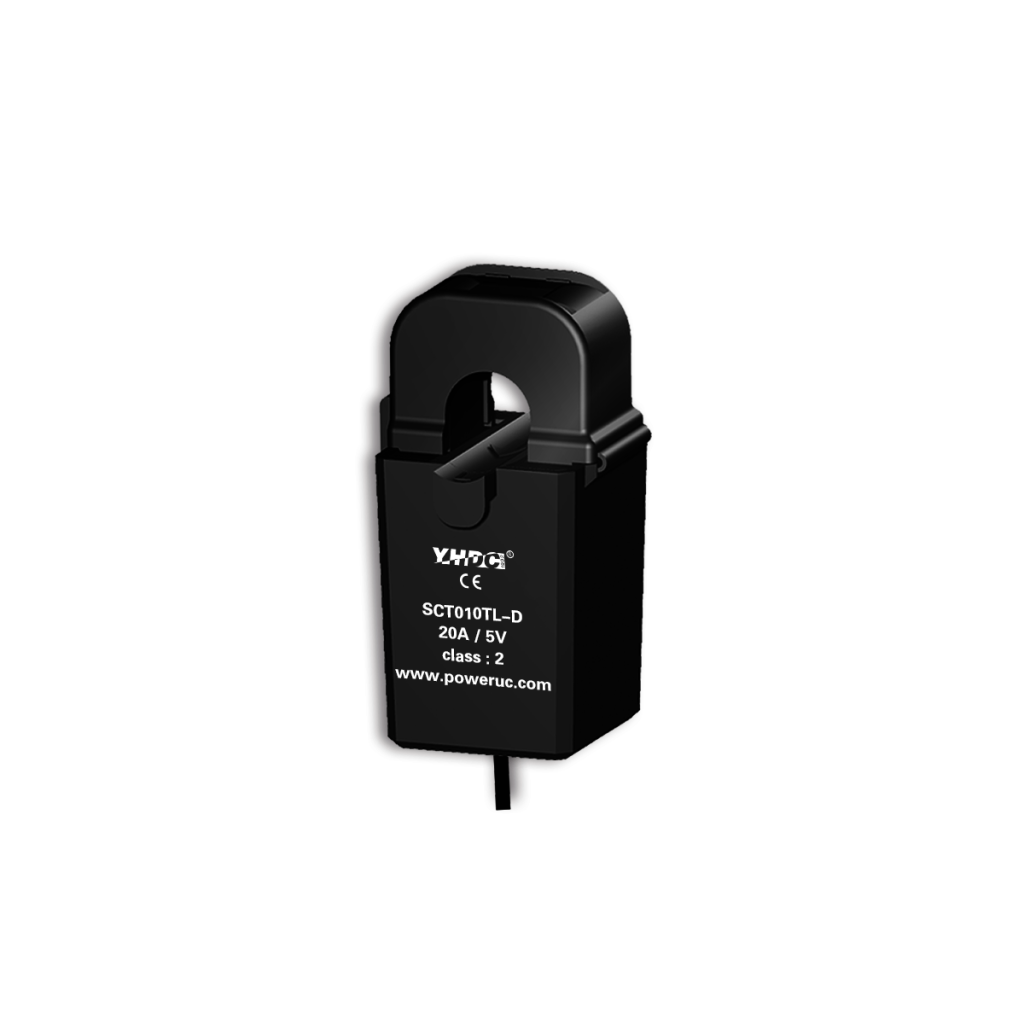

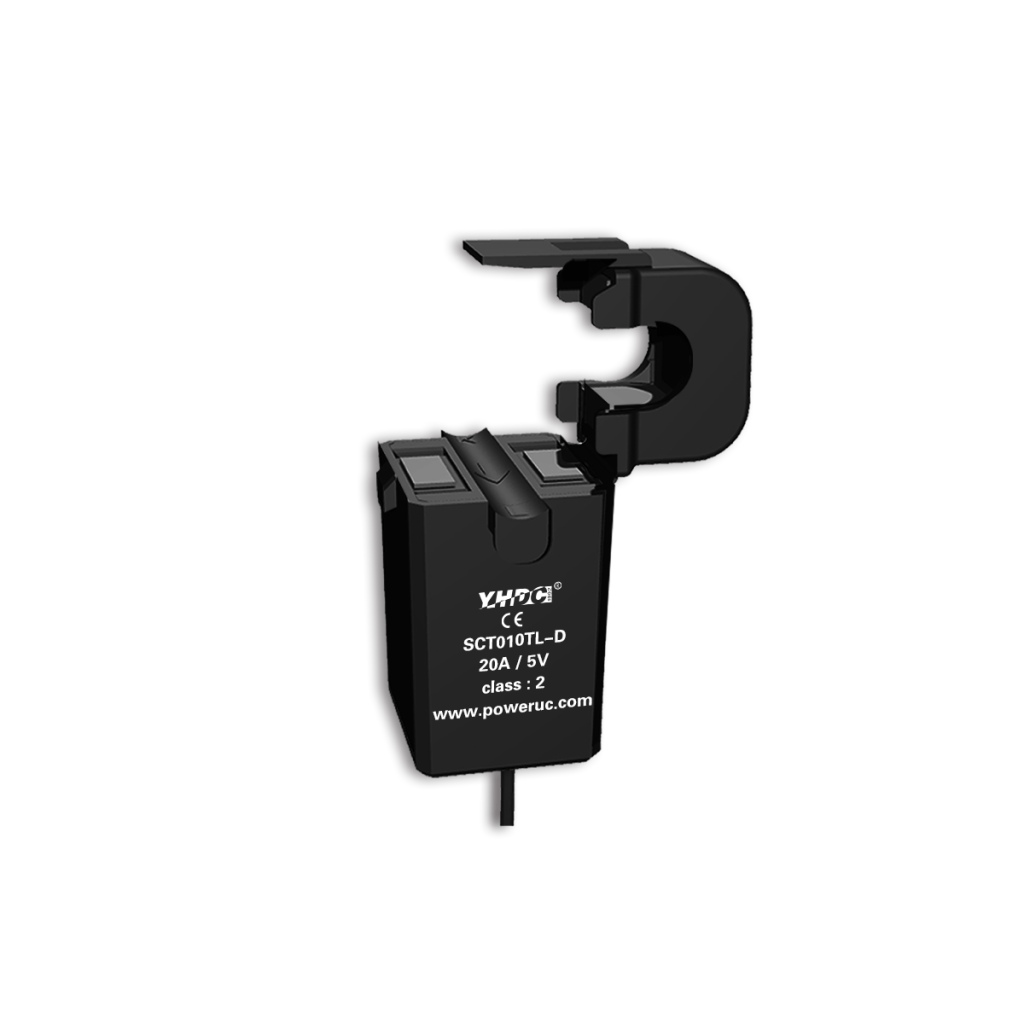

SCT010TL-D

3.57 VAT excl.
Shipping calculated at checkout.

Overview

Introduce:

YHDC brand of SCT013-D type split core current transformers have been specifically designed to be small CT and easy to open . galvanic separation between the primary AC current circuit and the secondary 0-5V DC output circuit.The benefit of a split core current transformers is that it can be placed into position easily and without disturbing or disconnecting the main cables it is monitoring.

Characteristic:

  • Built-in rectifier
  • 0-5V DC RMS output
  • Safety lock buckle
  • Easy installation
  • Cable output



Technical index:

  • Mounting type: Free hanging (In-Line)
  • Material of core: Ferrite
  • Applicable standards: GB20840-2014
  • Operating temperature: -25℃ ~ +60℃
  • Storage temperature: -30℃ ~ +90℃
  • Frequency range: 50Hz-1KHz
  • Waterproof grade: IP00
  • Dielectric strength: Input (bare conductor)/Output AC 800V/1min 50Hz Output/Housing AC 3.5KV/1min 50Hz



Applications:

Remote control of current measurement distributed PLC for processes in SCADA systems.
Load trend of monitor critical motor (compressor, fuel, etc.) and other loads up to 80A.
Convenient connection to power consumption submeter for energy monitoring.

Product Details

Technical index
Core TypeSplit-Core
Core materialFerrite
Mounting TypeFree Hanging(In-Line)
Size of the openingΦ10 mm
Rated Input5A-50A
Output TypeDC
Rated Output1V, 3V, 5V
Accuracy2%
Dielectric StrengthInput (bare conductor)/Output AC 800V/1min 50Hz
Frequency Range50Hz - 1KHz
Connection TypeCable
