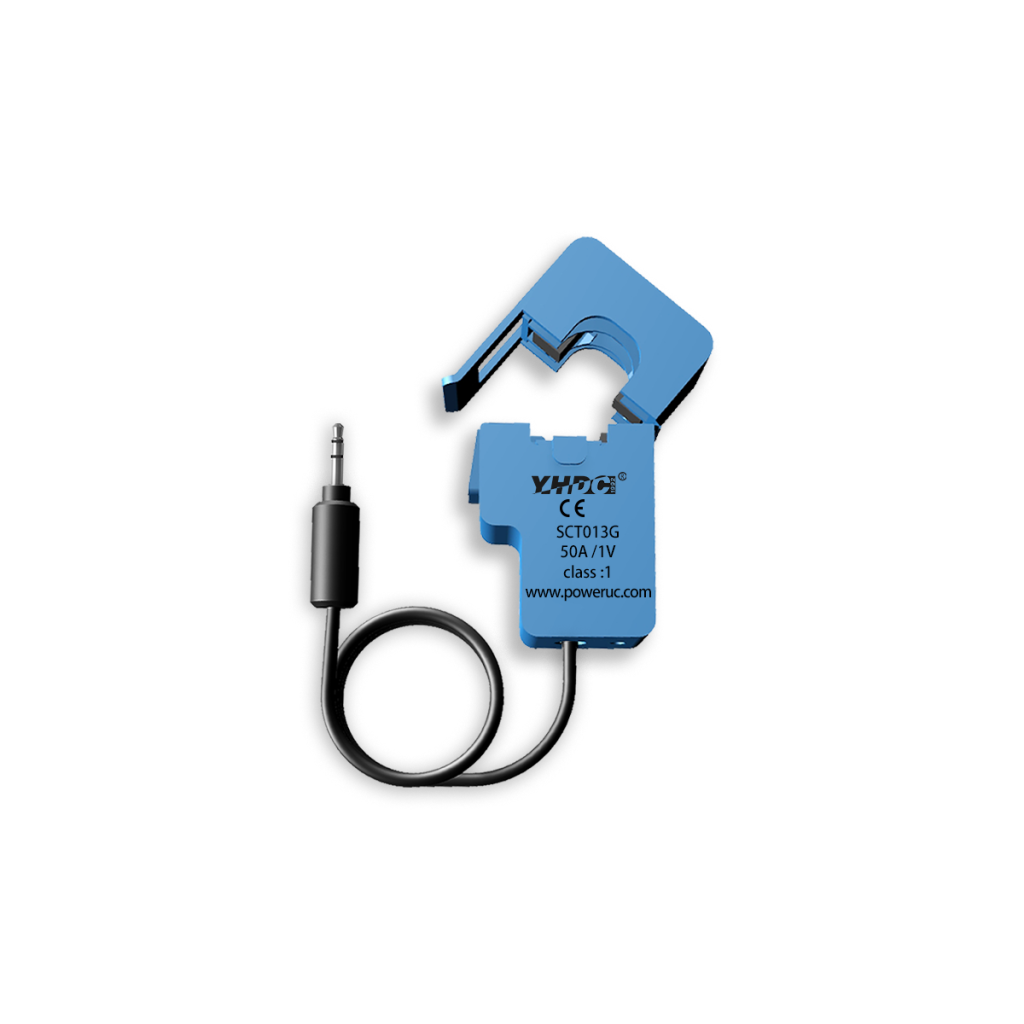

SCT013G

4.23 VAT excl.
Shipping calculated at checkout.

Overview

Introduce:

YHDC’s SCT013 series of split core current transformers have a patented appearance design to be small CT and easy to open yet maintain the accuracy required for kWh meters.There are different output methods such as RJ11, RJ45 and 3.5mm audio plug. The advantage of a split core CT is that it can be easily moved into position without disturbing or disconnecting the main cables it is monitoring.

Characteristic:

  • Safety lock buckle
  • easy installation
  • 3.5mm audio plug cable output
  • High dielectric strength



Technical index:

  • Mounting type: Free hanging (In-Line)
  • Material of core: Ferrite
  • Applicable standards: IEC 61869-2
  • Operating temperature: -25℃ ~ +70℃
  • Storage temperature: -30℃ ~ +90℃
  • Frequency range: 50Hz-1KHz
  • Waterproof grade: IP00
  • Dielectric strength:Input (bare conductor)/Output AC 3.5KV/1min 50Hz  Output/Housing AC 3.5KV/1min 50Hz



Applications:

Current measurement, monitoring and protection for electrical wiring and equipment,IoT energy monitoring systems.
Current and power measurement for electric motors,lighting,air compressor,heating and ventilation system,air-condition equipment and automation-control system.

Product Details

Technical index
Core TypeSplit-Core
Core materialFerrite
Mounting TypeFree Hanging(In-Line)
Size of the openingΦ13mm
Rated Input5A-100A
Output TypeAC
Rated Output50mA, 1V, 0.333V
Accuracy0.5%,1%
Dielectric StrengthAC 3.5KV/1min 50Hz (housing to output)
Frequency Range50Hz - 1KHz
Connection TypeCable
