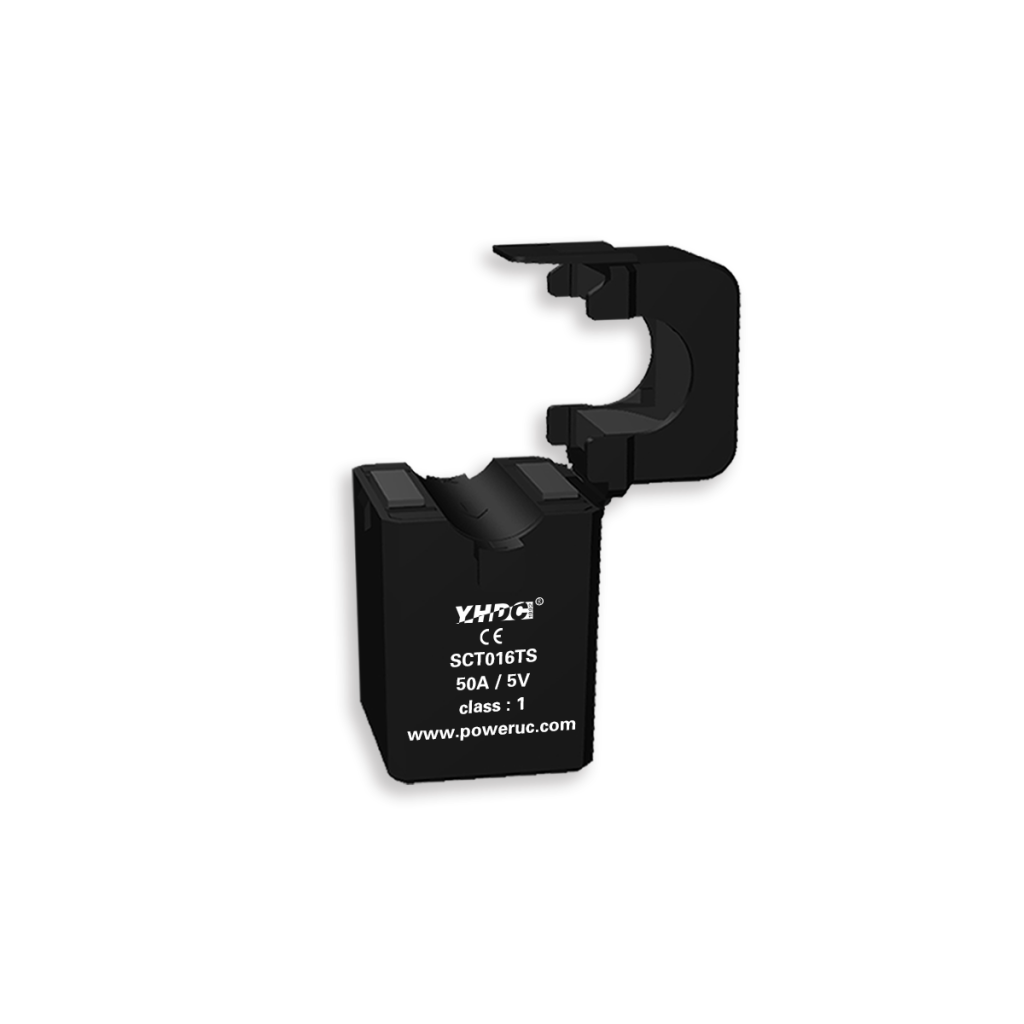

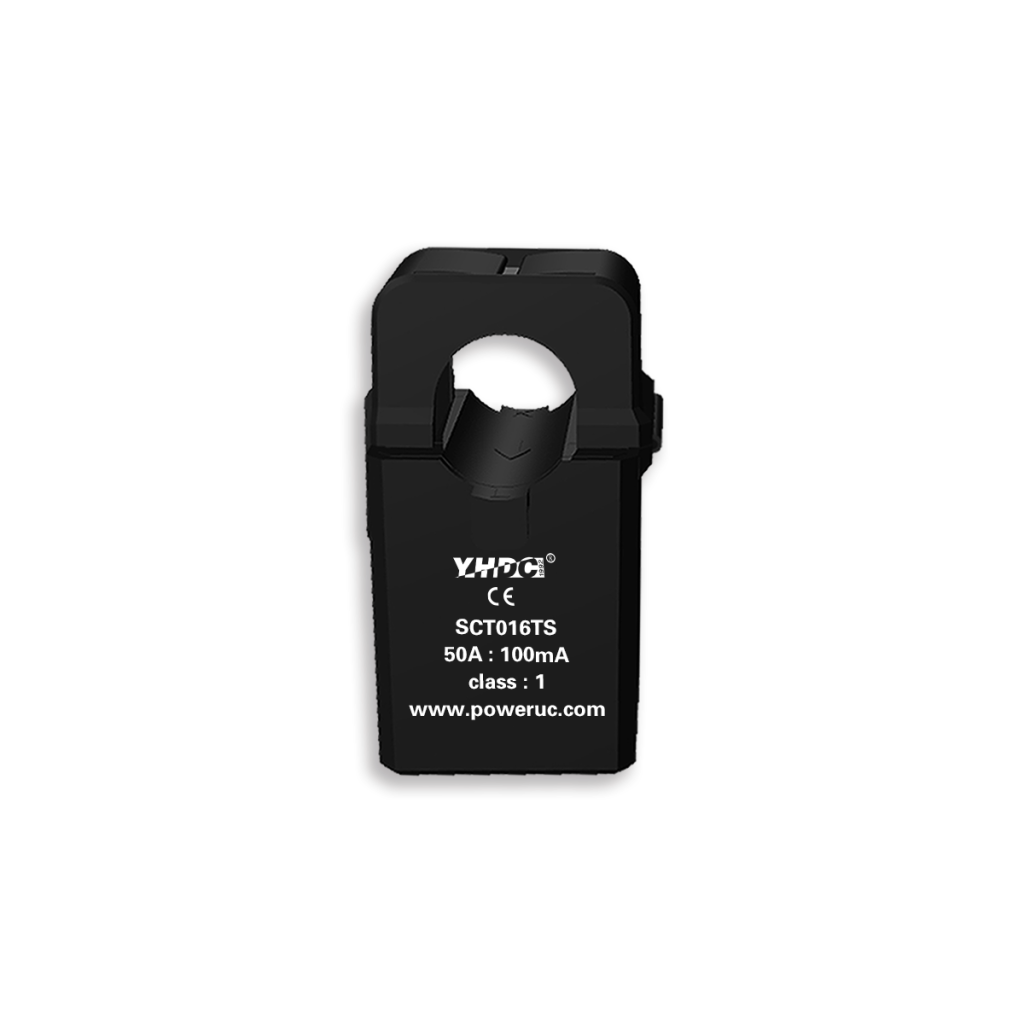

SCT016TS

4.214.40 VAT excl.
Shipping calculated at checkout.

Overview

Introduce:

YHDC’s SCT016 series split core current transformers feature a patented design, are compact and easy to open, and can achieve up to 0.5% accuracy. The clamp-on current transformers offer a variety of output options, such as RJ11, RJ45, and 3.5mm audio plugs. The advantage of a clamp-on current transformer is that it can be easily moved into place without disturbing or disconnecting the main cable it monitors.

Characteristic:

  • Safety lock buckle
  • Easy installation
  • Screw terminal output



Technical index:

  • Mounting type: Free hanging (In-Line)
  • Material of core: Laminated silicon steel
  • Applicable standards: IEC 61869-2
  • Operating temperature: -25℃ ~ +60℃
  • Storage temperature: -30℃ ~ +90℃
  • Frequency range: 50Hz-1KHz
  • Dielectric strength: Input (bare conductor)/Output AC 800V/1min 50HzOutput/Housing AC 3.5KV/1min 50Hz



Applications:

Current measurement, monitoring and protection for electrical wiring and equipment,IoT energy monitoring systems.
Current and power measurement for electric motors,lighting,air compressor,heating and ventilation system,air-condition equipment and automation-control system.

Product Details

Technical index
Core TypeSplit-Core
Core materialLaminated silicon steel
Mounting TypeFree Hanging(In-Line)
Size of the openingΦ16mm
Rated Input50A-160A
Output TypeAC
Rated Output40mA, 50mA, 0.1A, 1A, 0.333V, 1V, 3V, 5V
Accuracy0.5%, 1%
Dielectric StrengthInput (bare conductor)/Output AC 800V/1min 50Hz Output/housing AC 3.5KV/1min 50Hz
Frequency Range50Hz - 60Hz
Connection TypeScrew Terminal
