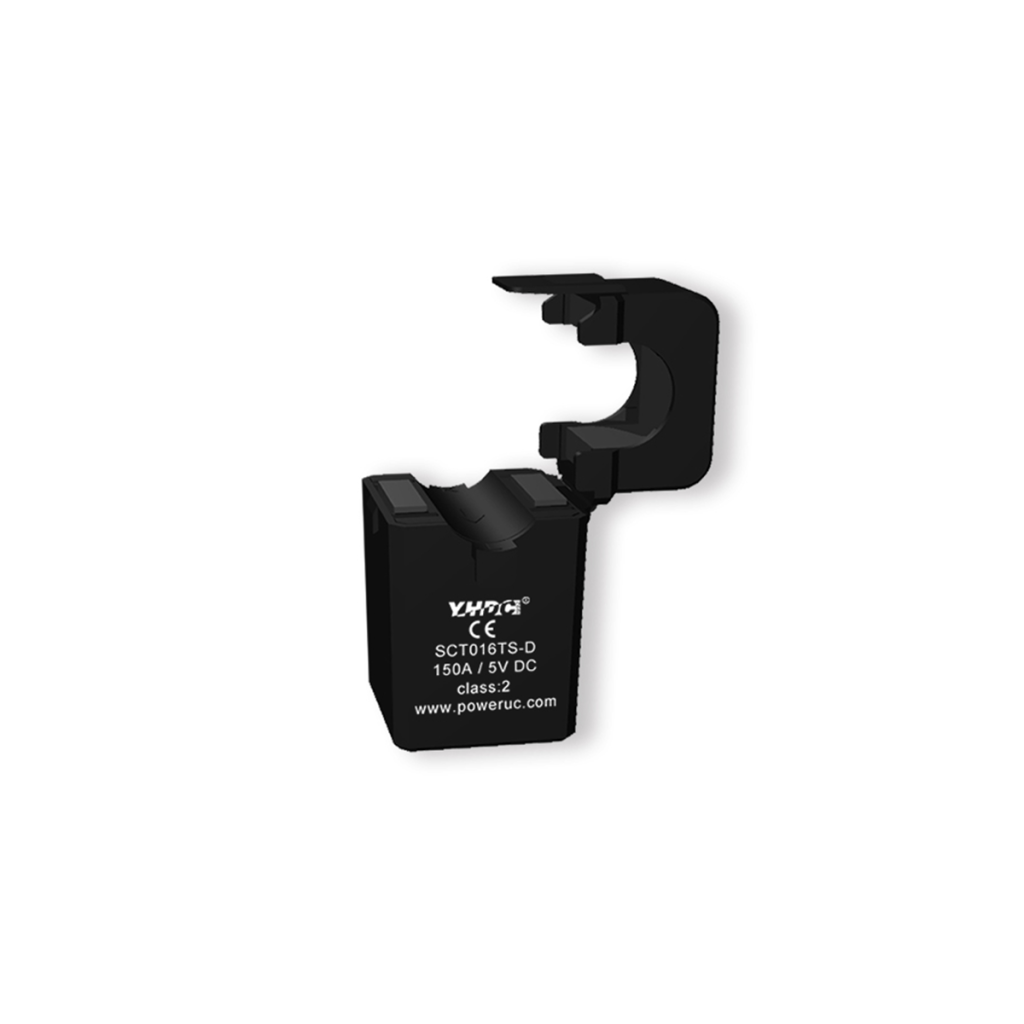

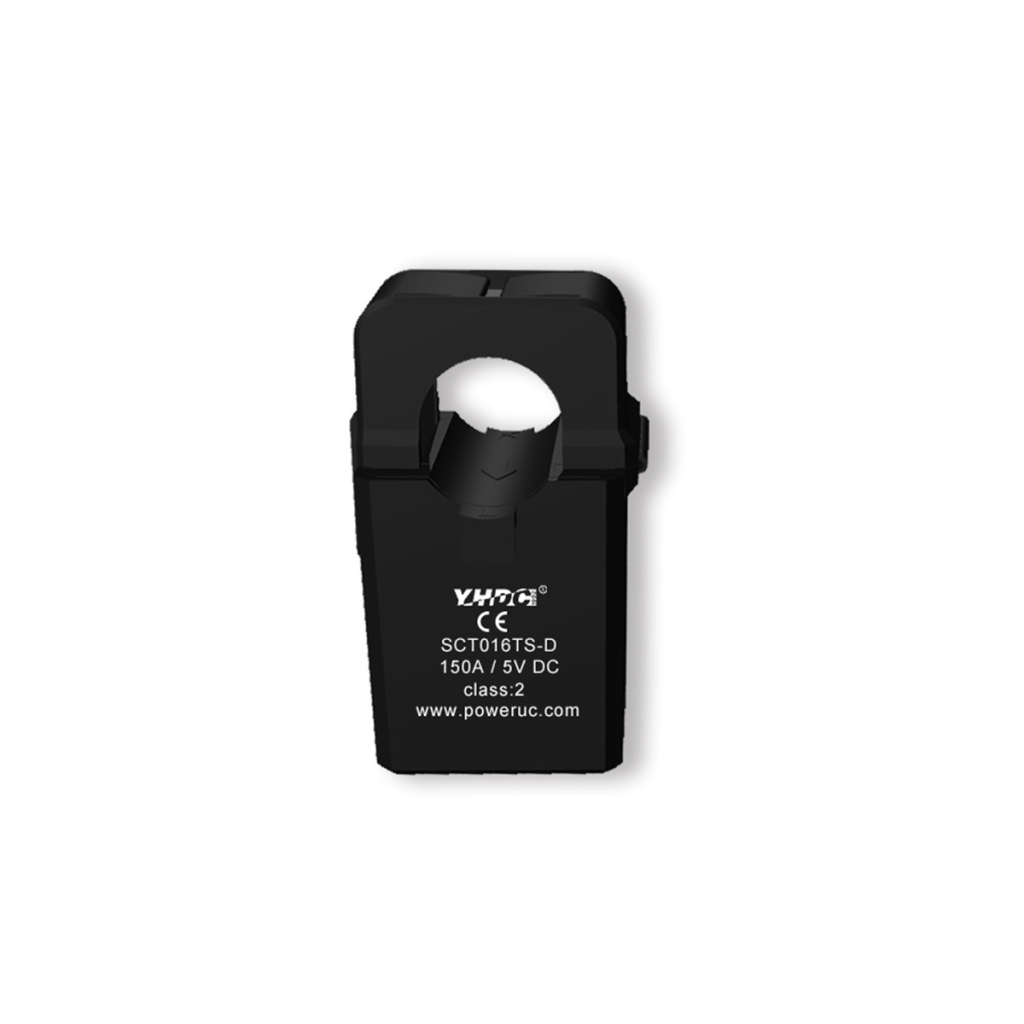

The SCT series split core current transformers are equipped with built-in transient voltage suppressors, used for current measurement, monitoring, and protection of AC motors, lighting equipment, air compressors, and more.
Material of core——Silicon steel sheet
Working voltage——Phase voltage≤720V
Working temperature——-25℃～+60℃
Storage temperature——-30℃～+90℃
Frequency range——50Hz～60Hz
Dielectric strength——Input（bare conductor）/output AC 800V/1min 5mA 50Hz
Output/Outer shell AC 3.5KV/1min 5mA 50Hz
Weight–85g
| Core Type | Split-Core |
| Core material | Silicon steel sheet |
| Mounting Type | Free Hanging(In-Line) |
| Size of the opening | Φ16mm |
| Rated Input | 20A-150A |
| Output Type | DC |
| Rated Output | 1V, 3V, 5V |
| Accuracy | 2% |
| Dielectric Strength | Input (bare conductor)/Output AC 800V/1min 50Hz Output/housing AC 3.5KV/1min 50Hz |
| Frequency Range | 50Hz - 60Hz |
| Connection Type | Screw Terminal |
