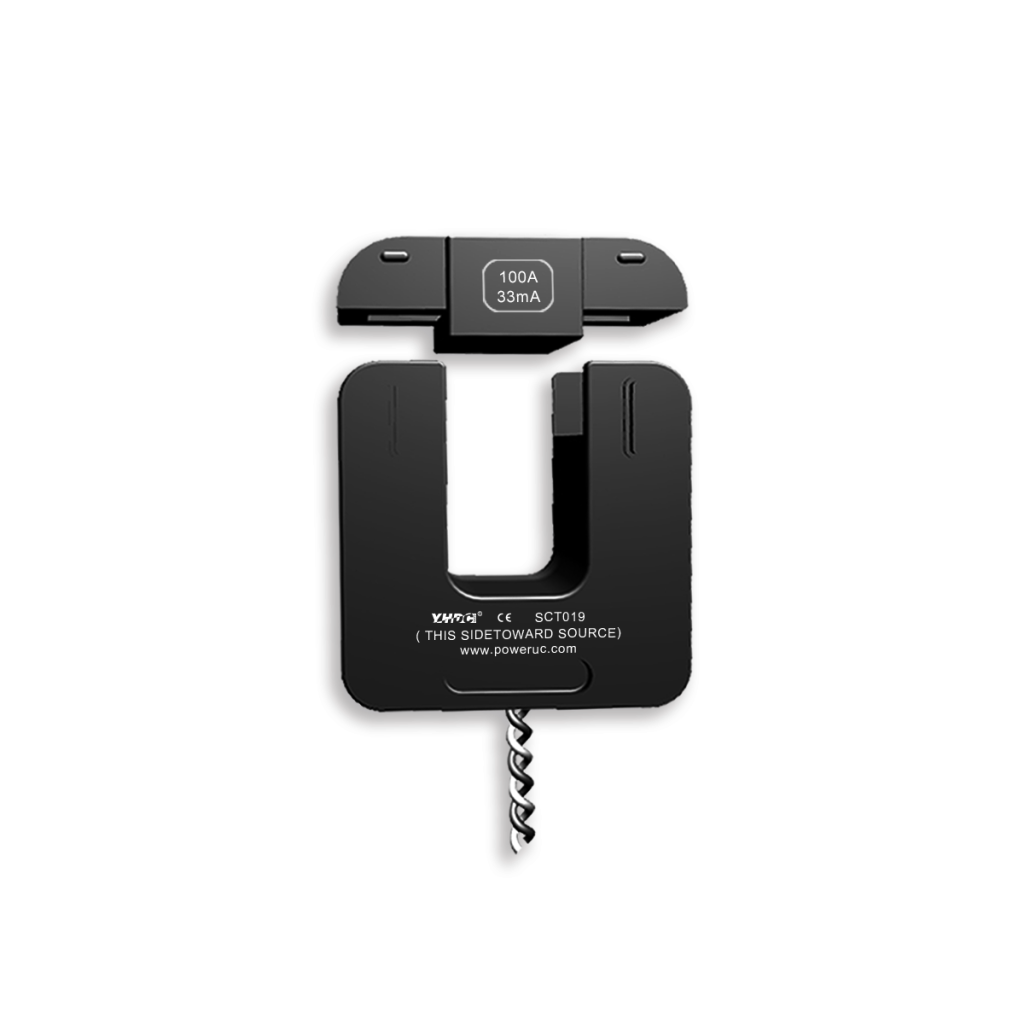

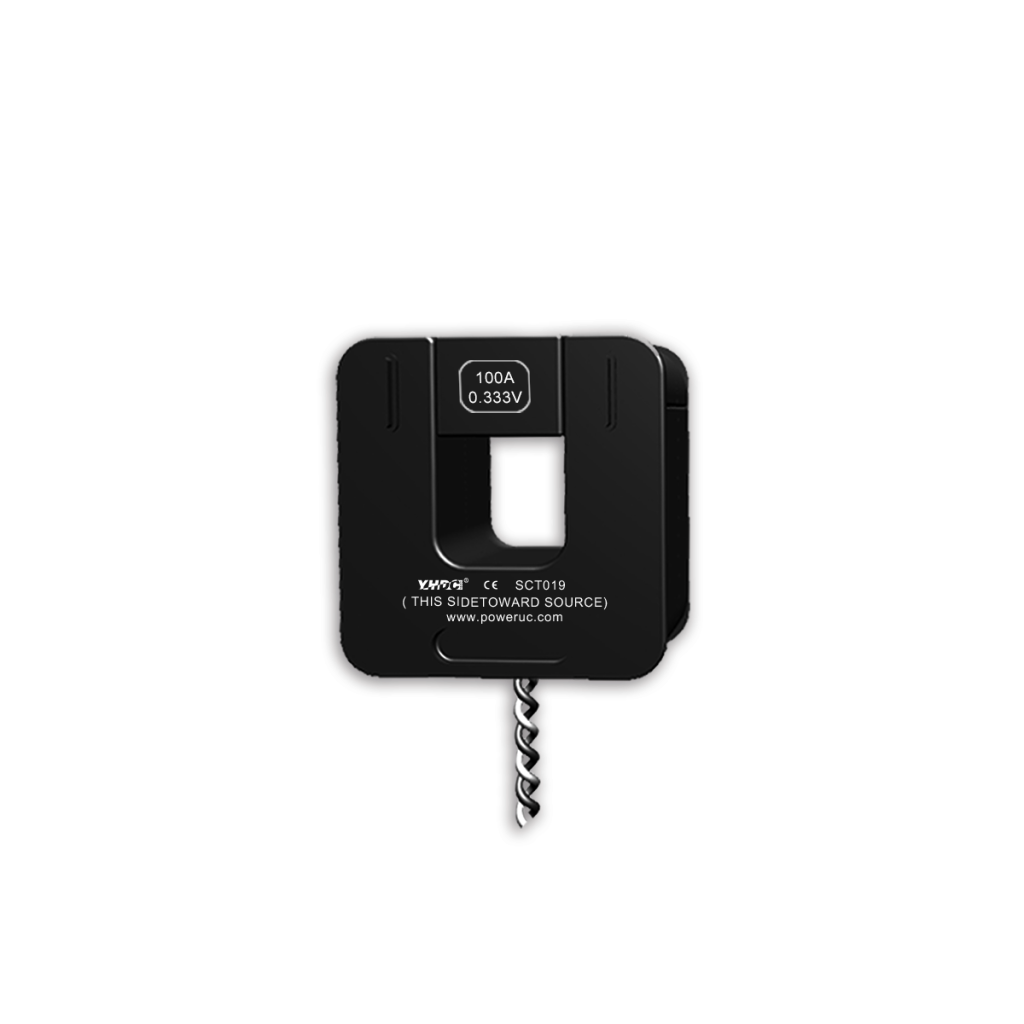

The SCT series split core current transformers are equipped with built-in transient voltage suppressors, used for current measurement, monitoring, and protection of AC motors, lighting equipment, air compressors, and more.
Safety lock buckle
easy installation
Mounting type: Free hanging (In-Line)
Material of core: Permalloy
Applicable standards: GB20840-2014
Operating temperature: -25℃ ~ +70℃
Storage temperature: -40℃ ~ +85℃
Frequency range: 20Hz-1KHz
Waterproof grade: IP00
Dielectric strength: 3.5KV 50Hz 1min(enclosure/output)
| Core Type | Split-Core |
| Core material | Permalloy |
| Mounting Type | Free Hanging(In-Line) |
| Size of the opening | Φ19mm |
| Rated Input | 50A-200A |
| Output Type | AC |
| Rated Output | 33mA, 0.333V |
| Accuracy | 0.5% |
| Dielectric Strength | AC 3.5KV/1min 50Hz (housing to output) |
| Frequency Range | 20Hz - 1KHz |
| Connection Type | Cable |
