13,61 VAT excl.
Shipping calculated at checkout.

Overview

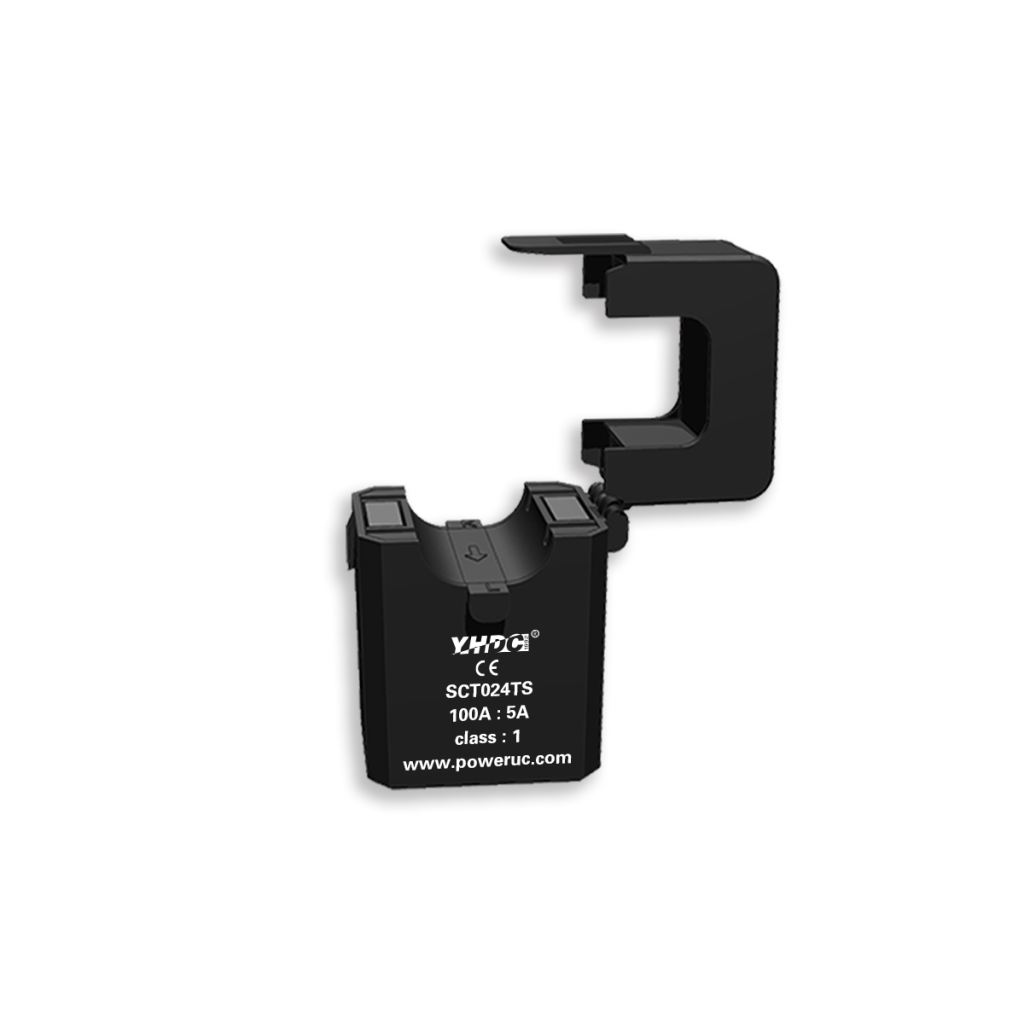

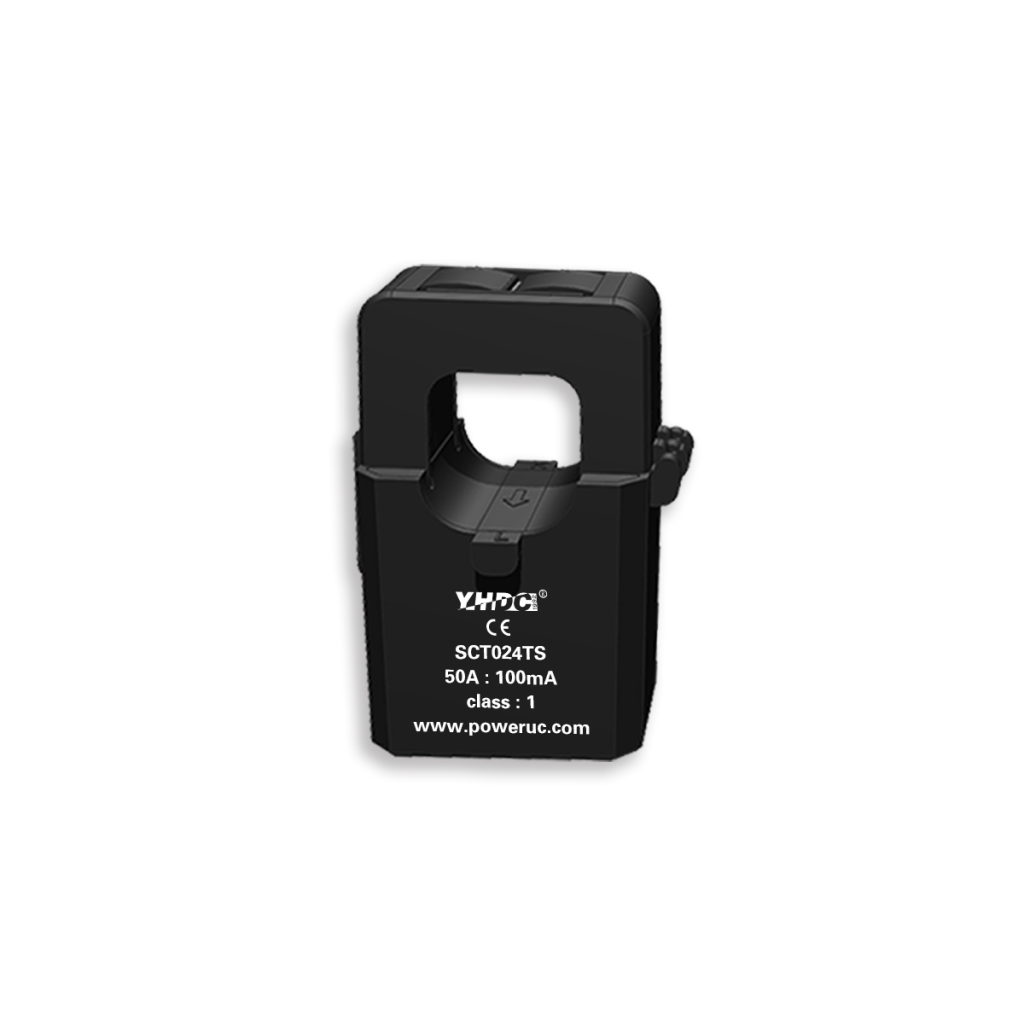

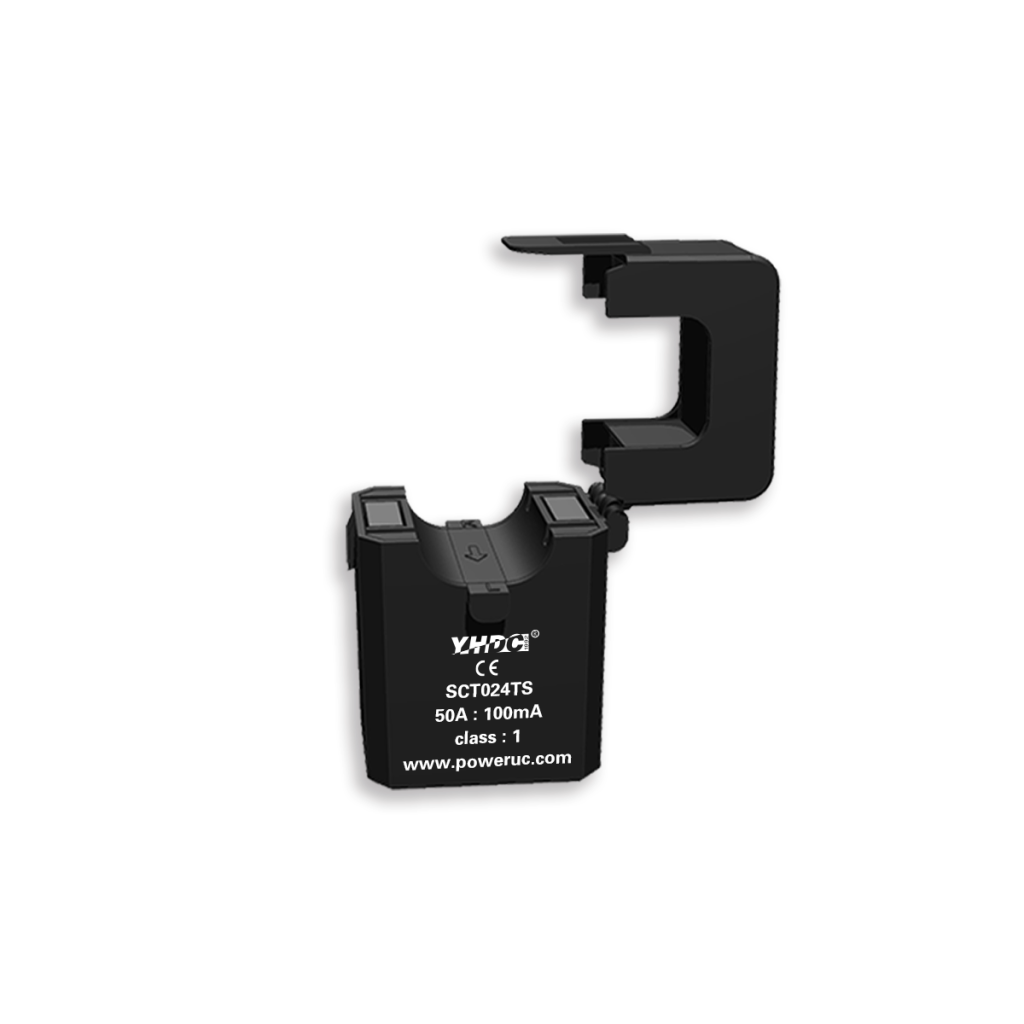

The SCT series split core current transformers are equipped with built-in transient voltage suppressors, used for current measurement, monitoring, and protection of AC motors, lighting equipment, air compressors, and more.

Characteristics:

Safety lock buckle

easy installation

screw terminal output

Technical index:

Mounting type: Free hanging (In-Line)

Material of core: Laminated silicon steel

Applicable standards: GB20840-2014

Operating temperature: -25℃ ~ +60℃

Storage temperature: -30℃ ~ +90℃

Frequency range: 50Hz-60Hz

Waterproof grade: IP00

Dielectric strength: Input (bare conductor)/Output AC 800V/1min 50Hz

Output/housing AC 3.5KV/1min 50Hz

Product Details

Technical index
Core TypeSplit-Core
Core materialSilicon steel sheet
Mounting TypeFree Hanging(In-Line)
Size of the openingΦ24mm
Rated Input50A-400A
Output TypeAC
Rated Output20mA-5A, 0.333V, 1V, 3V, 5V
Accuracy0.5%, 1%, 3%
Dielectric StrengthAC 3.5KV/1min 50Hz (housing to output)
Frequency Range50Hz - 60Hz
Connection TypeScrew Terminal
