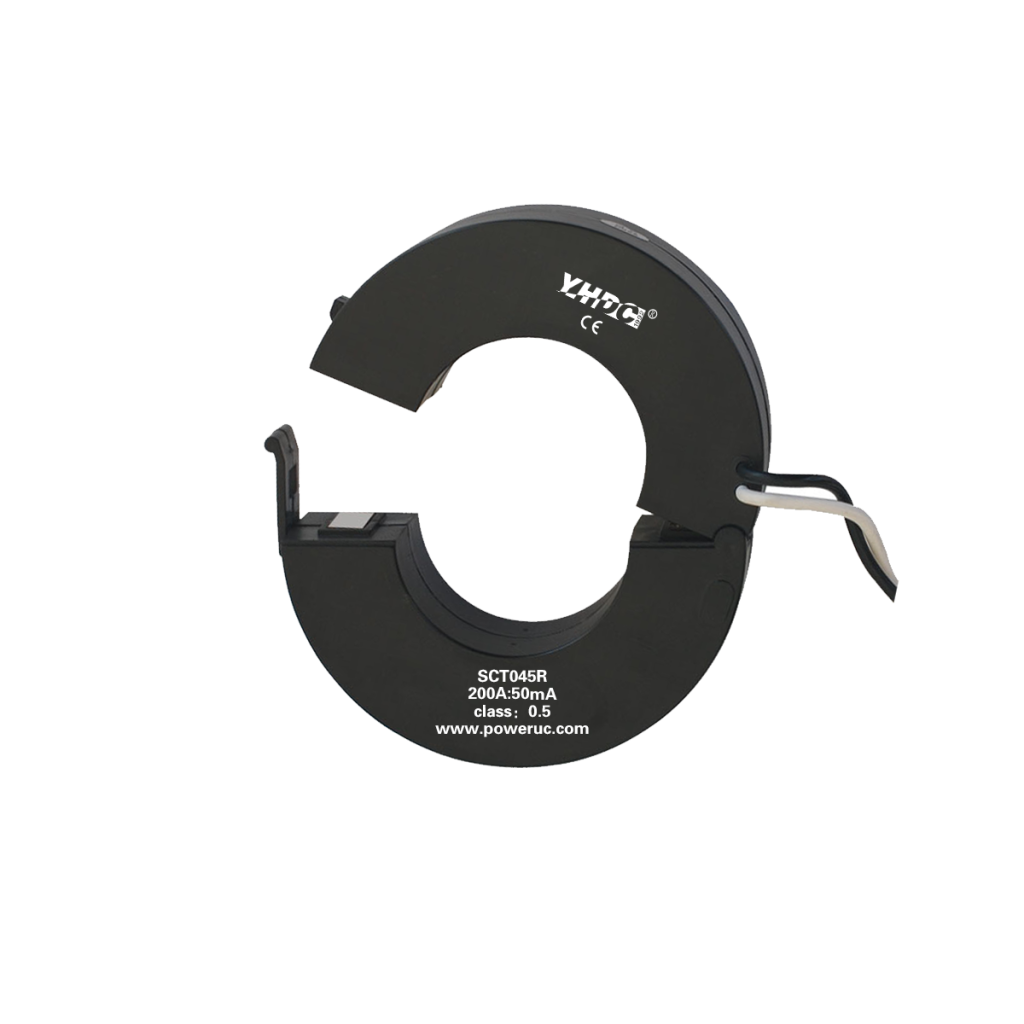

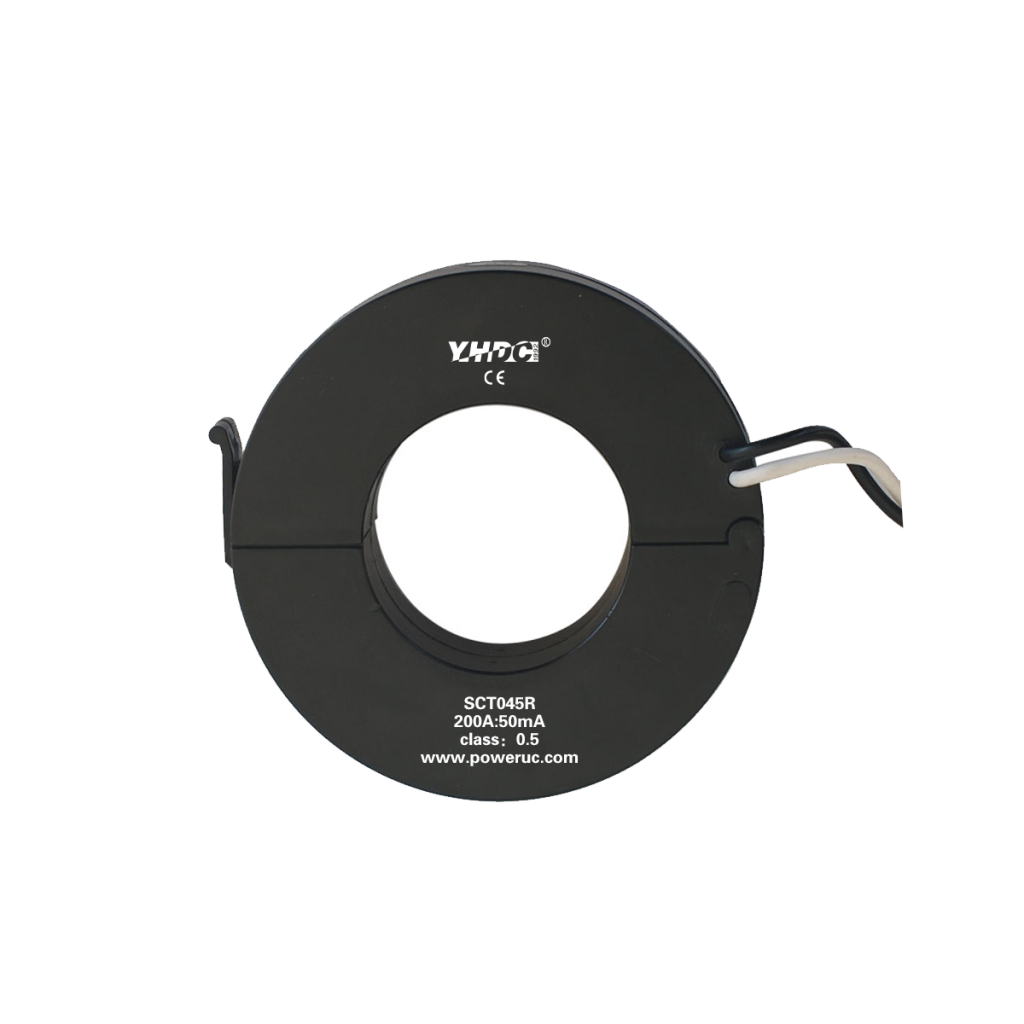

The SCT series split core current transformers are equipped with built-in transient voltage suppressors, used for current measurement, monitoring, and protection of AC motors, lighting equipment, air compressors, and more.
Safety lock buckle
Easy installation
Cable output
The length can be customized
Free hanging (In-Line) mounting
Portable instrument
Household metering
Monitor motor load
Small volume
Low cost
High turns
High precision
Material of core: Laminated silicon steel
Working voltage: Phase voltage≤720V
Operating temperature: -30℃ ~ +65℃
Storage temperature: -40℃ ~ +85℃
Frequency range: 50Hz-60Hz
Waterproof grade: IP00
Dielectric strength:Input（bare conductor）/output AC 800V/1min 5mA 50Hz
output/outer shell AC 3.5KV/1min 5mA 50Hz)
Weight: 325g
| Core Type | Split-Core |
| Core material | Laminated silicon steel |
| Mounting Type | Free Hanging(In-Line) |
| Size of the opening | Φ45mm |
| Rated Input | 100A-600A |
| Output Type | AC |
| Rated Output | 50mA, 0.1A, 1A, 5A, 0.333V |
| Accuracy | 0.5%, 1%, 3% |
| Dielectric Strength | AC 3.5KV/1min 50Hz (housing to output) |
| Frequency Range | 50Hz - 60Hz |
| Connection Type | Cable |
