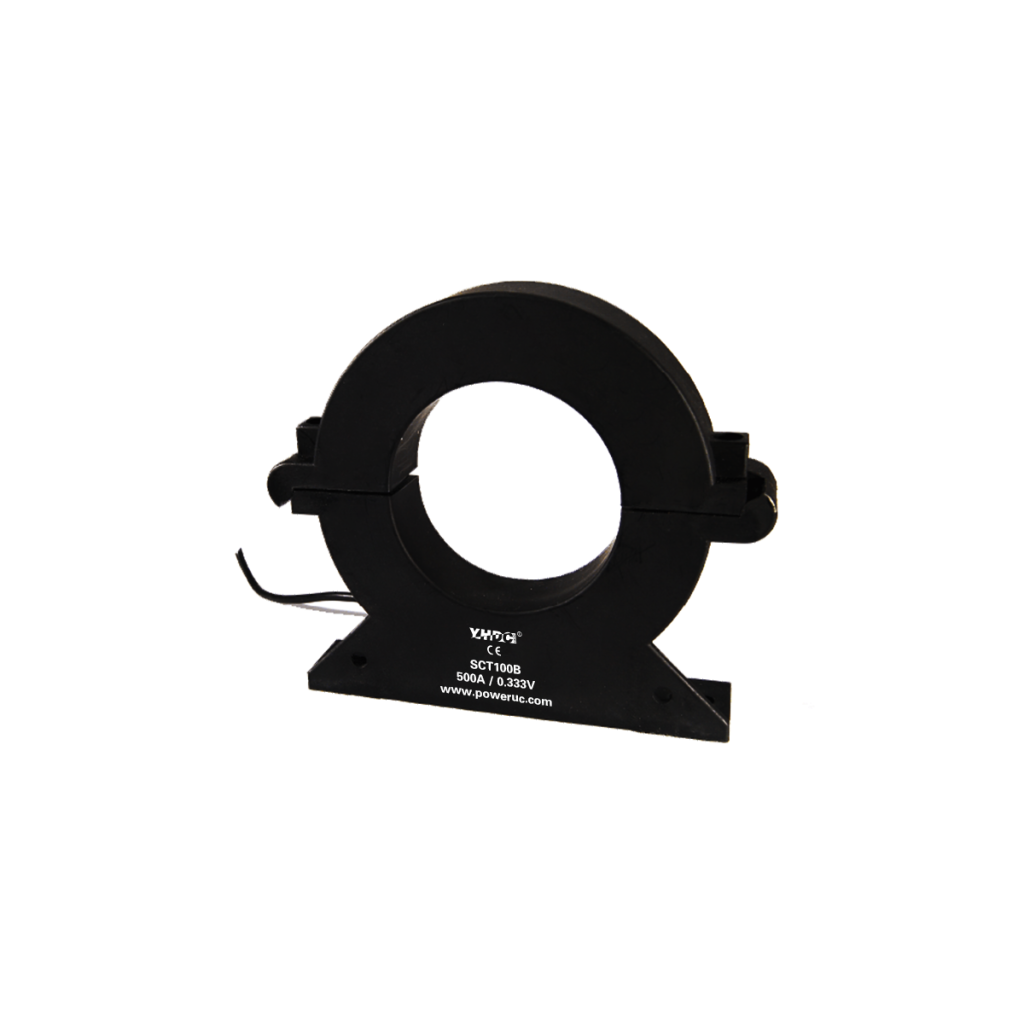

The SCT series split core current transformers are equipped with built-in transient voltage suppressors, used for current measurement, monitoring, and protection of AC motors, lighting equipment, air compressors, and more.
Opening and closing structure
Easy installation
Cable output
Plate type mounting
Portable instrument
Household metering
Monitor motor load
Economic and practical
Improve efficiency
High cost performance
Material of core: Laminated silicon steel
Working voltage: Phase voltage≤720V
Operating temperature: -20℃ ~ +60℃
Storage temperature: -25℃ ~ +65℃
Frequency range: 50Hz-60Hz
Waterproof grade: IP00
Dielectric strength: output（outputbare conductor）AC 3.5KV/1min 5mA 50Hz
Weight: 1070g
| Core Type | Split-Core |
| Core material | Laminated silicon steel |
| Mounting Type | Plate |
| Size of the opening | Φ100mm |
| Rated Input | 200A-3000A |
| Output Type | AC |
| Rated Output | 1A, 5A, 0.333V |
| Accuracy | 0.5, 1, 3, 1% |
| Dielectric Strength | AC 3.5KV/1min 50Hz (housing to output) |
| Frequency Range | 50Hz - 60Hz |
| Connection Type | Cable |
