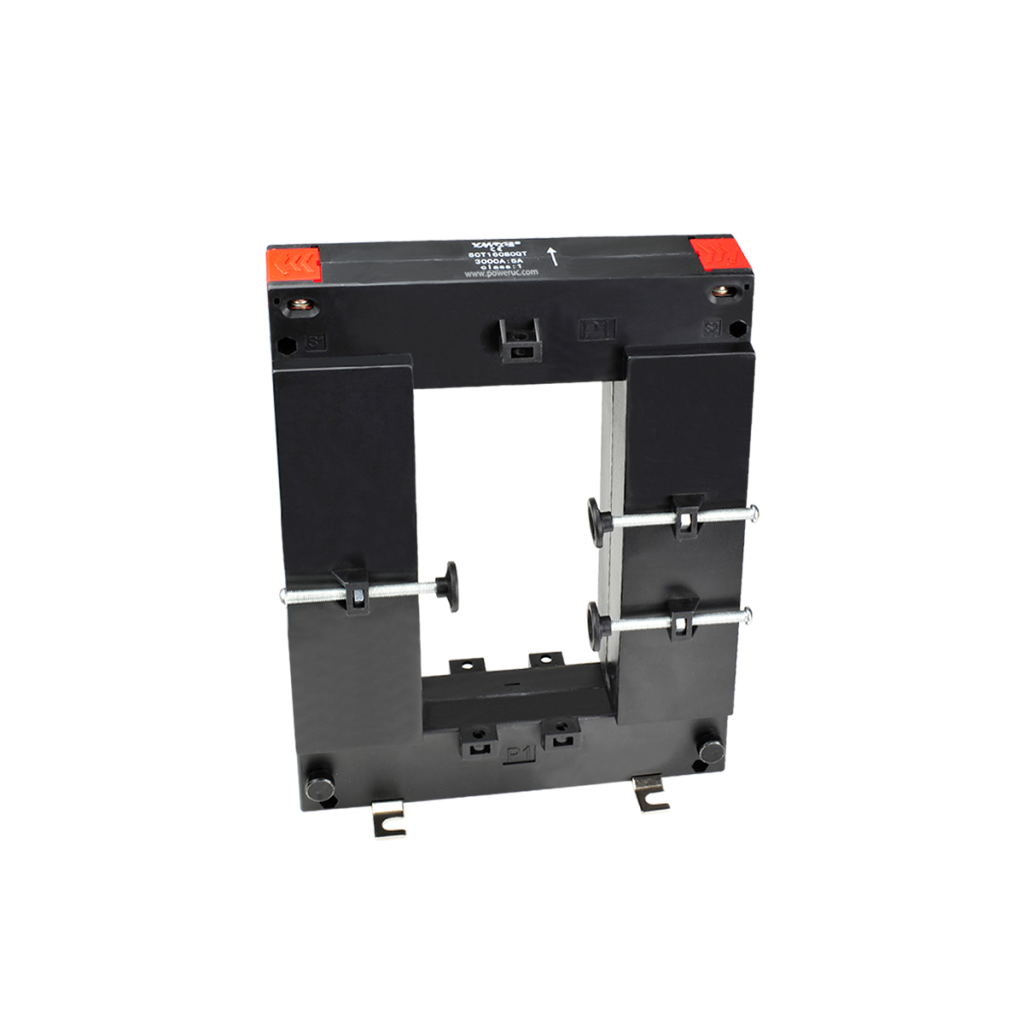

The SCT series split core current transformers are equipped with built-in transient voltage suppressors, used for current measurement, monitoring, and protection of AC motors, lighting equipment, air compressors, and more.
Rectangular hole
Terminal output
Sub-plate mounting/Platen mounting optional
Ac motor
Lighting equipment
Air compressor etc. current measurements
Monitoring and protection
Agricultural network renovation project
Adopt high permeability silicon steel
Good linearity
High sensitivity
Terminal design in high enough safe distance at both ends
The end cover is of buckle structure
High mechanical strength
Easy installation
Various sizes available (other models of the same series)
Material of core: Laminated silicon steel
Working voltage: Phase voltage≤720V
Operating temperature: -20℃ ~ +60℃
Storage temperature: -25℃ ~ +90℃
Frequency range: 50Hz-60Hz
Waterproof grade: IP00
Dielectric strength: Output/shell AC 3.5KV/1min 5mA 50Hz
Weight:4055g（for reference only）
| Core Type | Split-Core |
| Core material | Silicon steel sheet |
| Mounting Type | Free Hanging(In-Line), Plate |
| Size of the opening | 51*131mm |
| Rated Input | 1000A-5000A |
| Output Type | AC |
| Rated Output | 1A, 5A, 0.333V |
| Accuracy | 0.2S, 0.2, 0.5S, 0.5, 1, 1% |
| Dielectric Strength | AC 3.5KV/1min 50Hz (housing to output) |
| Frequency Range | 50Hz - 60Hz |
| Connection Type | Screw Terminal |
