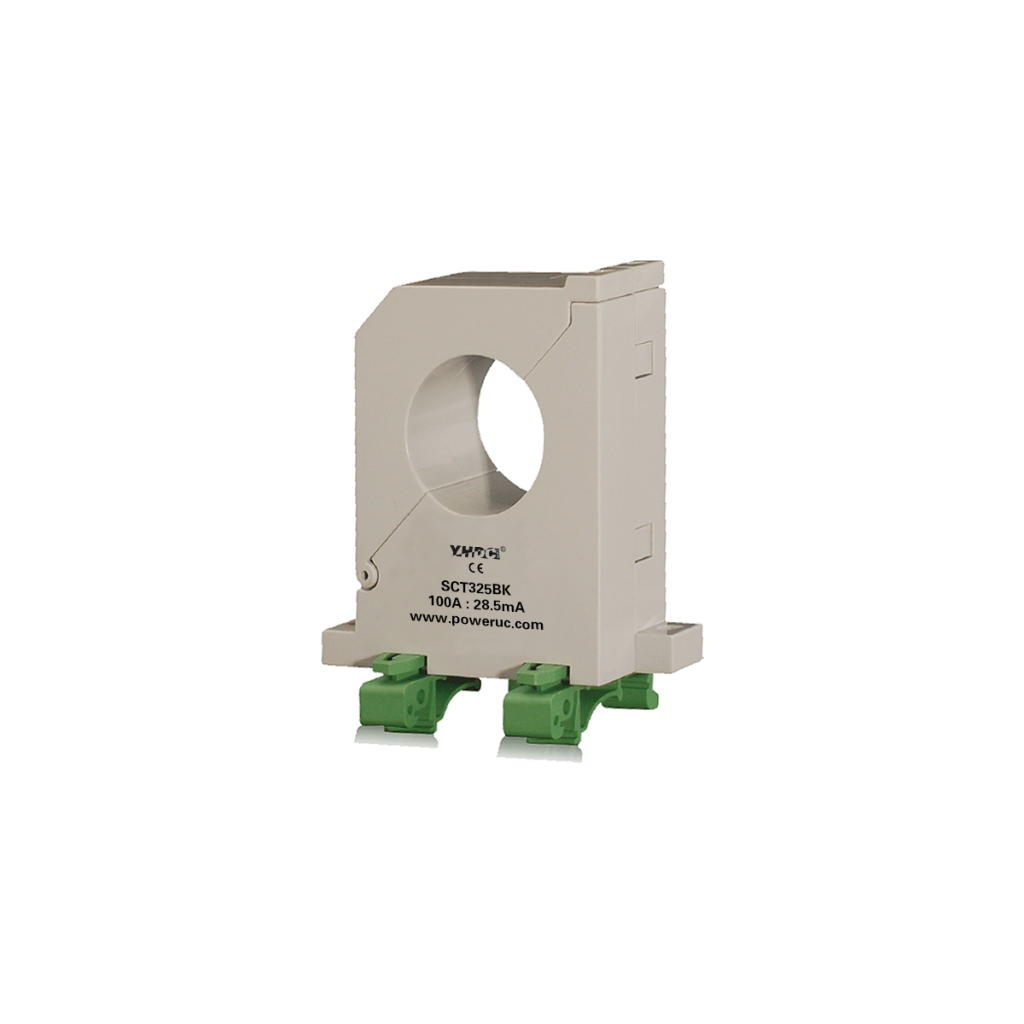

SCT325BK
SCT325BK

SCT325BK

19,98 VAT excl.
Shipping calculated at checkout.

Overview

The SCT series split core current transformers are equipped with built-in transient voltage suppressors, used for current measurement, monitoring, and protection of AC motors, lighting equipment, air compressors, and more.

Characteristics:

Round window

din-rail or sub-plate mount

quick plug terminal output

Technical index:

Material of core: Permalloy

Flame resistance:UL94-V0

Applicable standards: GB1208-2006

Operating temperature:-30℃~+65℃

Storage temperature:-40℃~+85℃

Work voltage:720V

Frequency range:20Hz-20KHz

Waterproof grade: IP00

Dielectric strength:3.5KV 50Hz 1min

Product Details

Technical index
Core TypeSplit-Core
Core materialPermalloy
Mounting TypeDIN-Rail, Plate
Size of the openingΦ32.5mm
Rated Input100A
Output TypeAC
Rated Output28.5mA
Accuracy1%
Dielectric StrengthAC 3.5KV/1min 50Hz (housing to output)
Frequency Range20Hz - 20KHz
Connection TypeScrew Terminal
