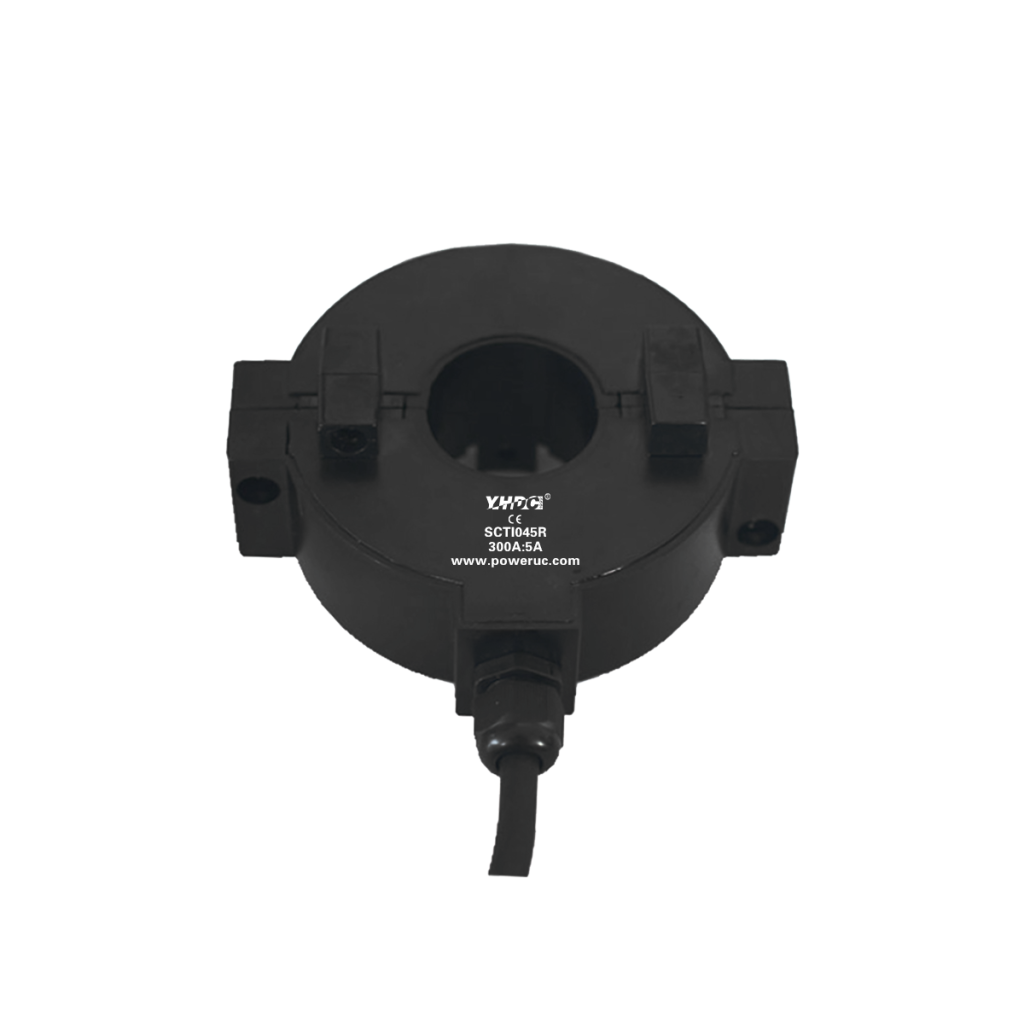

The model SCTI045R split core CT is a 45mm core diameter outdoor split core current transformers . can be applied to test, control, display and record the running of the electrical equipment, and to protect the equipment against the damage, in the AC circuit with the rated voltage value below 720V and the frequency of 50-60Hz.The product can also be applied from a complete set of transformer The OCT outdoor split core current transformer, a highly reliable and robust outdoor current transformer designed to withstand harsh environmental conditions. With its excellent waterproof performance and IP65 rating, the SCTI045R is specifically designed for outdoor applications where protection against moisture and water ingress is essential.
| Core Type | Split-Core |
| Core material | Laminated silicon steel |
| Mounting Type | Free Hanging(In-Line) |
| Size of the opening | Φ45.5mm |
| Rated Input | 200A-600A |
| Output Type | AC |
| Rated Output | 5A |
| Accuracy | 0.5S, 0.5, 1 |
| Dielectric Strength | AC 3.5KV/1min 50Hz (housing to output) |
| Frequency Range | 50Hz - 60Hz |
| Connection Type | Cable |
