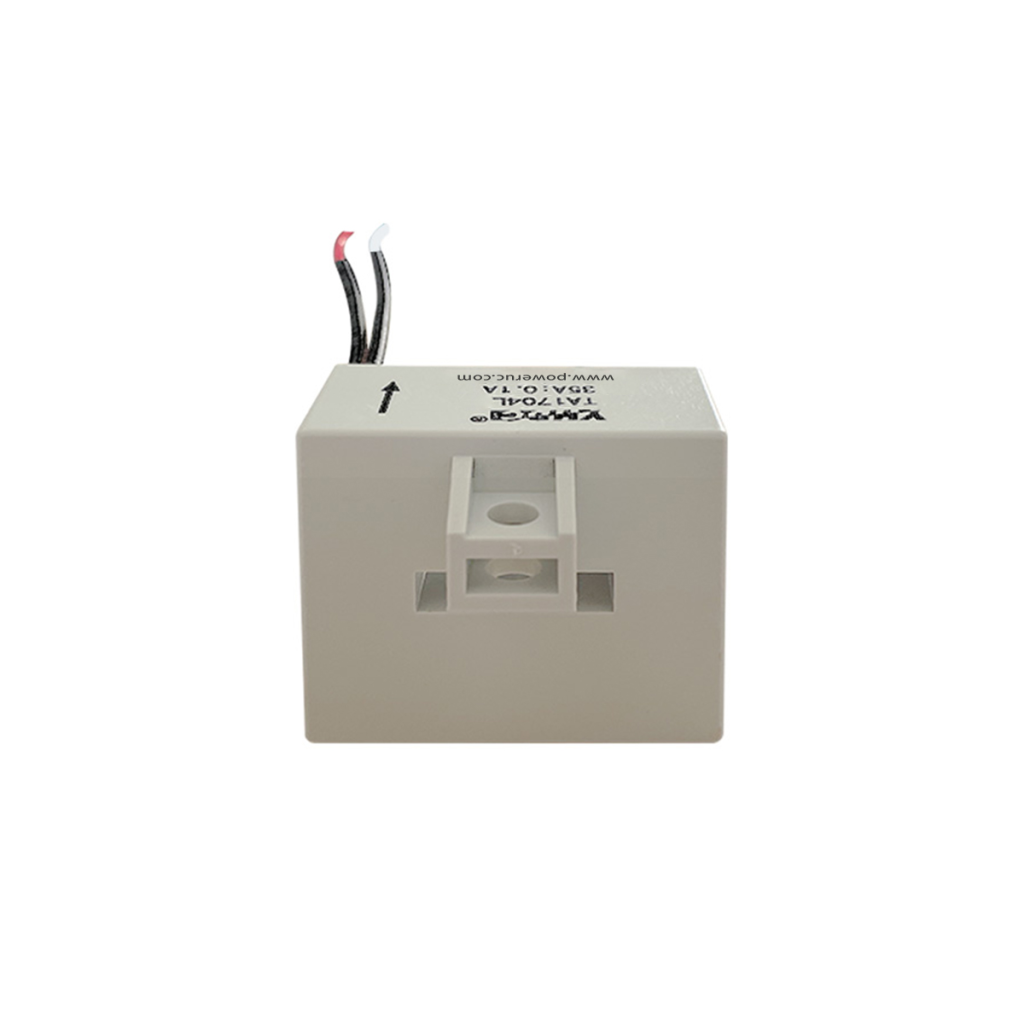

Directly fixed on the copper platoon of 17×4, fully enclosed, mechanical and environmental with excellent performance, strong capability of voltage isolation, safe and reliable.
Mounting type：Free hanging (In-Line)
Material of the core： Laminated silicon steel
Flame resistance：UL94-V0
Applicable standards: GB20840-2014
Operating temperature：-20℃～+70℃
Storage temperature：-30℃～+80℃
Work frequency： 50HZ-60Hz
Dielectric strength：6KV 50Hz 1min
| Core Type | Solid-Core |
| Core material | Laminated silicon steel |
| Mounting Type | Free Hanging(In-Line) |
| Size of the opening | 4×17mm |
| Rated Input | 15A-75A |
| Output Type | AC |
| Rated Output | 0.1A |
| Dielectric Strength | 6KV 50Hz 1min |
| Frequency Range | 50Hz - 60Hz |
| Connection Type | Cable |
