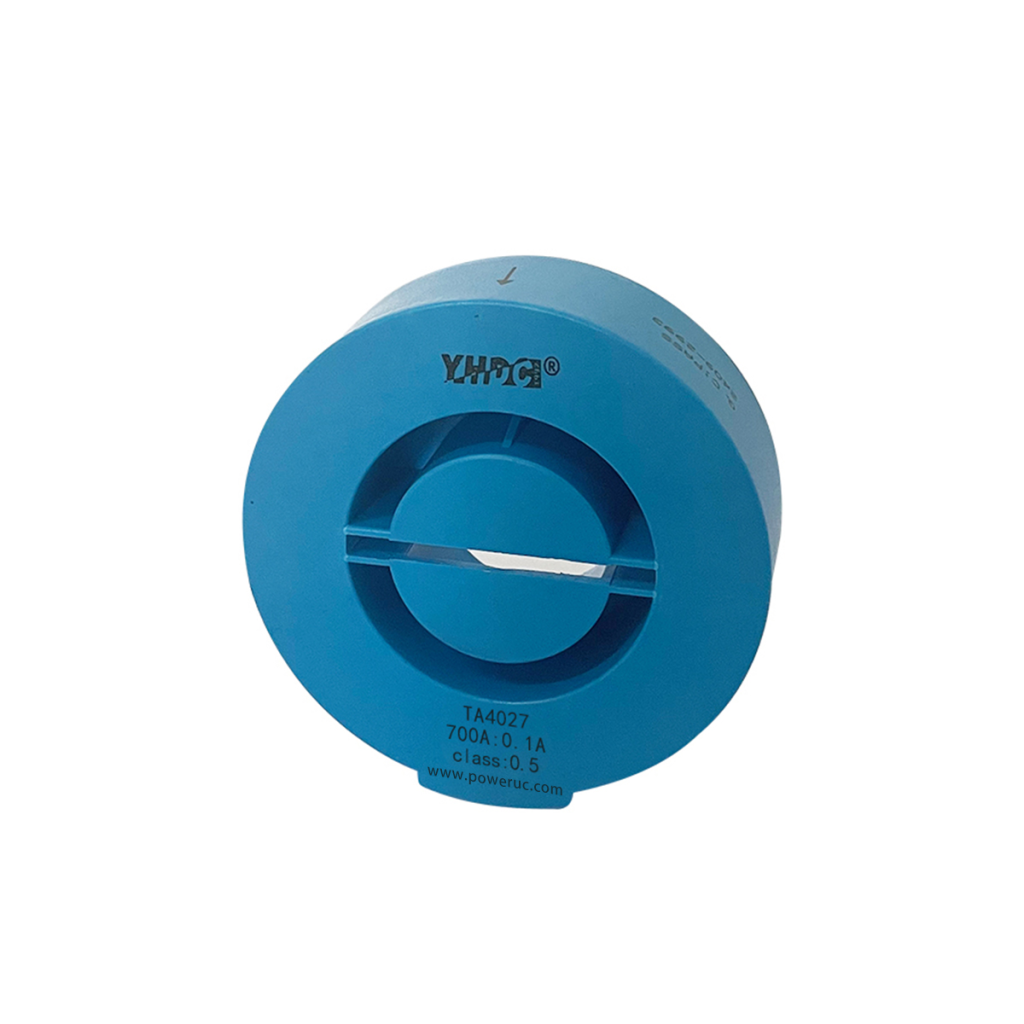

Epoxy resin encapsulated, laminated silicon steel, small size, fully enclosed, electrical load remote monitoring, as the input signal of the electronic control system, phase loss indication, electricity measurement, motor running state monitoring.
Mounting type：Free hanging
Material of the core： Laminated silicon steel
Flame resistance：UL94-V0
Applicable standards: GB20840-2014
Operating temperature：-20℃～+70℃
Storage temperature：-30℃～+80℃
Frequency range： 50HZ-60Hz
Dielectric strength：3.5KV 50Hz 1min
| Core Type | Solid-Core |
| Core material | Laminated silicon steel |
| Mounting Type | Free Hanging(In-Line) |
| Size of the opening | 2.7×70mm |
| Rated Input | 500A, 600A, 700A |
| Output Type | AC |
| Rated Output | 0.1A, 0.2A |
| Dielectric Strength | 3.5KV 50Hz 1min |
| Frequency Range | 50Hz - 60Hz |
| Connection Type | Welding piece |
