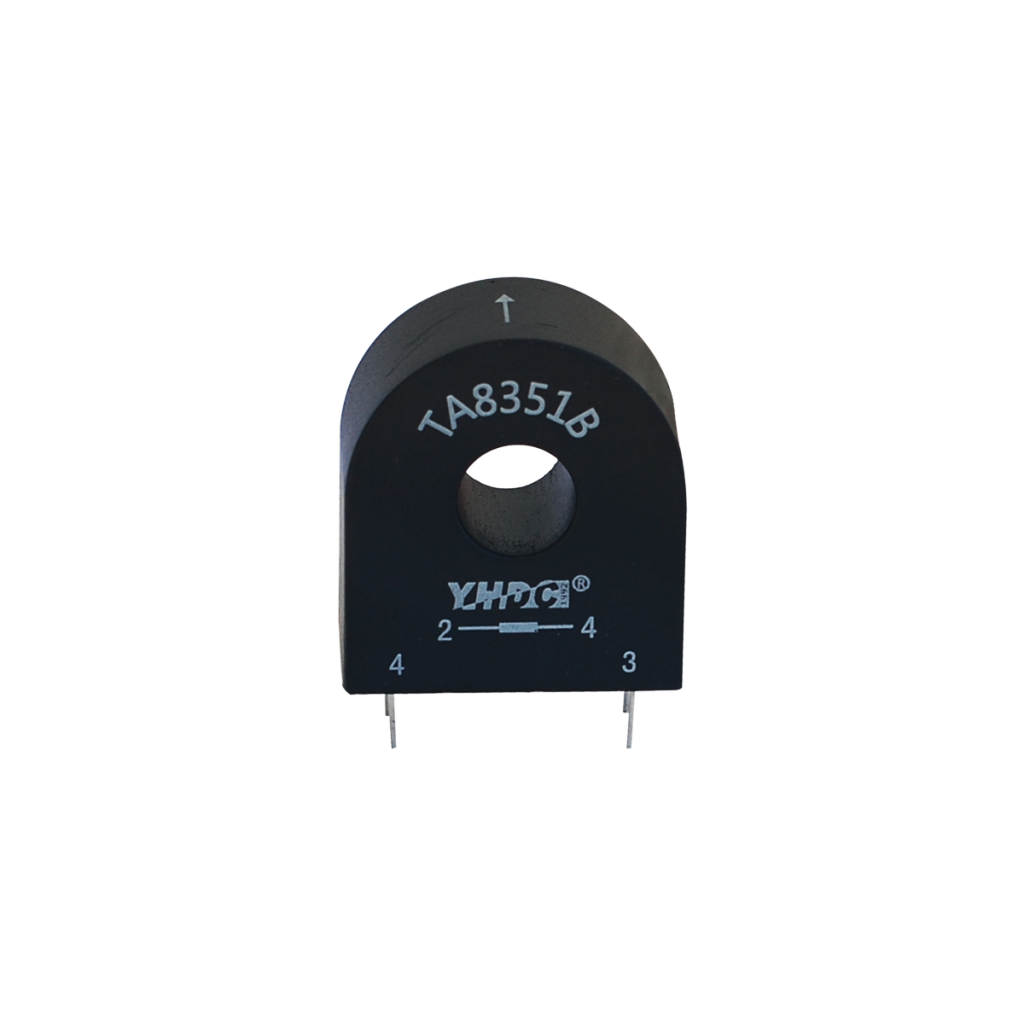

TA8351B

2.43 VAT excl.
Shipping calculated at checkout.

Overview

Introduce:

The precision current transformers features a fully encapsulated nanocrystalline magnetic core with epoxy resin encapsulation, providing excellent mechanical properties and high insulation strength. It has a linearity of better than 0.2% and operates over a frequency range of 20Hz to 20KHz.

Applications:

Industrial meters
Substation MV/ LV feeder monitoring
Data Logger in Digital Fault Recorders
Inverter controlling
Power quality analyzer
HEMS(Home Energy Management System) / BEMS(Building Energy Management System)/ FEMS(Factory Energy Management System)
EV charge stand / cable

Product Details

Technical index
Core TypeSolid-Core
Core materialNanocrystalline
Mounting TypePCB
Size of the openingΦ12.2mm
Rated Input100A
Output TypeAC
Rated Output0.1A, 50mA, 33.3mA
Dielectric Strength3.5KV 50Hz 1min
Frequency Range20Hz - 20KHz
Connection TypePins

Download
