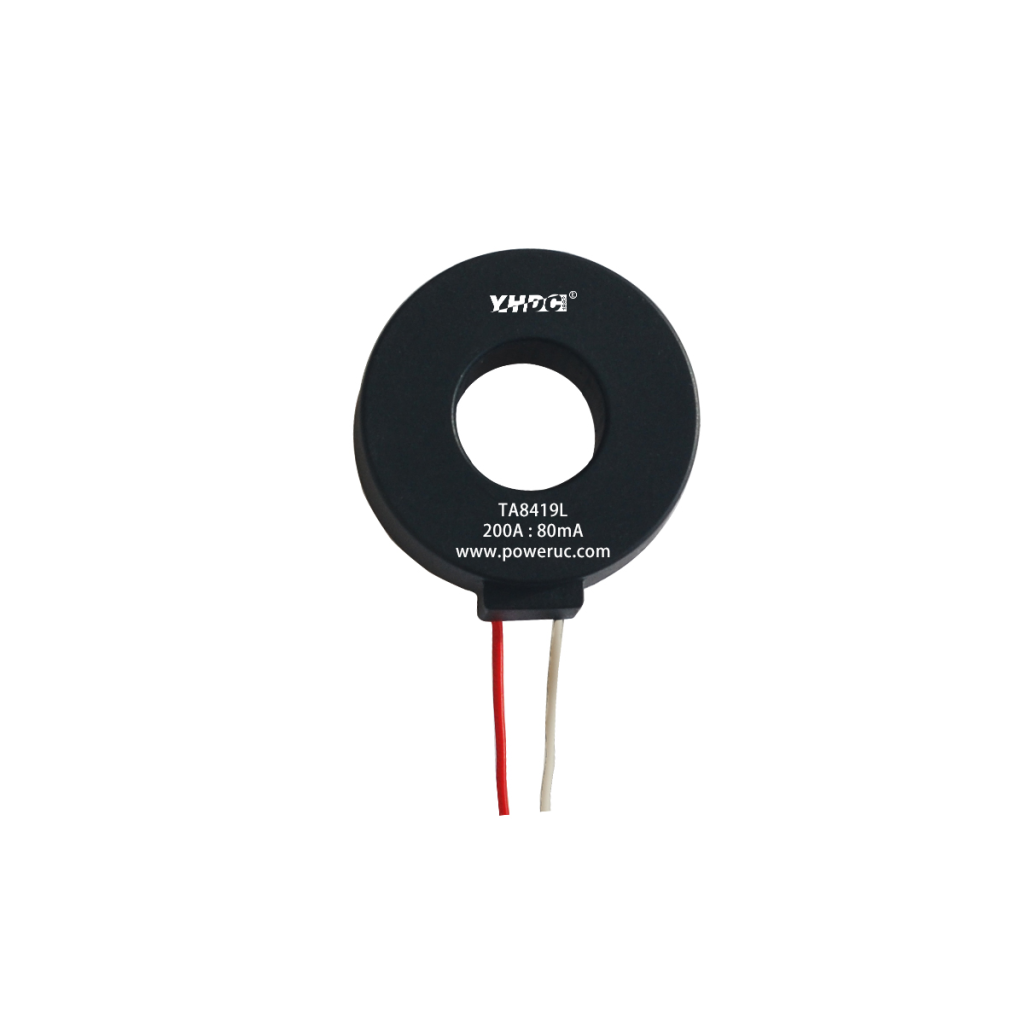

Characteristics:
Suspended mounting, high overload capacity. Electronics, electric power equipment current monitoring. Electric control system of current signal input. Phase loss monitoring. Monitoring the motor working condition.
Technical index:
Suspended mounting, output with cable
Material of the core：Silicon steel sheet
Flame resistance：UL94-V0
Execution standard：GB20840-2014
Operating temperature：-20℃～+70℃
Storage temperature：-30℃～+80℃
Frequency range: 50HZ-60Hz
Dielectric strength：6KV 50Hz 1min
| Core Type | Solid-Core |
| Core material | Laminated silicon steel |
| Mounting Type | Free Hanging(In-Line) |
| Window Diameter | Φ19mm |
| Rated Input | 50A, 100A, 200A, 300A |
| Output Type | AC |
| Rated Output | 50mA, 80mA, 0.1A |
| Dielectric Strength | 6KV 50Hz 1min |
| Frequency Range | 50Hz - 60Hz |
| Connection Type | Cable |
