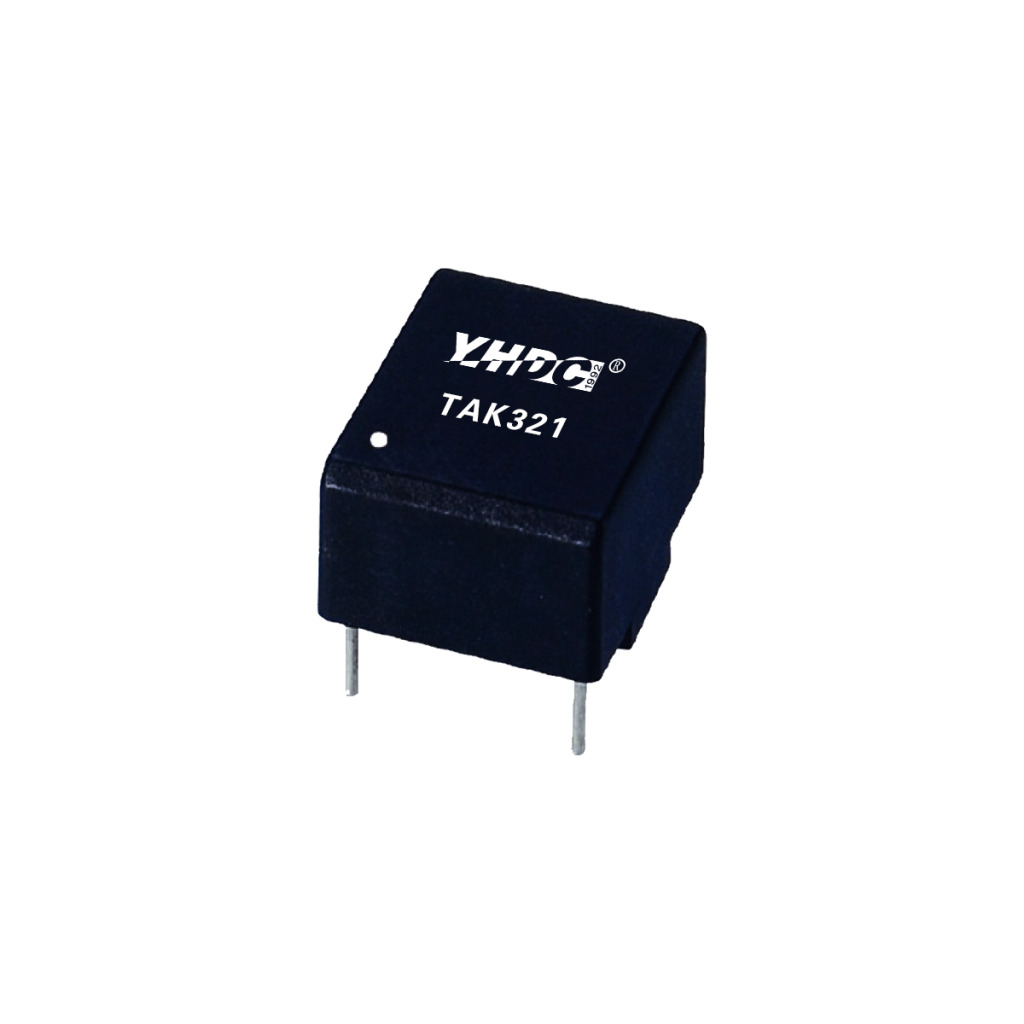

The TAK series of high frequency current transformers is specially designed for high frequency applications. It adopts a ferrite core and is potted with fully sealed epoxy resin, offering excellent mechanical properties and high insulation strength. PCB solder mount, operates over a frequency range of 2kHz to 500kHz.
Arc plasma power supply
Inverter & supersonic welding machines
IGBT Control
| Core Type | Solid-Core |
| Core material | Ferrite |
| Mounting Type | PCB |
| Rated Input | 10A |
| Output Type | AC |
| Rated Output | 0.2A, 0.1A, 50mA |
| Dielectric Strength | 3.5KV 50Hz 1min |
| Frequency Range | 2KHz - 500KHz |
| Connection Type | Pins |
