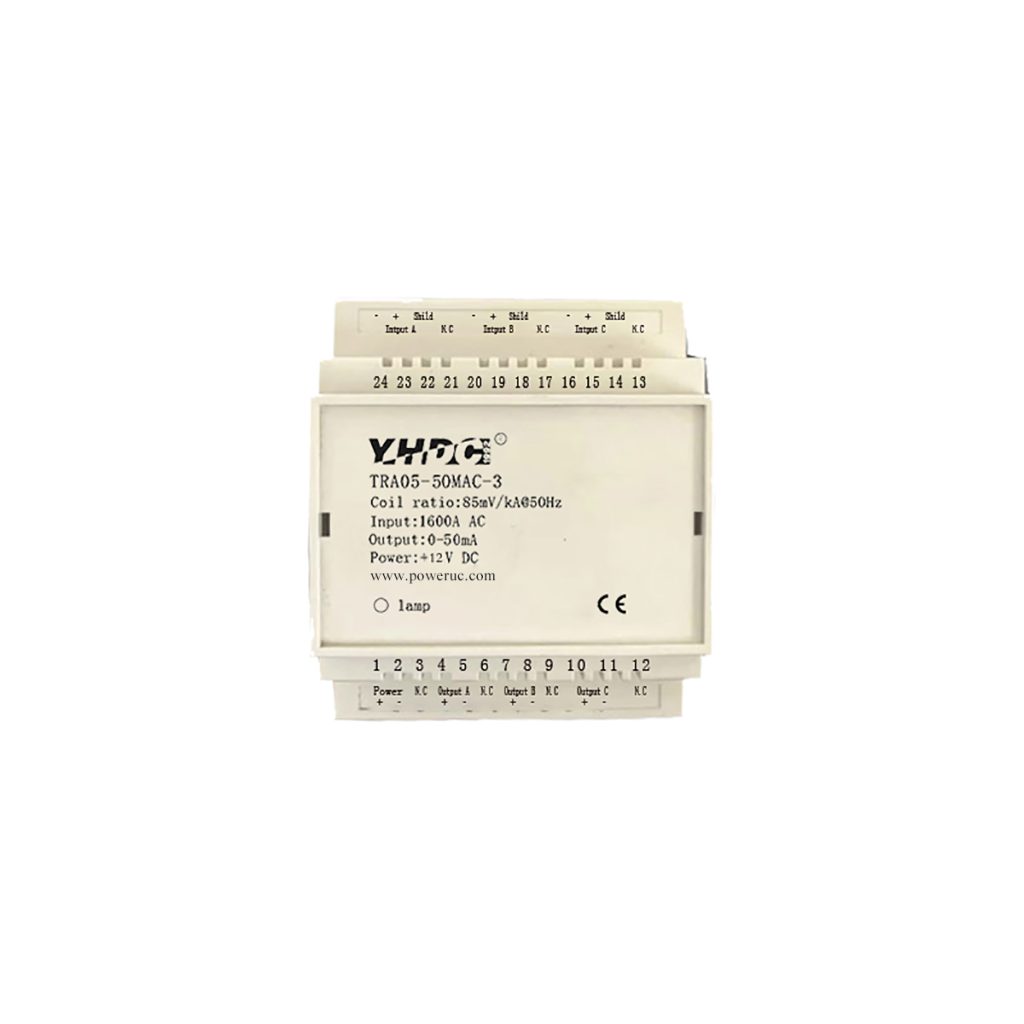

TRA05 Three-phase 1A Rogowski coil current sensor

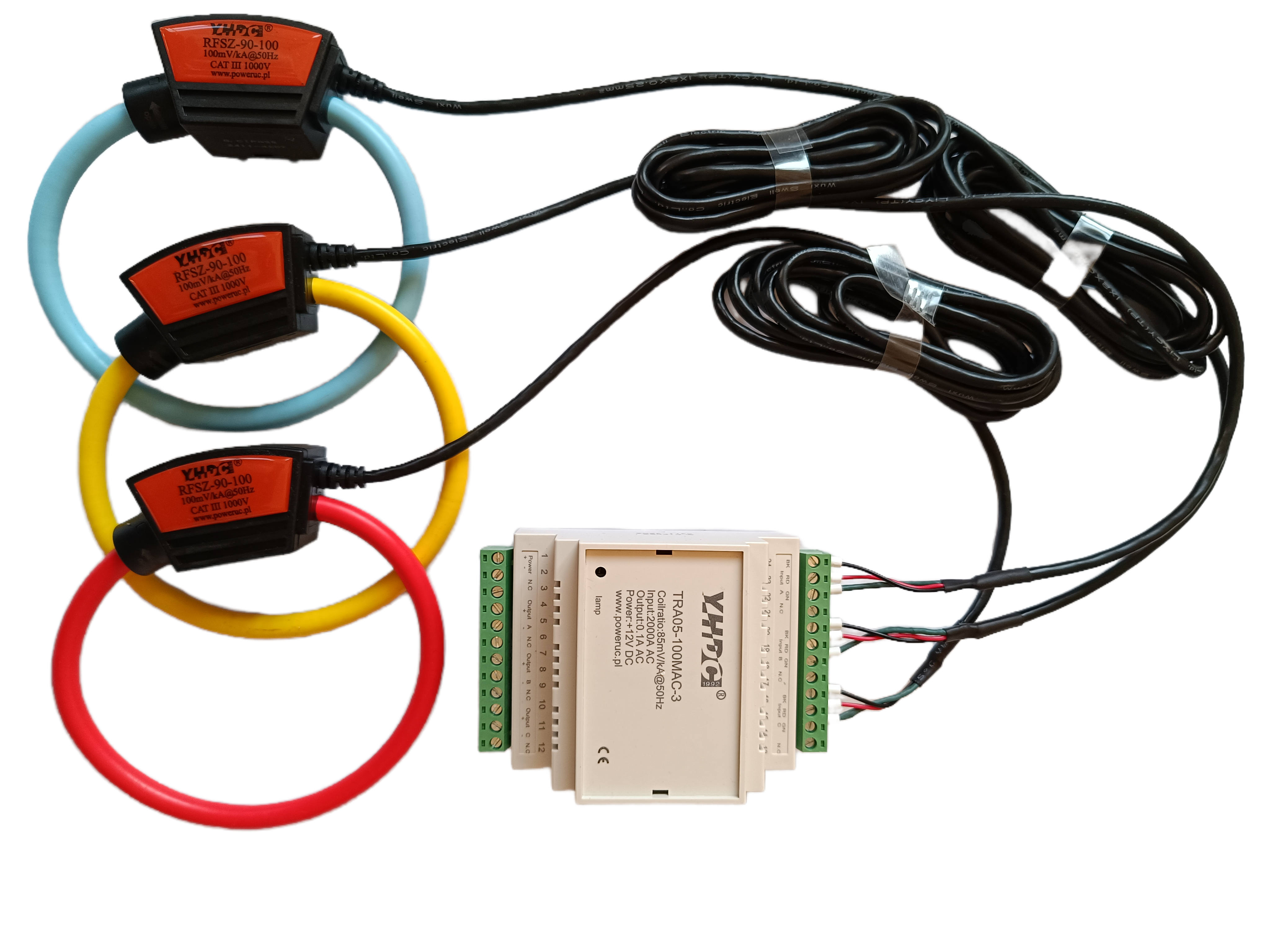

The combination of Rogowski coil and integrator can achieve 90° phase shift compensation and frequency compensation, making the output of the Rogowski coil in phase with the primary current, independent of frequency, and suitable for more application scenarios. TRA05 three-phase current integrator with Rogowski coil is a replacement for current transformer (CT), which is light, flexible and easy to install. It can output industrial standard 0-30mA, 0-50mA, 0-1A instantaneous current like CT secondary, which is proportional to the measured primary current.

Features include

• Protection Class: 5P20
• Fully isolated measurement
• Insulated plastic housing, UL94-V0
• Certified CE and RoHSIII compliant
• DIN rail mounting
• Small size

Applications:

• Arc furnace
• Protection relays
• Power Quality
• Power monitoring and control
• Applicable to electronic energy meter

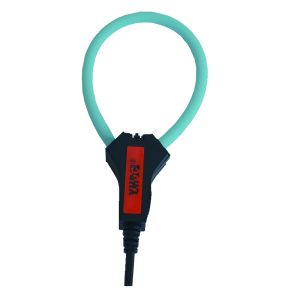

Benefits of Rogowski Coils

Rogowski Coil Current Transformers are designed for precision AC current measurement in power metering or general energy monitoring applications. The flexible Rogowski Coil provides a versatile solution for crowded electrical panels where rigid current transformers simply cannot fit. Much like split core current transformers, the user-friendly locking connector opens for easy integration into existing panels without disconnecting wires. Available in a variety of sizes to fit any application.
