TRA06 5A
TRA06
TRA06 5A
TRA06

TRA06

53.88 VAT excl.
Shipping calculated at checkout.

Overview

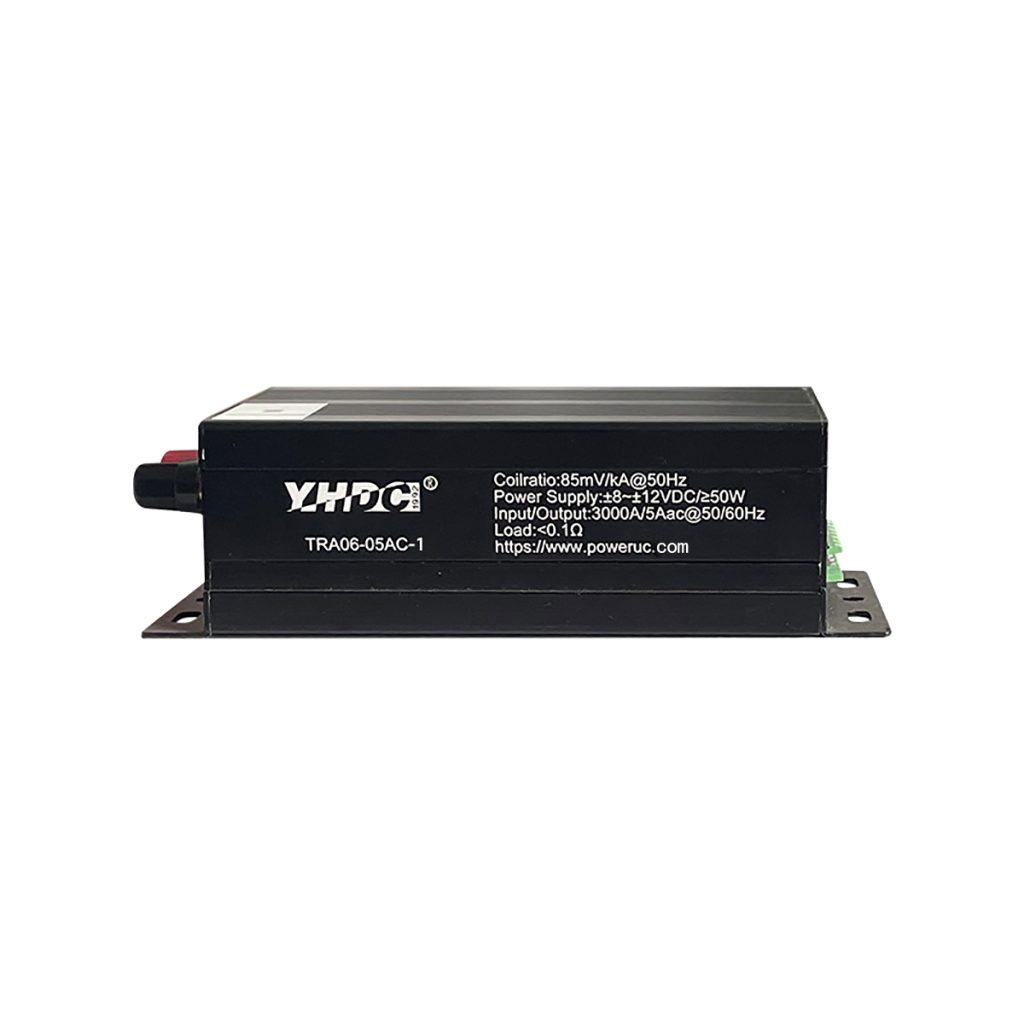

TRA06-05AC-1 5A Rogowski coil current sensor/CT

TRA06-05AC-1 Integrators can amplify and transduce the standard output from the Rogowski coil to a commonly accepted signal, such 5A. The integrator can also compensate for the Rogowski coil’s inherent 90 degree phase shift. The 5A output signal is a commonly used to monitor energy usage from a facility’s panel or through individual load circuits. It provides an easy-to-use solution for 3rd party power meters or other equipment.

Features

The rope-style current transformer flexes to fit into tight electrical panels
The 0-5A rated output is compatible with any device with a 5A nominal
current transformer input2.5A to 50,000A current sensing range accommodates nearly any application

Applications

  • Arc furnace
  • Protection relays
  • Power Quality
  • Power monitoring and control
  • Applicable to electronic energy meter

Benefits of Rogowski Coils

Rogowski Coil Current Transformers are designed for precision AC current measurement in power metering or general energy monitoring applications. The flexible Rogowski Coil provides a versatile solution for crowded electrical panels where rigid current transformers simply cannot fit. Much like split core current transformers, the user-friendly locking connector opens for easy integration into existing panels without disconnecting wires. Available in a variety of sizes to fit any application.

Product Details

Technical index
Input Range100A~10000A
Rated Output5A
Accuracy1%
Connection TypeScrew Terminal
Mounting TypePlate
