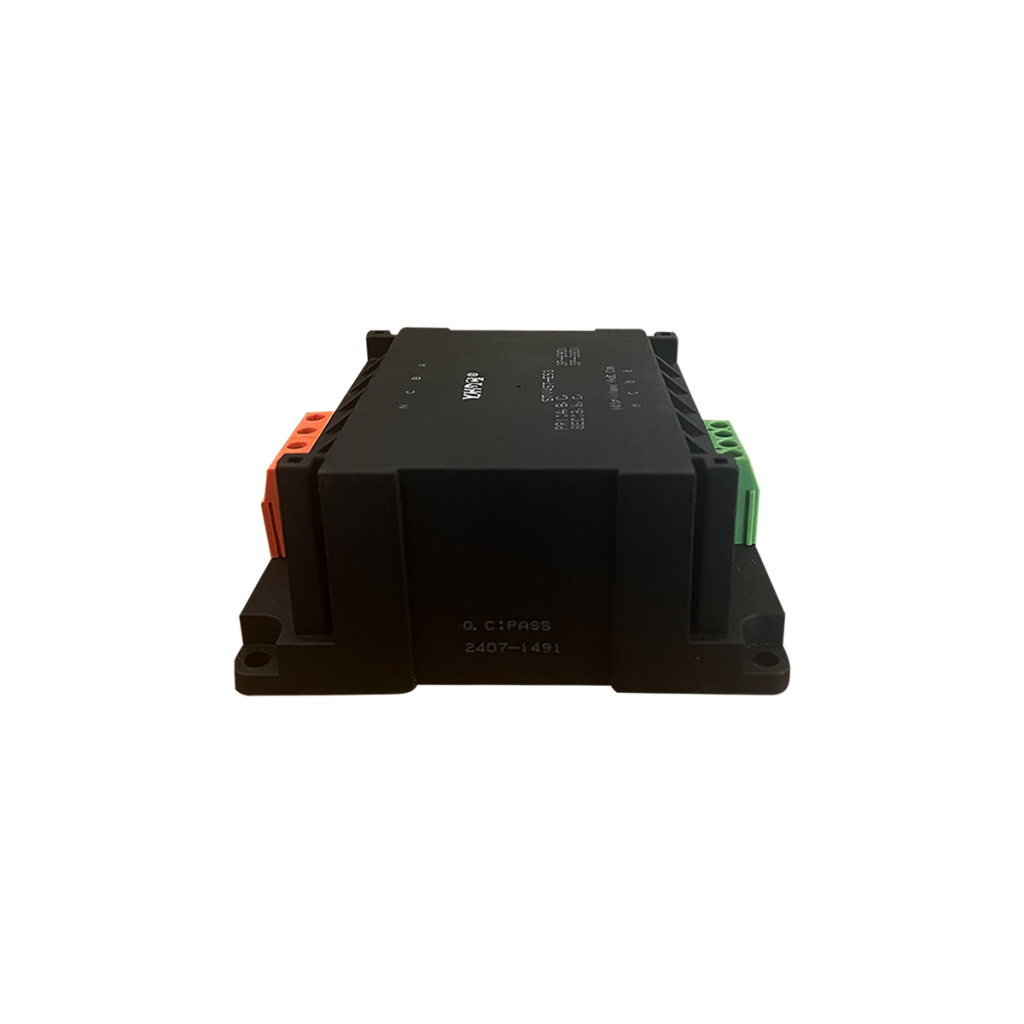

STV45T

Characteristics:

• Single crystal copper enameled wire
• High quality core – h18/0.35 (annealing)
• PBT engineering plastics, environmental protection, flame retardant, 120 degree of deformation
• Vacuum sealing, high temperature of 100 ℃ / 6 hours aging, life 20 years, high electric strength
• Reasonable structure, easy installation, low noise, strong earthquake resistance, airtight and waterproof

Technical Index:

• Technical Index：Plate installation
• Flame resistance ：UL94-V0
• Insulation class：B
• Operation temperature：-30℃～+70℃
• Work frequency：50Hz～60Hz
• Dielectric strength：Formal test: primary/secondary 3.5KV AC/1min 5mA

Factory test: primary/secondary 3.5KVmax AC/1s 5mA
