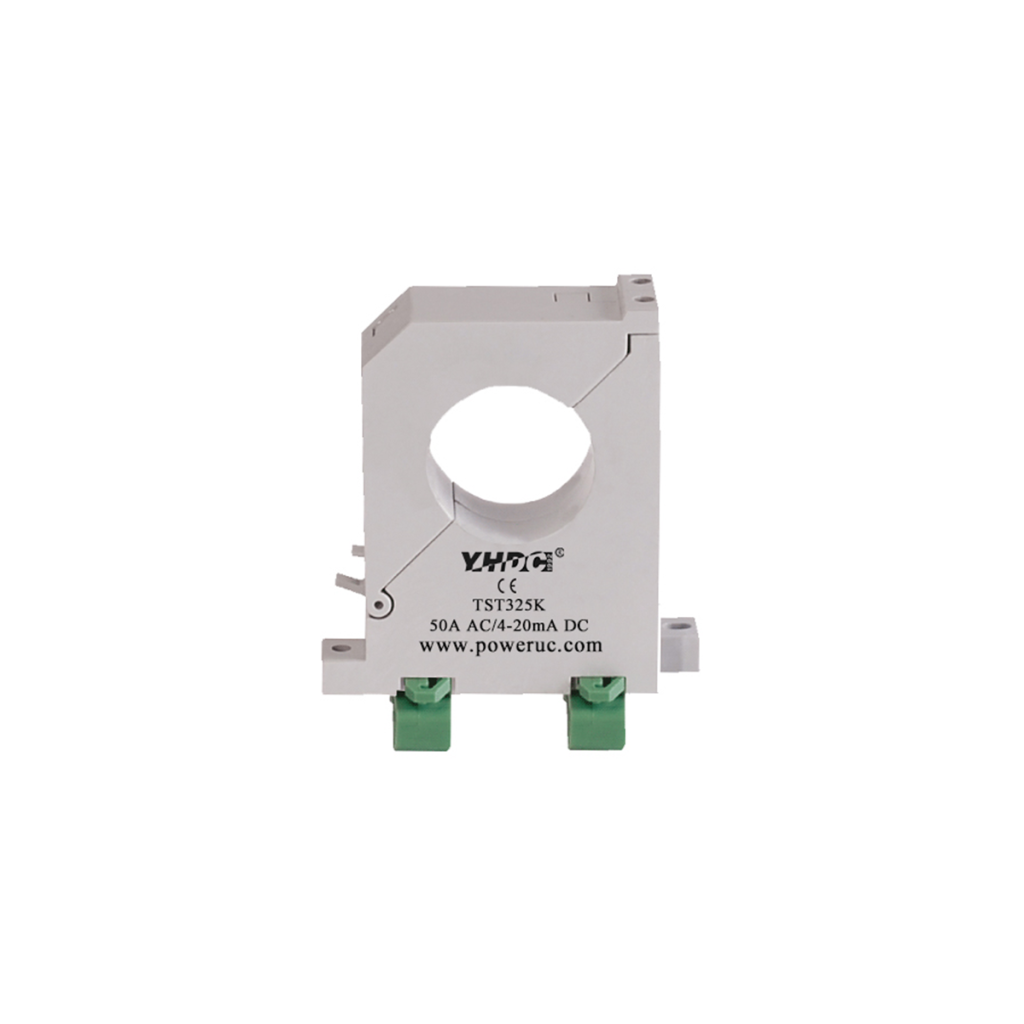

Split core, Din-rail or sub-plate mount，terminal output. Detect AC current. High insulation between primary and secondary circuits.
Fair resistance： with UL94-V0
Operating temperature：-10℃～+70℃
Storage temperature：-25℃～+70℃
Delectric strength：2.5KV 50Hz 1min
| Core Type | Split-Core |
| Input Type | AC |
| Output Type | RMS |
| Rated Input Current (RMS) | 20A, 50A |
| Rated Output | 0-20mA, 4-20mA,0-5V,1-5V,0-10V |
| Accuracy | 0.5% |
| Power Supply Voltage | 12V, 24V |
| Connection Type | Screw Terminal |
| Mounting Type | DIN-rail, Plate |
