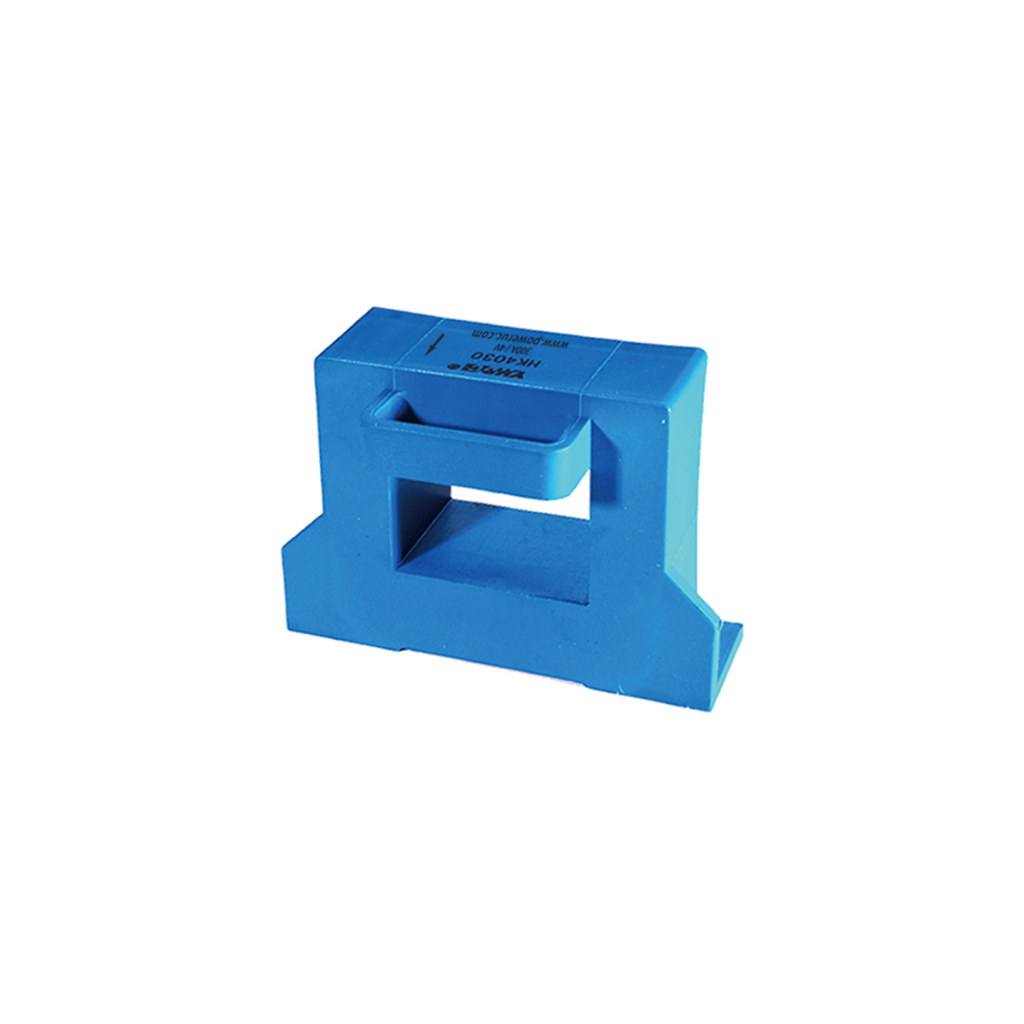

The HK4030 product family is composed of open loop hall effect current sensors used for the current measurement of the DC, AC, and pulse with galvanic separation between the primary circuit and the secondary circuit.
They benefit from instantaneous voltage output of ±4V and 2.5±0.625V, bipolar power supply of ±15 V and Single supply +5V， bandwidth of DC 25 kHz. HK4030 current sensors are to be mounted on panels.
Open loop current sensor using the Hall effect measuring principle
Insulating plastic case recognized according to UL 94-V0
Easy installation
Low power consumption
Small size and space saving
Only one design for wide current ratings range
High immunity to external interference
AC variable speed drives and servo motor drives
Static converters for DC motor drives
Battery supplied applications
Uninterruptible Power Supplies (UPS)
Switched Mode Power Supplies (SMPS)
Power supplies for welding applications
| Core Type | Solid-Core |
| Input Type | AC, DC |
| Output Type | Instantaneous |
| Rated Input Current (RMS) | 200A-1500A |
| Rated Output | ±4V |
| Accuracy | 1% |
| Power Supply Voltage | ±12V, ±15V |
| Connection Type | Quick plug |
| Mounting Type | Plate |
