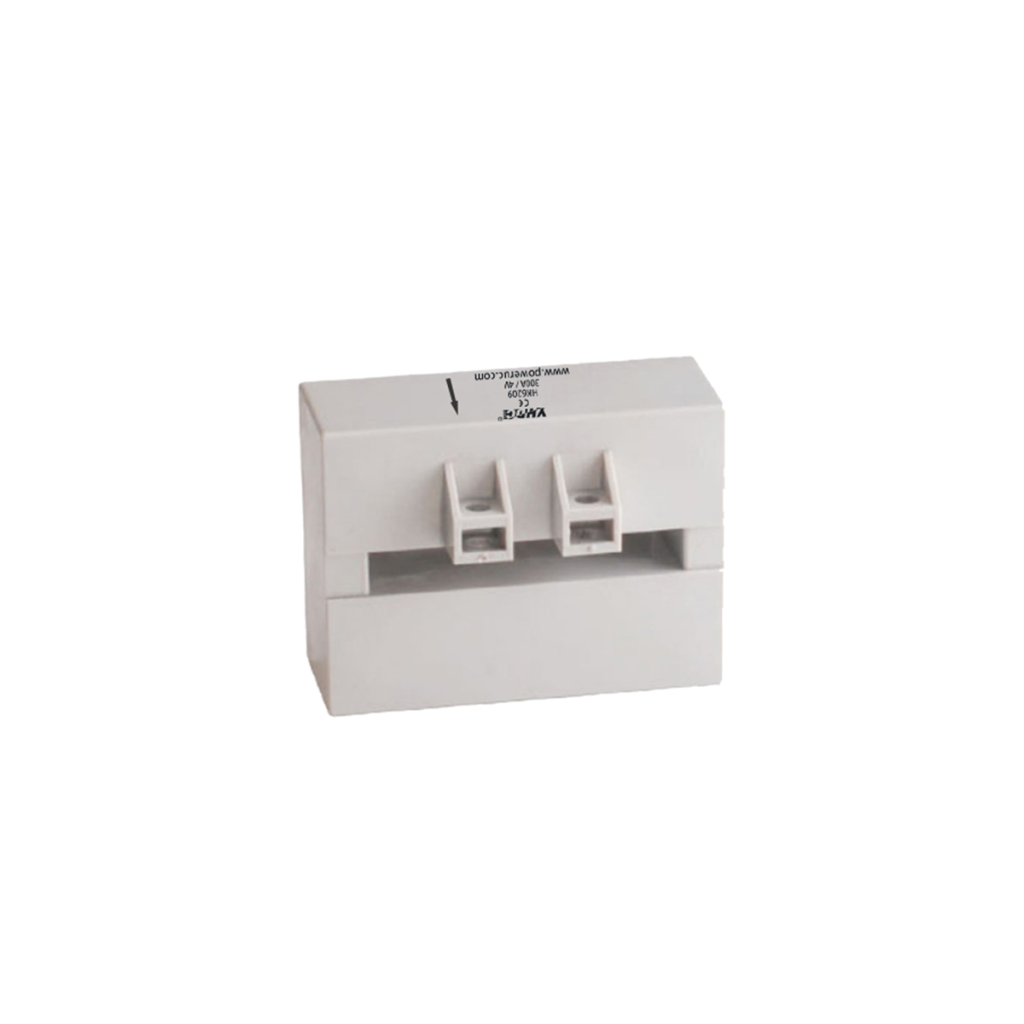

Open Loop Hall effect current transducer HK6209 800A ±4V YHDC
HK6209
HK6209

HK6209

VAT excl.
Shipping calculated at checkout.

This product is currently out of stock and unavailable.

Overview

The HK6029 product family is composed of open loop hall effect current sensors used for the current measurement of the DC, AC, and pulse with galvanic separation between the primary circuit and the secondary circuit.

They benefit from instantaneous voltage output of ±4V and 2.5±0.625V, bipolar power supply of ±15 V and Single supply +5V, bandwidth of DC 25 kHz. HK6029 current sensors are to be mounted on panels.

Introduce

Open loop current sensor using the Hall effect measuring principle
Insulating plastic case recognized according to UL 94-V0

Features

Easy installation
Low power consumption
Small size and space saving
Only one design for wide current ratings range
High immunity to external interference

Applications

AC variable speed drives and servo motor drives
Static converters for DC motor drives
Battery supplied applications
Uninterruptible Power Supplies (UPS)
Switched Mode Power Supplies (SMPS)
Power supplies for welding applications

Product Details

Technical index
Core TypeSolid-Core
Input TypeAC, DC
Output TypeInstantaneous
Rated Input Current (RMS)200A-800A
Rated Output±4V
Accuracy1%
Power Supply Voltage±12V, ±15V
Connection TypeQuick plug
Mounting TypePlate
