The HK(S)16 current sensors facilitate the measurement of DC, AC, and pulsed currents within the range of 50 A to 400 ARMS nominal, ensuring galvanic separation between the primary and secondary circuits.
This sensor family comprises seven distinct models, all sharing a compact design to be mounted on a PCB within a mere 4.3 cm² area (with a height of 34 mm) and featuring a 16 mm diameter aperture. They provide voltage output and operate on a dual supply of ±12 to ±15 V and +5V.

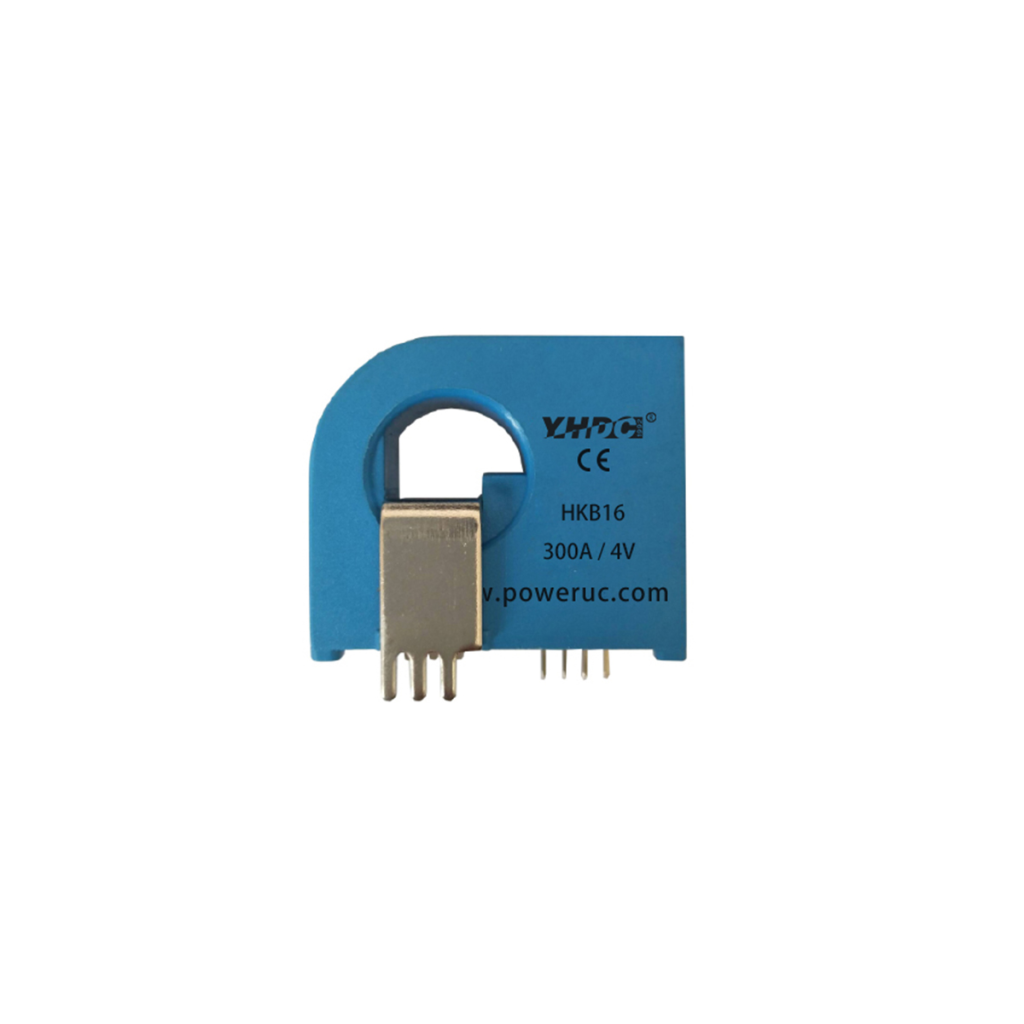

The HKB(S)16 electronic components in this product family are equipped with a primary busbar.
The HK(S)16 current sensors employ open-loop Hall effect technology, making them well-suited for various industrial applications.
Hall effect measuring principle
Galvanic separation between primary and secondary circuit
Insulation voltage 2500 V
Low power consumption
Wide power supply ±12 … 15 V/+5V
Insulating plastic case recognized according to UL 94-V0
The HKB(S)16 series incorporates a primary busbar
Small size and space saving
Only one design for wide current rating range
High immunity to external interference
AC variable speed drives and servo motor drives
Static converters for DC motor drives
Battery supplied applications
Uninterruptible Power Supplies (UPS)
Switched Mode Power Supplies (SMPS)
Power supplies for welding applications
| Core Type | Solid-Core |
| Input Type | AC, DC |
| Output Type | Instantaneous |
| Rated Input Current (RMS) | 50A-400A |
| Rated Output | ±4V |
| Accuracy | 1% |
| Power Supply Voltage | ±12V, ±15V |
| Connection Type | Pins |
| Mounting Type | PCB |
