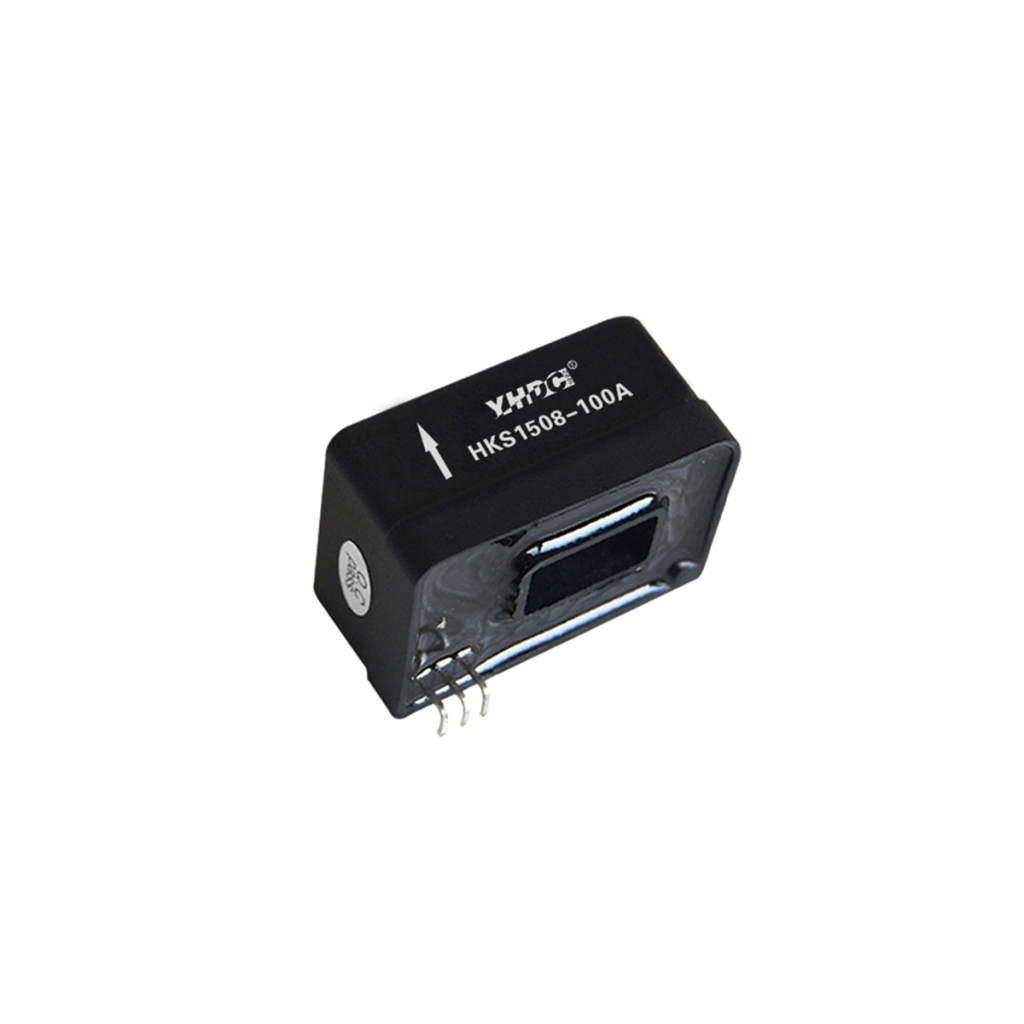

HKS1508 is a Open Loop Hall effect current transducer. the measurement of DC, AC, and pulsed currents within the range of 50 A to 600 ARMS nominal, ensuring galvanic separation between the primary and secondary circuits. Single supply +5V.
Hall effect measuring principle
Galvanic separation between primary and secondary circuit
Insulation voltage 2500 V
Low power consumption
power supply +5V
Insulating plastic case recognized according to UL 94-V0
Easy mounting
Low power consumption
Small size and space saving
Only one design for wide current ratings range
High immunity to external interference.
AC variable speed drives and servo motor drives
Static converters for DC motor drives
Battery supplied applications
Uninterruptible Power Supplies (UPS)
Switched Mode Power Supplies (SMPS)
Power supplies for welding applications
| Core Type | Solid-Core |
| Input Type | AC, DC |
| Output Type | Instantaneous |
| Rated Input Current (RMS) | 50A-600A |
| Rated Output | 2.5±1.5V |
| Accuracy | 1% |
| Power Supply Voltage | 5V |
| Connection Type | Pins |
| Mounting Type | PCB |
