Split‑core Hall effect sensor for AC and DC current measurement from 10A to 200A with ratiometric voltage output. Suitable for embedded and monitoring systems.

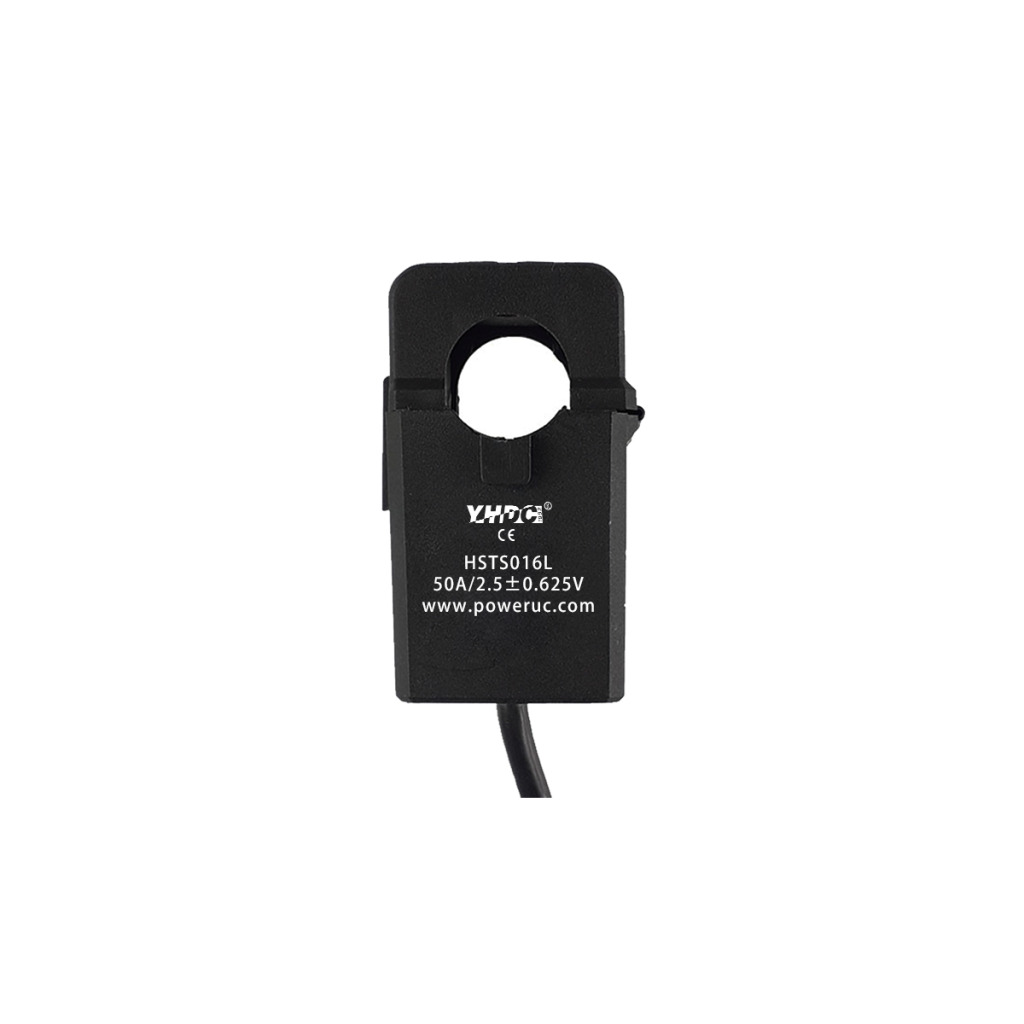

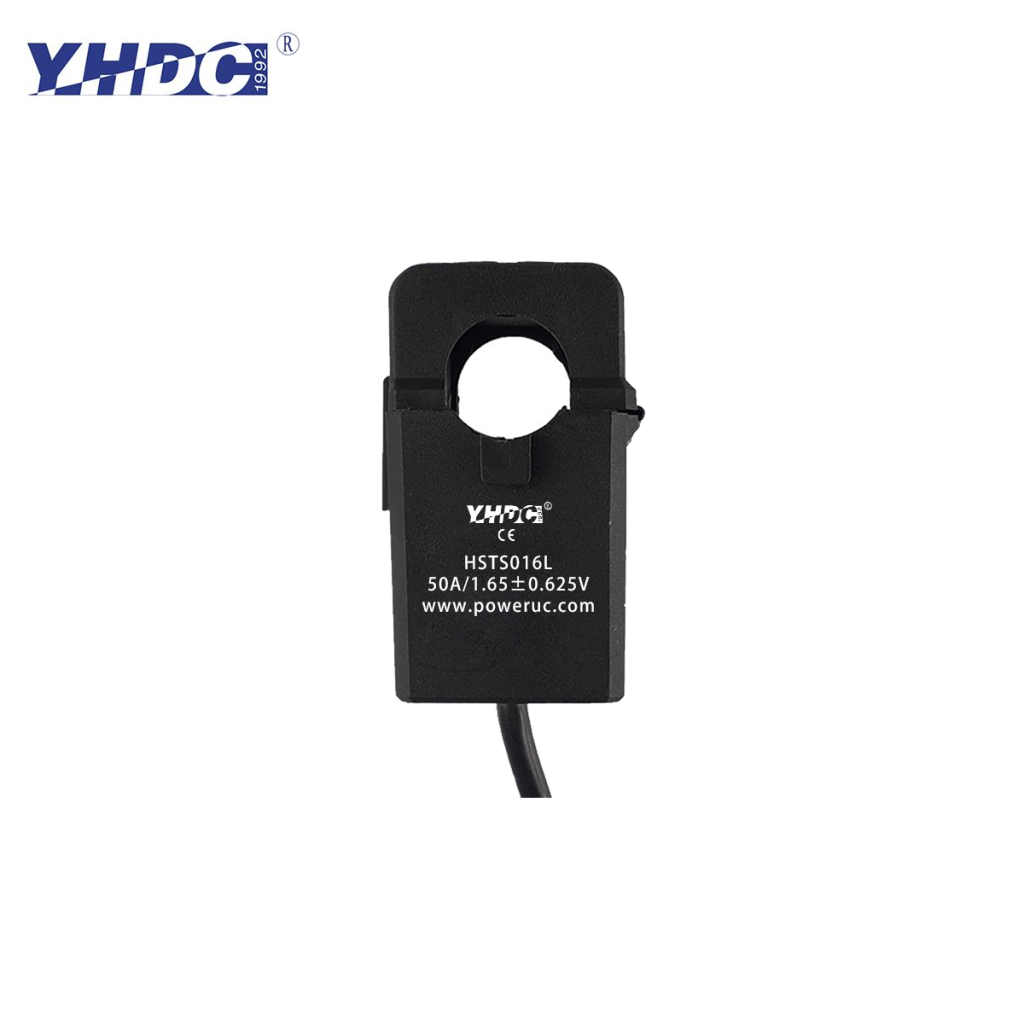

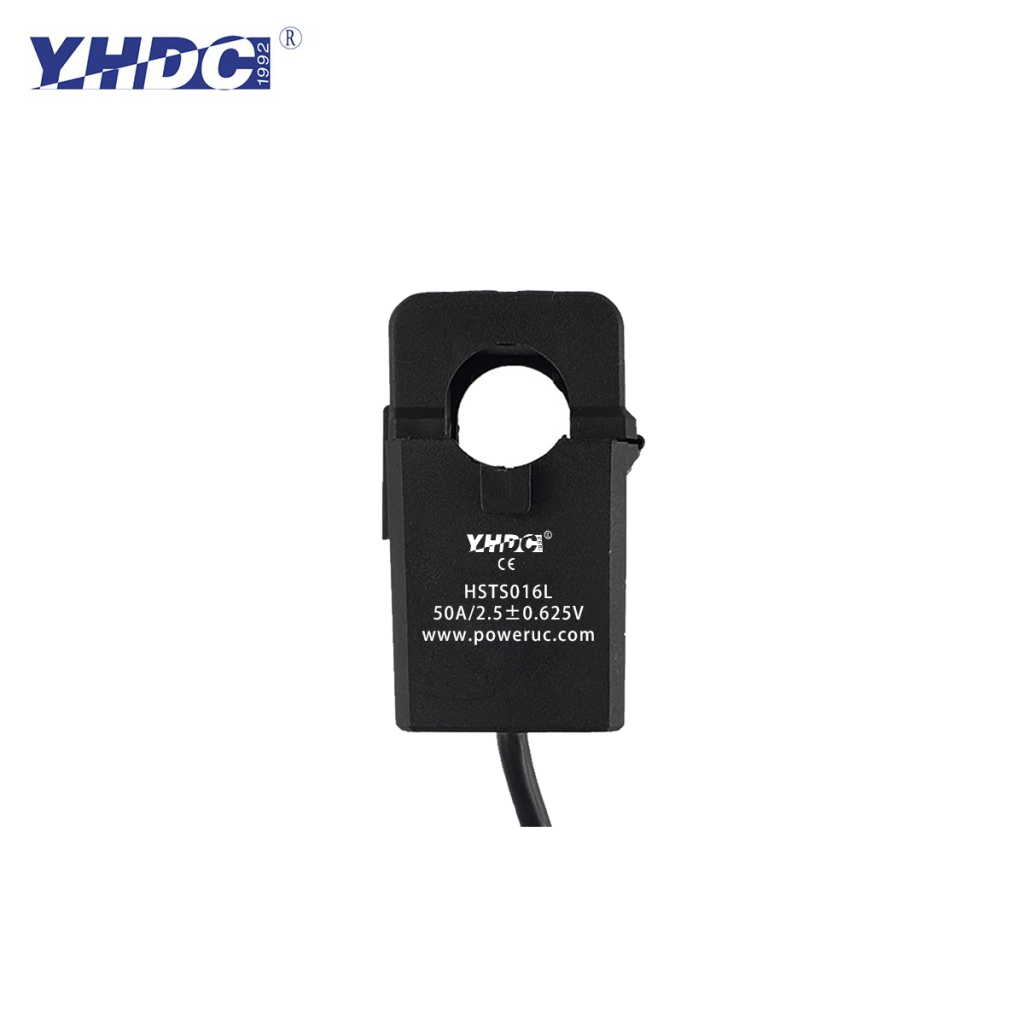

HSTS016L DC/AC Split-core current sensor, applying with accurate laminating split-core technology and Open-Loop technology, has a strong durability and a good stability of error in low current and external vibration or shock.
It offers an instantaneous voltage output of ±4V(with dual-supply) or 2.5±2V or 2.5±0.625V(with single-supply), with power supply voltage of ±15V(dual-supply version) or 5V(single-supply version).
One touch split core structure
Isolation measurement CATIII
Insulating plastic case recognized under UL94-V0
Complied with CE and RoHSIII
Low power consumption with high accuracy
Easy mounting by Split-core structure
No insertion losses
Uninterruptible Power Supplies (UPS)
Monitoring and measuring Power supplies for Telecom
Switched Mode Power Supplies (SMPS)
Battery supplied applications
Chopper / Inverter monitoring
DC Power Meter
| Core Type | Split-Core |
| Input Type | AC, DC |
| Output Type | Instantaneous |
| Rated Input Current (RMS) | 10A-200A |
| Rated Output | 1.65V±0.625V, 2.5V±0.625V, 2.5V±2V |
| Accuracy | 1% |
| Power Supply Voltage | 3.3V, 5V |
| Connection Type | Cable |
| Mounting Type | Free Hanging(In-Line), Plate |
