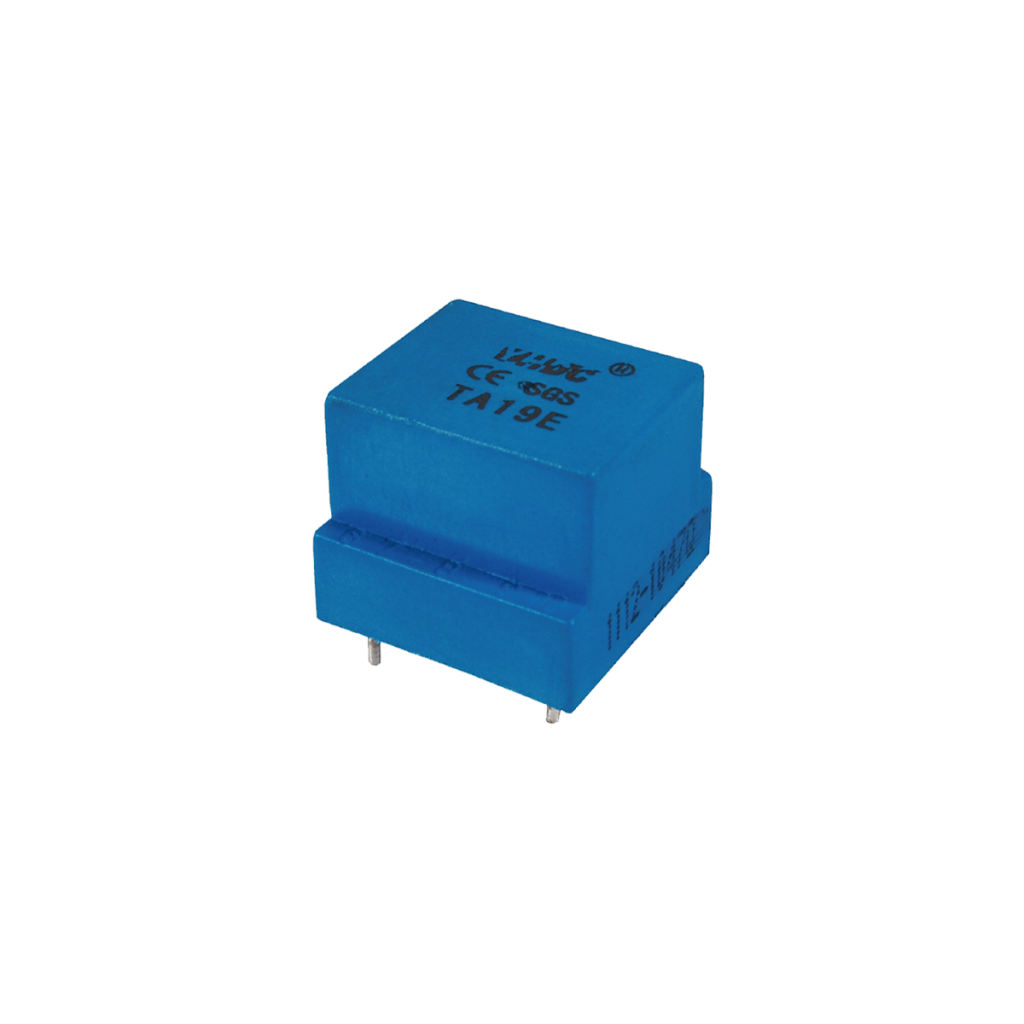

The precision current transformers features a fully encapsulated permolly magnetic core with epoxy resin potting, PCB solder mount with integral primary conductor, offering excellent mechanical properties and high insulation strength. It has a linearity of better than 0.1% and operates over a frequency range of 20Hz to 20KHz.
Industrial meters
Substation MV/ LV feeder monitoring
Data Logger in Digital Fault Recorders
Inverter controlling
Power quality analyzer
HEMS(Home Energy Management System) / BEMS(Building Energy Management System)/ FEMS(Factory Energy Management System)
EV charge stand / cable
| Core Type | Solid-Core |
| Core material | Permalloy |
| Mounting Type | PCB |
| Rated Input | 0.5A, 2.5A, 5A, 1A |
| Output Type | AC |
| Rated Output | 1.25mA, 2.5mA, 1.5mA, 1.67mA |
| Dielectric Strength | 2KV 50Hz 1min |
| Frequency Range | 20Hz - 20KHz |
| Connection Type | Pins |
