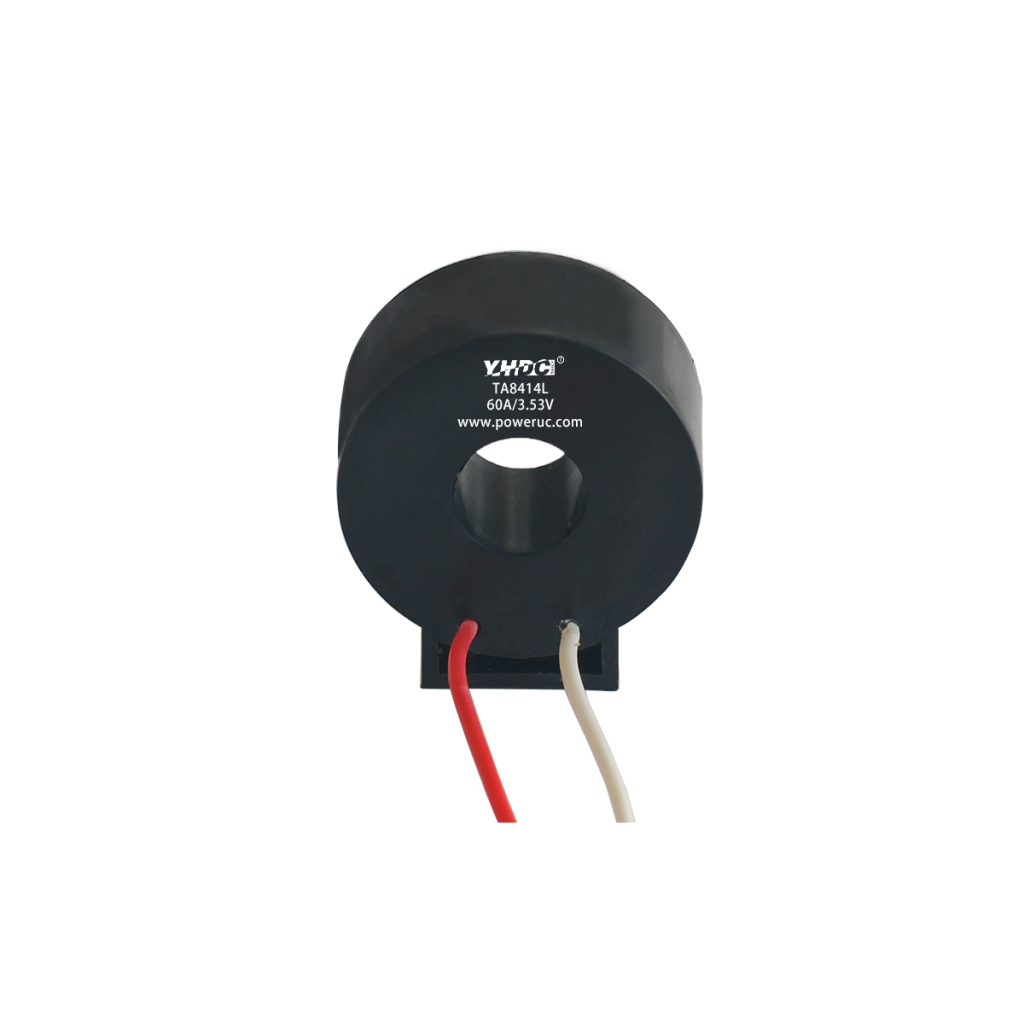

The precision current transformers features a fully encapsulated nanocrystalline magnetic core with epoxy resin encapsulation, providing excellent mechanical properties and high insulation strength. It has a linearity of better than 0.2% and operates over a frequency range of 20Hz to 20KHz.
Industrial meters
Substation MV/ LV feeder monitoring
Data Logger in Digital Fault Recorders
Inverter controlling
Power quality analyzer
HEMS(Home Energy Management System) / BEMS(Building Energy Management System)/ FEMS(Factory Energy Management System)
EV charge stand / cable
| Core Type | Solid-Core |
| Core material | Nanocrystalline |
| Mounting Type | Free Hanging(In-Line) |
| Size of the opening | Φ12.9mm |
| Rated Input | 30A, 45A, 60A, 100A |
| Output Type | AC |
| Rated Output | 3.53V, 0.1A, 50mA, 33.3mA |
| Dielectric Strength | 5KV 50Hz 1min |
| Frequency Range | 20Hz - 20KHz |
| Connection Type | Cable |
